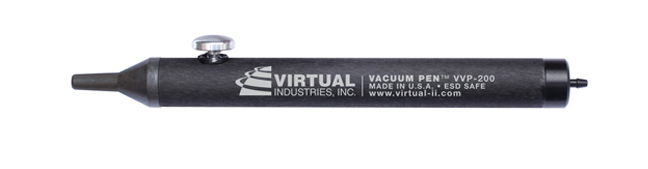

VVP-200-1/8 Virtual Industries Vacuum Pen Standard Push Button ESD Safe

List price: $89.80
$80.88
You save: $8.92 (10%)
V8901-LMS-B
+

VVP-200-1/8 Virtual Industries Vacuum Pen Standard Push Button ESD Safe sold by Howard Electronics

Virtual Industries BBP-22-1/8 1/8” (3.18mm) ID hose barb.

Virtual Industries BBP-22-1/8 Lightweight aluminum 1/2” diameter handle for vacuum handling systems. This new vacuum pen allows you to immediately pick up a part by touching the vacuum tip to the surface of the part. A slight press of the button releases the part. The unique design eliminates internal O-rings for years of maintenance free operation. Available for 1/16” or 1/8” ID diameter vacuum hose. 5 1/4” (133.35mm) long, 1/2” (12.70mm) diameter.

The Virtual Industries BBP-22-1/8 PEN-VAC is totally self-contained. There are no batteries or hoses to get in the way. Operation is as follows:

1. Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part you want to pick and place. Put the probe snuggly on the tip of the vacuum pen. Make sure that there is no dust on the rubber vacuum tip. NOTE: Our larger rubber vacuum cups can be placed directly on the vacuum pen tip without using a probe.

2. Depress AND hold the button on the side of the tool.

3. Touch the vacuum tip squarely to the part and release the button. The part is now grasped.

4. Move the part to where you want it and depress the button again. The part is now released.

NOTE: This tool works only with the rubber vacuum tips. The rubber is required for an air-tight seal.

Purchase a Virtual Industries Virtual Industries BBP-22-1/8 Today.
