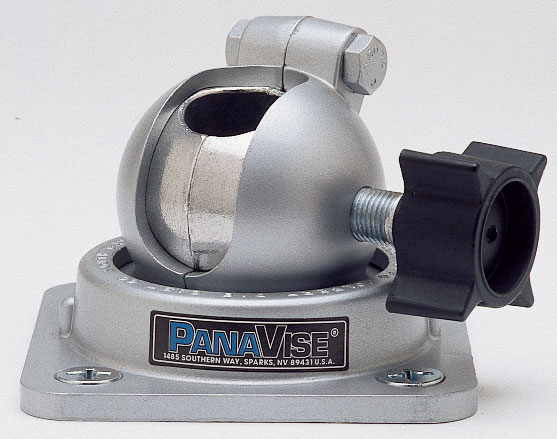

Panavise 400 Heavy Duty Base sold by Howard Electronics
Model: 400 Heavy Duty Base
For heavy duty projects requiring added holding power!
Accepts any 1" (25.4mm) diameter shaft. Recent engineering changes all the 400 base to hold up to 75lbs (34.0kg) at 45 degrees.
• Allows the 400 Base to support weights up to 75 lbs. (34.0kg) at 45"
• Recommended for use with the 437 Heavy Duty Fixturing Head
• Accepts any 1" (25.4mm) diameter shaft to a depth of 1.7" (43.2mm)
• Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
• Square base [4.125"x 4.125" (104.8mm x 104.8mm)] has four 0.3125" (7.9mm) mounting holes (mounting screws not included)
• A hole is provided in the bottom of the base for a 1/4-20 flat head screw to permanently attach any shaft
• Height: 3.25" (82.5mm), Weight: 1.5 lbs. (0.7kg)
Purchase a Panavise 400 Heavy Duty Base Today.
