Auburn Technology P-20B 12Ghz RF Probe sold by Howard Electronics
Auburn Technology P-20B RF Probe is a High frequency RF measurements with your Spectrum Analyzer or Service Monitor have become very easy and inexpensive with the RF Probe from Auburn Technology. Compare to any other RF Probe on the market and you will choose the P-2AC0B for
Durability, Ease of use, Light Loading to circuit under test, and Low Distortion
Auburn P-20B 12GHz RF PROBE ( P20B )

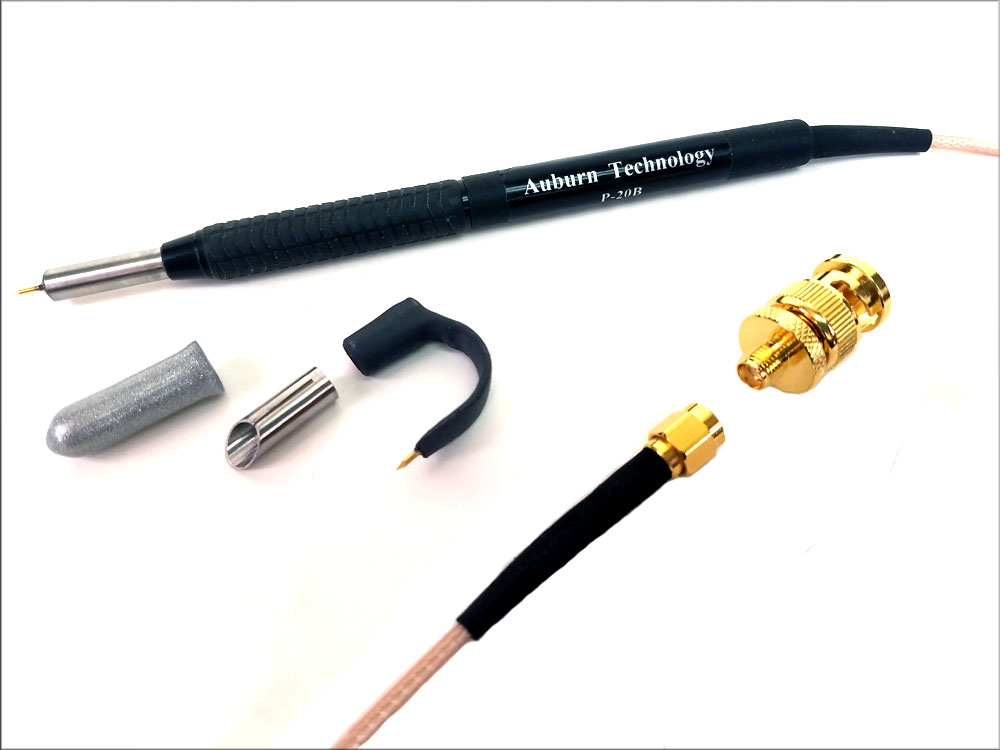

The Auburn P-20B is a PASSIVE 10:1 RF VOLTAGE RF PROBE with a 50 Volt DC BLOCK built in. It has been designed to allow users of RF test equipment to use standard signal tracing techniques. The P-20B makes it possible to conveniently and accurately monitor or inject signals up to 12 GHz into RF circuits without significantly loading or detuning them. The P-20B comes with Interchangeable Ground Clips that adapt to a wide range of applications.
P-20B Auburn Technologies RF Probe Includes replacement tip P20AL.
Auburn Technologies P-20B 12Ghz RF Probe

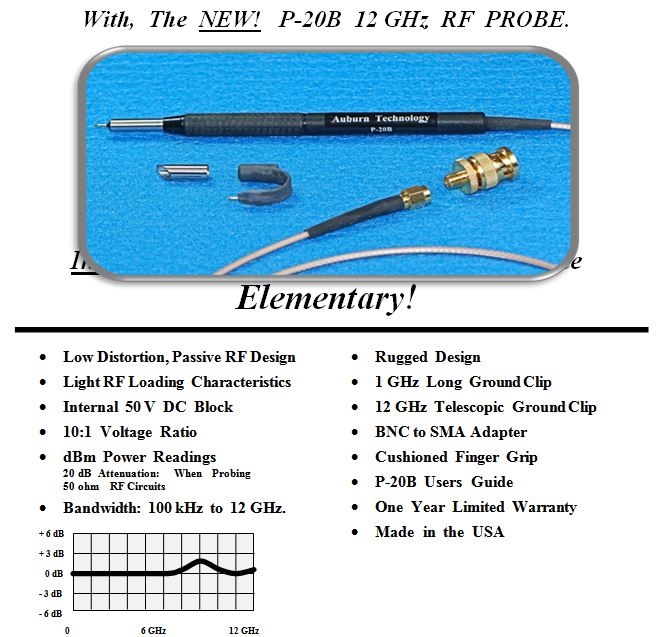

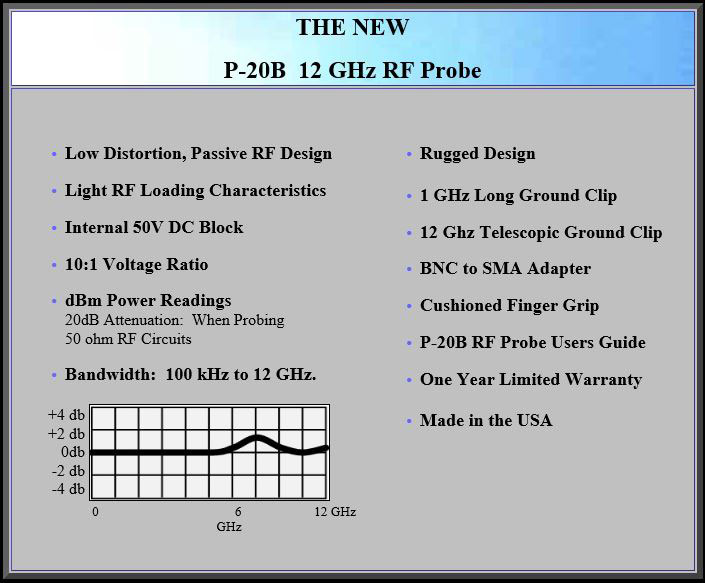

|Low Distortion, Passive RF Design||Internal DC Block|
|Light RF Loading Characteristics||Interchangeable Ground Clips|
|10:1 Voltage Ratio (20db Attenuation) When Probing 50 ohm RF Circuits||Center Pin Extender|
|Bandwidth: 100 KHz to 12GHz.||Users Guide|
|Made in America (Designed by an Engineer from IFR Systems)||Designed for Durability and high performance|
Purchase an Auburn Technology P-20B 12Ghz RF Probe Today.
