CD-1SQF JBC Tools Precision Soldering Station (Cartridge C210-001 Included FREE by HeI)

Cartridge
C210-001
Included Free

JBC Stations will now be supplied
without cartridges with the purpose
of allowing the user to choose the
cartridges that best suits their needs
with the exception of this station which
we are giving FREE one C210-001 Cartridge.

List price: $505.00
$454.50
You save: $50.50 (10%)
CD-1SQF
+

CD-1SQF JBC Tools (Cartridge C210-001 Included FREE by HeI) is the NEWEST 120V Compact Series Soldering Station. The JBC CD-1SQF has new functions and features that will make your soldering job easier than ever before. The CD-1SQF station will be supplied with one FREE Cartridge from HEI with the purpose of allowing the user to choose other cartridges that best suit their needs. The CD-1SQF has many more cartridges that can be purchased from the C210 Cartridge tab above.

CD-1SQE JBC Tools Lead Free Soldering Station

CD-1SQF JBC Tools Soldering Station works with the JBC Tools exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. It features a USB connector to update software, create graphs and manage parameters from a PC. CD-1SQE works with the lightest and ergonomic T210 Handpiece and the C210 cartridges.

JBC Tools CD-1SQF Soldering Station for precision electronic applications.

JBC Tools CD-1SQF soldering station models are a basic level soldering station that was designed for the everyday user.

JBC Tools CD-1SQF soldering station includes: T210-A handpiece.

JBC Tools CD-1SQF Soldering Station comes with:

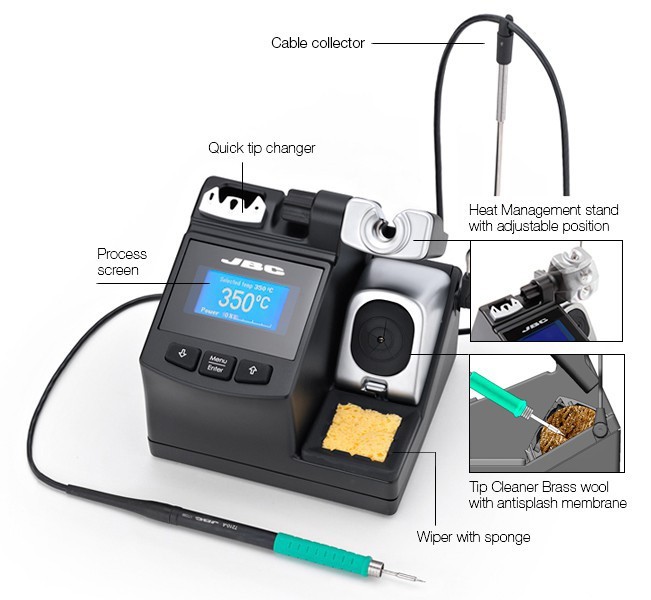

Control Unit: CD-1SQF with tip cleaning system

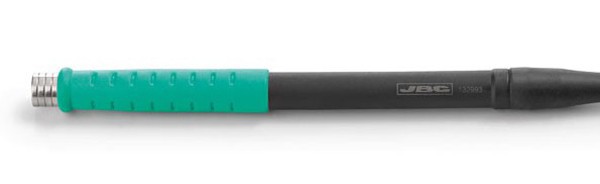

Tools: T210-A soldering handpiece
Cartridges: (Cartridge C210-001 Included FREE by HeI)

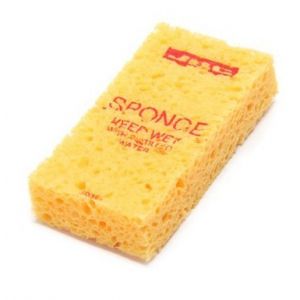

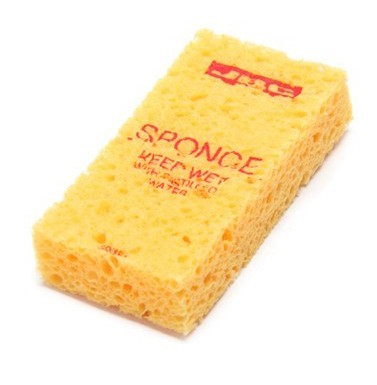

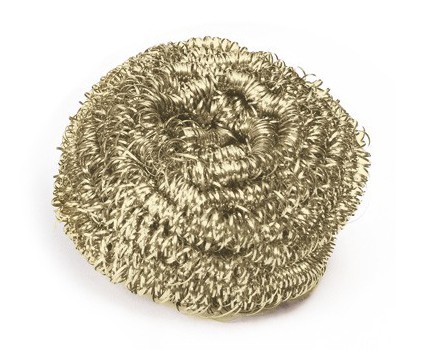

Consumables: S0354 Sponge, Cl6210 Brass Wool

Click here for more than 30 cartridges of the C210 range of different geometries are available.

CD-1SQF JBC Tools Soldering Station Specifications:

Weight: 2.6 kg (5.7 lb)
Size: 150 x 175 x 145 mm
Voltage (AC): 120V
Input Fuse: 2A
Output Peak Power: 130W / 23.5 V
Temperature Selection: 90-450 C / 190-840 F
Tip to Ground Resistance: <2 ohms
Tip to Ground Voltage: <2mV RMS
Ambient Operating Temp.: 10-40 C / 50-104 F
Package Dimensions: 235x235x260mm

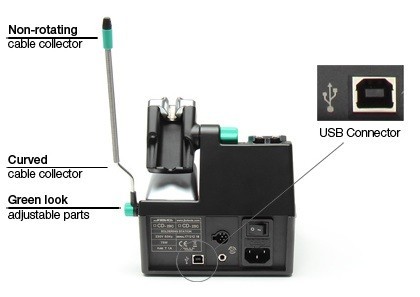

USB Input Port
ESD Safe

Don't want to choose a tip, Click here to purchase a CD-1SF Soldering Station with 2 Tips

Purchase a JBC Tools CD-1SQF Soldering Station sold by Howard Electronics Today!

Vendors :
JBC Tools
Weight:
2.6 kg / 5.5 lb
Shipping Weight:
3 kg (6.6 lb)
Input Fuse:
2A
Output Peak Power:
40W / 23.5V
Temperature Selection:
90-450 ºC (190-840 ºF)
Ambient operating temp.:
10-40 ºC (50-104 ºF)
T210-A
$74.00

T210-A JBC Precision Micro Handpiece

+

T210-PA
$74.00

T210-PA JBC Tools Precision Micro Handpiece with Blue Grip

+
C210-001
$44.00 $39.60

C210-001 JBC Tools 0.3mm Conical Soldering Tip Cartridge

+

C210-002
$44.00 $39.60

C210002 JBC Tools Soldering Conical Cartridge Bent Ø 0.2mm Tip

+

C210-003
$44.00 $39.60

C210003 JBC Tools Soldering Conical Cartridge Tip 0.6mm x 4.5mm

+

C210-004
$44.00 $39.60

C210004 JBC Tools Bent Soldering Conical Cartridge Tip 0.7mm x 5.5mm

+

C210-015
$62.00 $55.80

C210-015 JBC Inside Connector Soldering Cartridge

+

C210-016
$44.00 $39.60

C210016 JBC Tools Soldering Conical Cartridge Tip 0.3mm x 4.5mm

+

C210-017
$62.00 $55.80

C210-017 JBC Multilayer Soldering Cartridge

+

C210-018
$44.00 $39.60

C210018 JBC Tools Soldering Knife Cartridge Tip 3.4mm x 0.3mm

+

C210-020
$44.00 $39.60

C210020 JBC Tools Soldering Conical Cartridge Tip 0.1mm

+

C210-021
$44.00 $39.60

C210021 JBC Tools Soldering Chisel Cartridge Tip 0.6mm x 0.3mm

+

C210-005
$44.00 $39.60

C210005 JBC Tools Soldering Conical Cartridge Tip 1mm

+

C210-006
$44.00 $39.60

C210006 JBC Tools Bevel Soldering Cartridge Tip 1mm x 4.6mm

+

C210-007
$44.00 $39.60

C210007 JBC Tools Soldering Chisel Cartridge Tip 2.3mm x 0.7mm

+

C210-008
$44.00 $39.60

C210008 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.6mm

+

C210-009
$44.00 $39.60

C210009 JBC Tools Soldering Conical Cartridge Tip 0.2mm x 6mm

+

C210-010
$44.00 $39.60

C210010 JBC Tools Soldering Bent Cartridge Tip 0.3mm x 5.5mm

+

C210-012
$44.00 $39.60

C210012 JBC Tools Soldering Cartridge Mini-Wave Tip for Fine Pitch Applications

+

C210-013
$44.00 $39.60

C210013 JBC Tools Soldering Conical Cartridge Tip 0.5mm x 6mm

+

C210-014
$44.00 $39.60

C210014 JBC Tools Bent Soldering Cartridge Tip 0.5mm x 5.5mm Fine Pitch Applications

+

C210-022
$44.00 $39.60

C210022 JBC Tools Soldering Chisel Cartridge Tip 1.3mm x 0.4mm

+
