Save 5%
JBC - CD-2BD

CD-2BE JBC Tools Digital Soldering Station (220 Volt)

List price: $525.00
$498.75
You save: $26.25 (5%)
Price in points: 499 points
CD-2BE
+

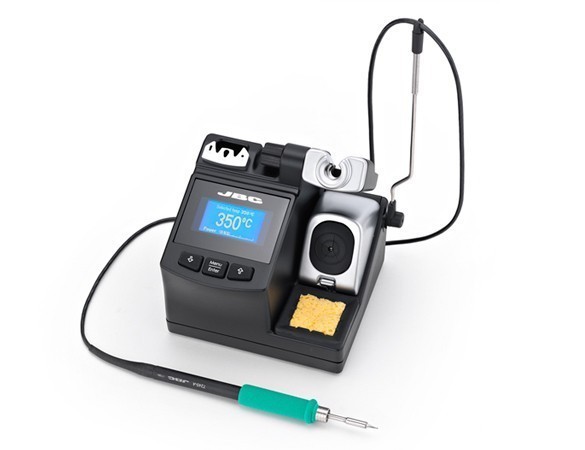

JBC Tools CD-2BE (220V) Digital Lead-Free Soldering Station

Comes with handpiece (T245-A), and two cartridges (C245-903 and C245-741).

The CD soldering control unit features large graphic display that shows important information at a glance. Any changes to the original settings can be easily made via menu on the display.

The intelligent sleep and hibernation functions, which help to extend tip life and to save energy, are combined with extremely fast temperature recovery unrivalled in the market.
This integrated parameter programming allows the station to memorize up to 5 temperatures, allowing to limit maximum temperature, programs sleep and hibernation mode, blocks the system with a PIN code.
The process control keeps fixed temperature limits, reads the usage counters, blocks the keypad with a PIN or program sleep or hibernation mode.
The stand is incorporated in the housing with the control unit for easy handling.

•The JBC CD-2BE is a basic level soldering station that was designed for the everyday user.
•The CD soldering control unit features a large size display screen which displays important control information.

• Intelligent Sleep Mode: When the soldering tool is in the stand, the temperature reduces (present sleep temperature is 180 degrees C / 360 degrees F)
•Hibernation Mode: After extended time of inactivity (pre-set to 30 minutes), the power is shut down and the tool will reduce to normal room temperature.
•Cartridge extractor: Extremely to change the tip. With a gentle pull the tip will be removed and will a gentle push the new soldering tip will snap into your soldering tool.
•Adjustable stand: Quick and easy adjustment of the angle of the stand without requiring additional tools
•Cable collector: Maintains working area free of cable Brass wool housing: Contains metal wool and minimizes splashing of solder particles
•Multiple Cleaning Options: The user can choose to use the S0331 or S0354 Cleaning Sponges, the CL6250 Inox Wool, CL6220 Cleaning Brushes. The sponge is typically used for final cleaning (Optional accessories may include: metal brushes / retinner). Tapping and wiping is also useful as clean products are very soft and non-responsive to the temperature allowing the cleaning of solder to be an extremely simple task).

An advanced compact station incorporating JBC Technology in one self-contained unit with a new display and USB Connector for software updates. The intelligent sleep and hibernation functions, which help extend tip life and save energy, works so well because JBC's extremely fast temperature recovery, unrivaled in the market. The CD-1BD Soldering control units feature large high-contrast graphic displays that show important information at a glance.

The Intelligent Heat Management

JBC stations incorporate Sleep & Hibernation functions that lower tip temperature when tool is not used. As a result, tip life lasts up to 5 times longer.

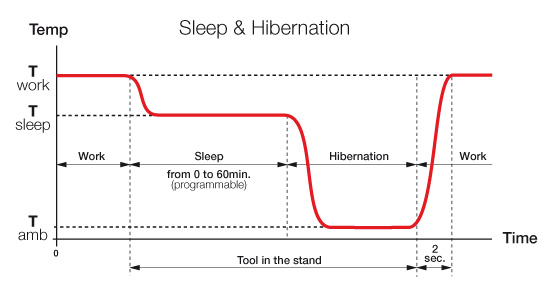

Sleep & Hibernation
functions

The Sleep function automatically reduces
tip temperature to 180ºC when the iron is resting in the stand.

The station automatically goes into Hibernation when the programmed time in Sleep mode is over. The power supply is cut off and tip keeps at room temperature.

A stand is required to activate both functions
Longer Tip life

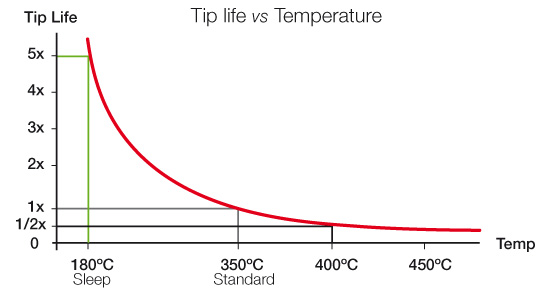

Tip life increases exponentially by using lower tempearture during less time, as shown in the graph.

JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and the Intelligent Heat Management: Sleep & Hibernation functions.
Vendors :
JBC Tools
Ambient operating temp.:
10-40 ºC / 50-104 ºF
Single or Dual Station:
Single
Available Voltage:
Analog or Digital:
Digital
Power Consumption:
75 Watts
Time to reach 400ºC w/cold tip:
8 sec
Thermal Load Test :
1 min 28 sec
Temperature setting range ºC:
90ºC - 450ºC
Temperature setting range ºF:
F 190ºF - 840ºF
Idle Temp, Stability:
±1.5ºC
Dimensions handpiece:
6" x 1/2"
Dimensions control unit:
5.9x6.5x5.7"
Weight handpiece:
63gr
Weight control unit:
5.5lbs
Tip to ground resistance:
< 5 Ohm
Tip to ground voltage:
<2 mV RMS
Handpiece cord length:
62"
Power cord length:
6' Computer Plug
Total peak power:
140 Watts
Nominal soldering iron power:
75 Watts
ESD Safe:
Yes
Temperature in ºC or ºF:
Yes
Temperature Adjustable:
Yes
Heater fail notification:
Yes
Zero Voltage Switching:
Yes
Sleep function:
Yes
Shutdown function:
Yes
Plug-In Handpiece:
Yes
Password Lock function:
Yes
Calibration function:
Yes
Temp. Correction Range :
+99ºC ~ -99ºC
Burn resistant cord:
Yes
Replace tip while hot:
Yes
UL, CE or CSE certified:
Yes
T245-B
$74.00 $60.00

JBC Tools T245-B Soldering Handpiece are for both SMD components and for jobs with high power requirements (e.g. ground plane soldering

+
Price in points: 60 points

T245-A
$74.00 $60.00

T245-A JBC Tools T245 Standard Handpiece

+
Price in points: 60 points

T245-PA
$74.00 $60.00

JBC Tools T245-PA Soldering Handpiece are for both SMD components and for jobs with high power requirements.

+
Price in points: 60 points

CD-2BE Manual (CD-BE_MANUAL.pdf, 5,166 Kb) [Download]

CD-2BE Exploded View (EXPLODED_CD-BE.pdf, 495 Kb) [Download]

Compact Line Brochures (compact_eng.pdf, 1,215 Kb) [Download]
