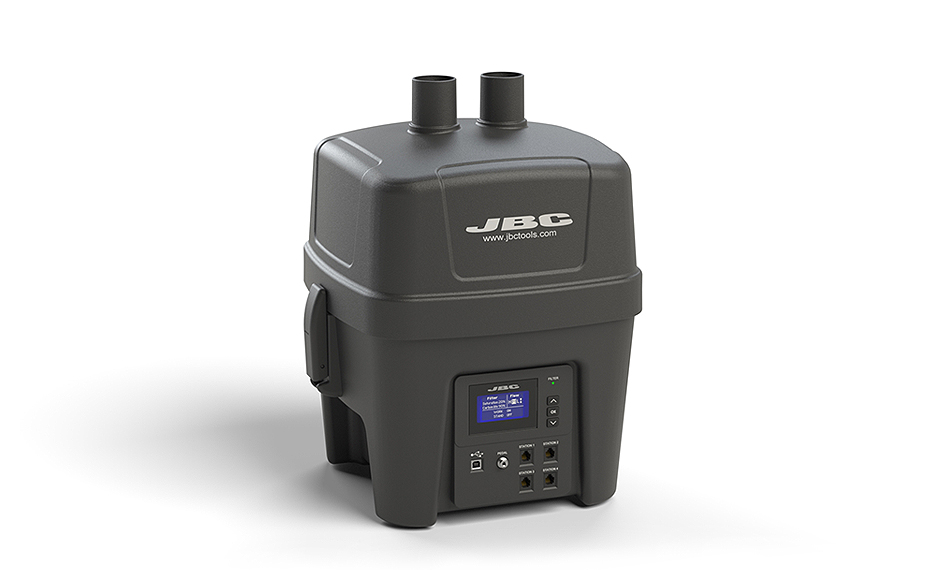

- The FAE1-1B is the most efficient solution to avoid exposure to solder fumes. It optimizes fume extraction operating only when needed.
- The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter.
- Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.
- The FAE1-1B provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 4 tools.
- It can be controlled via JBC stations, a pedal, a robotic system or a PC.
- It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).
SPECIFICATIONS
SELECTABLE PARAMETERS
Aspiration flow rate
Low / Medium / High / Custom
Operation modes
Automatic (JBC Stations)
Continuous
Pedal
RS-232 remote control
OTHERS
Blower type
Brushless
Max. flow rate
180m3/h (106 CFM)
Max. vacuum
3.2 KPa (0.46 psi)
Work areas
1
Noise Level
55 dB @ 1m
FILTERS
Pre-filter
Medium dust filter M5 (EN 779)
2 Stages Main Filter
1st stage H13 filter for solid particles (EN 1822)
2nd stage Carbon filter for gases depuration
CONNECTIVITY
USB-B
Firmware update
Station 1-4 (RJ12)
Direct connection for 4 Stations
Robot (RJ12)
RS-232 remote control
Pedal
Optional tool control through Pedal P-005
ESD/EOS
ESD safe
POWER SUPPLY
Peak power
95 W (100 V)
110 W (120 V)
110 W (230V)
Ambient operating temp.
10 to 40 ºC / 50 to 104 ºF
DIMENSIONS AND WEIGHT
Unit
380 x 340 x 475 mm / 10.50 kg.
14.96 x 13.39 x 18.70 in / 23.15 lb.
Package
425 x 425 x 545 mm / 12.76 kg.
16.73 x 16.73 x 21.46 in / 28.12 lb.
Net Weight:
23.0 Lbs.
Package dimensions:
16.73 x 16.73 x 21.46 in
Power Consumption:
110 Watts
