View Solutions ST02011224 85mm HH Dual Illuminated Post Stand

View Solutions ST02011224 85mm HH Dual Illuminated Post Stand

List price: $441.97
You save: $77.97 (18%)
Price in points: 364 points

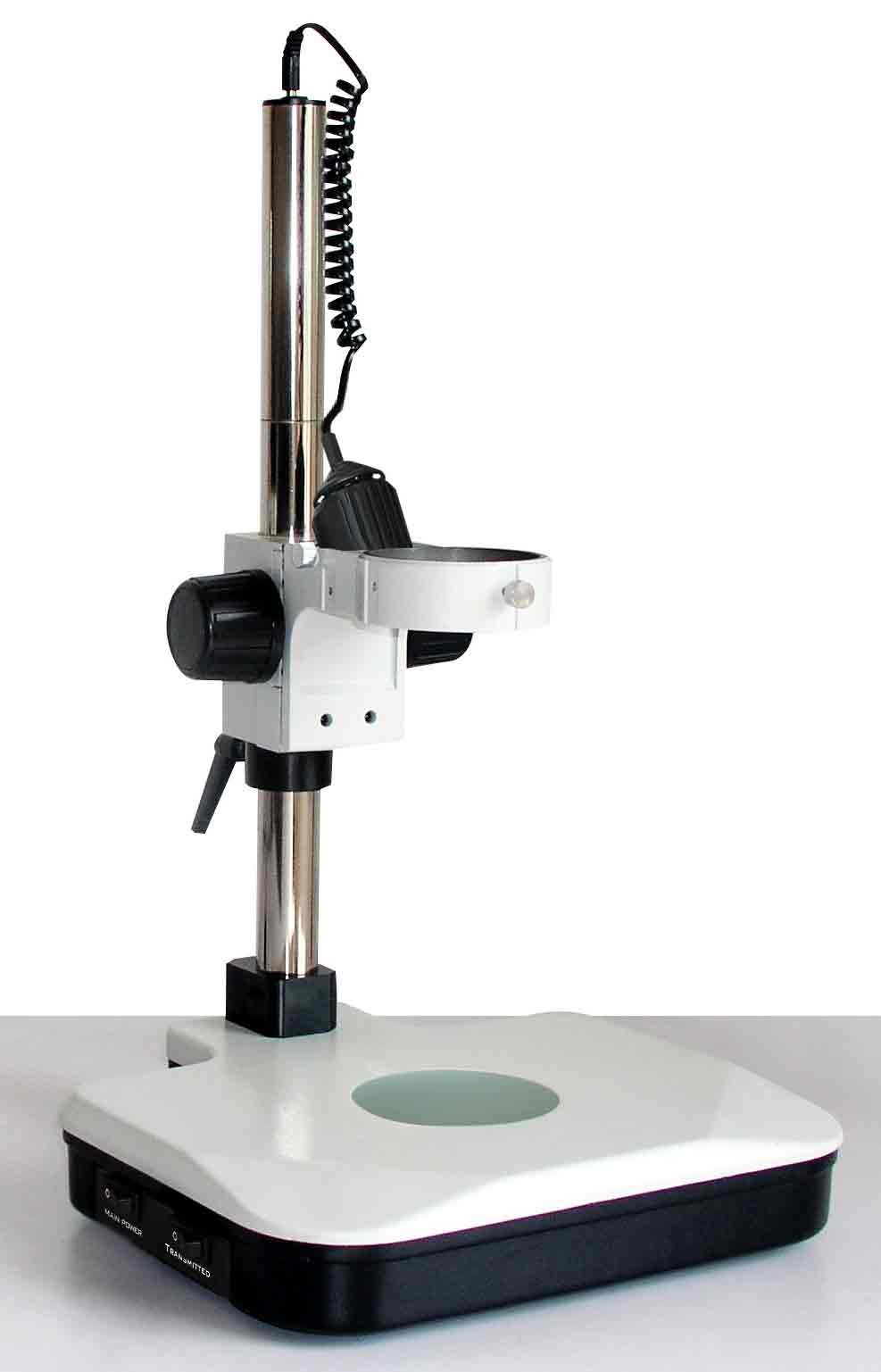

View Solutions ST02011224 Series HH Dual Illuminated Post Stand with 83mm Microscope Opening.

View Solutions ST02011224 85mm HH Dual Illuminated Post Stand

The View Solutions ST02011224 85mm Top Halogen Spot Light and Bottom Halogen Light Stand. The View Solutions ST02011224 has a 85mm Scope Holder. The View Solutions ST02011224 Vertical Post Height: 305mm. The View Solutions ST02011224 Base Dimensions: 320x305x60mm. The View Solutions ST02011224 HH Dual Illuminated Light. Top Illumination: Oblique Top Spot Light.

Warranty: 1 Year

View Solutions ST02011224 85mm HH Post Stand Specifications

Post Stand Stand Type Post Stand
Holder Adapter Type 85mm Scope Holder
Vertical Post Height 305mm
Maximum Vertical Post Extended Length 150mm
Vertical Post Dia. 32mm
Base Type Illumination Base
Base Shape Rectangle
Base Mounting Size M29x1.5-6h
Base Dimensions 320x305x60mm
Focus Mode Manual
Focus Distance 50mm
Coarse Focus Distance per Rotation 21mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Center Distance from the Hole to the Scope Holder 150mm
Illumination Type HH Dual Illuminated Light
Top Illumination Obligue Top Light
Top Illumination Type Halogen Light
Bottom Illumination Type Halogen Light
Input Voltage AC 90~265V 50/60Hz
Output Voltage DC 12V
Output Power 30W
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 5.80kg (12.79lbs)
Dimensions 320x305x518mm (12.598x12.008x20.394″)
Microscope Plate Black White Plate Plate Type Black White Plate
Plate Material Plastic
Plate Size 95x5mm
Color Black,White
Net Weight 0.04kg (0.09lbs)
Clear Glass Plate Plate Type Clear Glass Plate
Plate Material Clear Glass
Plate Size 95x5mm
Net Weight 0.04kg (0.09lbs)
Aperture Diaphragm Transmitted Illumination Iris Aperture Diaphragm Mounting Position Vertical Illuminator
Aperture Diaphragm Outer Dia. 91mm
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 0.03kg (0.07lbs)
Applied To SA0216 Series Illumination Base

Purchase a View Solutions ST02011224 85mm HH Dual Illuminated Post Stand sold by Howard Electronics Today!

Part No.:
Vendors :
View Solutions

Pneumatic Arm Instruction Manual (Pneumatic_Arm_Instruction_Manual.pdf, 73 Kb) [Download]
