HEI-MP2-AR HEIScope Stereo Zoom Binocular Microscope Package

List price: $1,592.99
$1,297.00
You save: $295.99 (19%)
Price in points: 1297 points
HEI-MP2-AR
+

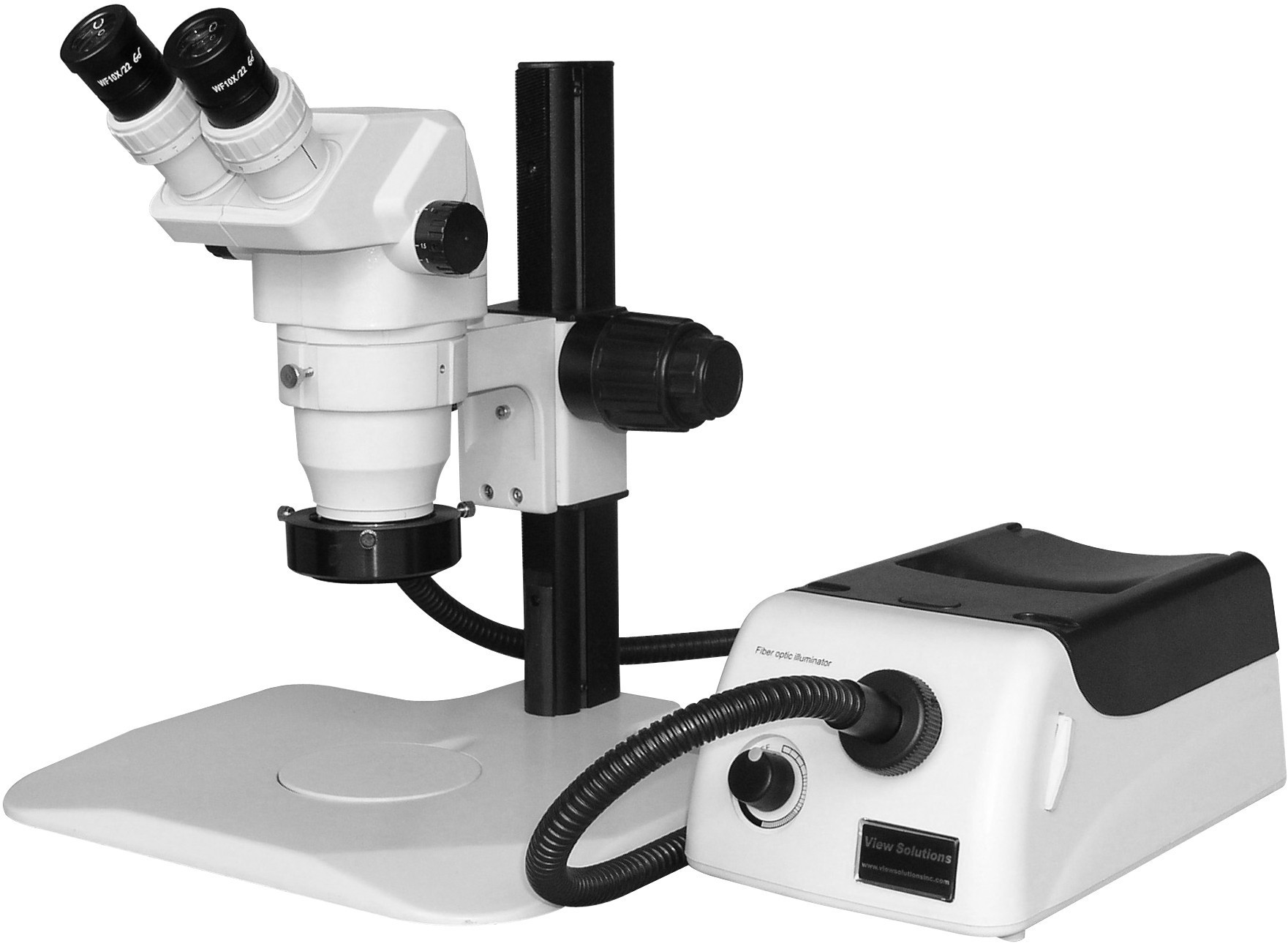

HEI-MP2-AR includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, track stand with 76mm focus rack, ring adapter, 0.5x auxiliary lens, fiber optic illuminator, 36" annular ring light guide and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • Track stand with 76mm e-arm Weight 6.6 lbs
  • 150 Watt Fiber Optic Illuminator with Annular Ring Light Guide
  • Dual diopter adjustments
  • Focusable eyepieces
  • Can be used for teaching, scientific research, electronic testing and more.
  • 5 year warranty!

Optical Specifications:

Objective0.3X0.4X

0.5X

0.75X1X1.5X2.0X
Working Distance (mm)287mm

217mm

177mm

117mm

100mm

47mm

26mm

10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

13.4x-90.0x

FOV 109.5-16.382.1-12.265.7-9.8

43.8-6.5

32.8-4.9

21.9-3.3

16.4-2.4

15X Mag.

3.0x-20.3x

4.0x-27.0x

5.0x-33.8x

7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
FOV 79.6-11.9

59.7-8.9

47.8-7.1

31.8-4.7

23.9-3.6

15.9-2.4

11.9-1.8

20X Mag.

4.0x-27.0x

5.4x-36.0x

6.7x-45.0x

10.1x-67.5x

13.4x-90.0x

20.1x-135.0x

26.8x-180x

FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5


Vendors :
HEIScope
SZ05013911
$7.08 $4.00
SZ05013911, View Solutions

HEI-EP-EG HEI Scope Eye Guards (Pair).

+

HEI-EP-W10
$141.53 $70.00

HEI-EP-W10 SZ302101 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.

+

HEI-EP-W15
$153.39 $80.00
HEI-EP-W15 SZ302103 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W20
$153.39 $75.00
HEI-EP-W20 SZ302104 HEI Scope Wide Field 20x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W25
$200.44 $105.00
HEI-EP-W25 SZ302105 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W30
$224.15 $150.00
HEI-EP-W30 SZ302106 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+
HEI-AL-03
$129.67 $100.00

HEI-AL-03 HEI Scope Series .3x Auxiliary Lens.

+

SZ19024211
$129.67 $100.00
SZ19024211, View Solutions

HEI-AL-05 HEI Scope Series .5x Auxiliary Lens

+

HEI-AL-07
$129.67 $100.00

HEI-AL-07 HEI Scope Series .75x Auxiliary Lens.

+

HEI-AL-10
$11.67 $10.00

HEI-AL-10 HEI Scope Series Ring Light Adaptor.

+

HEI-AL-15
$165.06 $100.00
HEI-AL-15 HEI Scope Series 1.5x Auxiliary Lens. SZ303104
+

HEI-AL-20
$165.06 $110.00

HEI-AL-20 HEI Scope Series 2x Auxiliary Lens.

+

No posts found

Write a review

SZ Stereo Zoom Instruction Manual (SZ_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 224 Kb) [Download]

Track Stand Manual (Track_Stand_Instruction_Manual.pdf, 213 Kb) [Download]

Fiber Optic Illuminator (HEI-FOI-150_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 185 Kb) [Download]
