View Solutions SZ17011141 True Trinocular Stereo Zoom Microscope

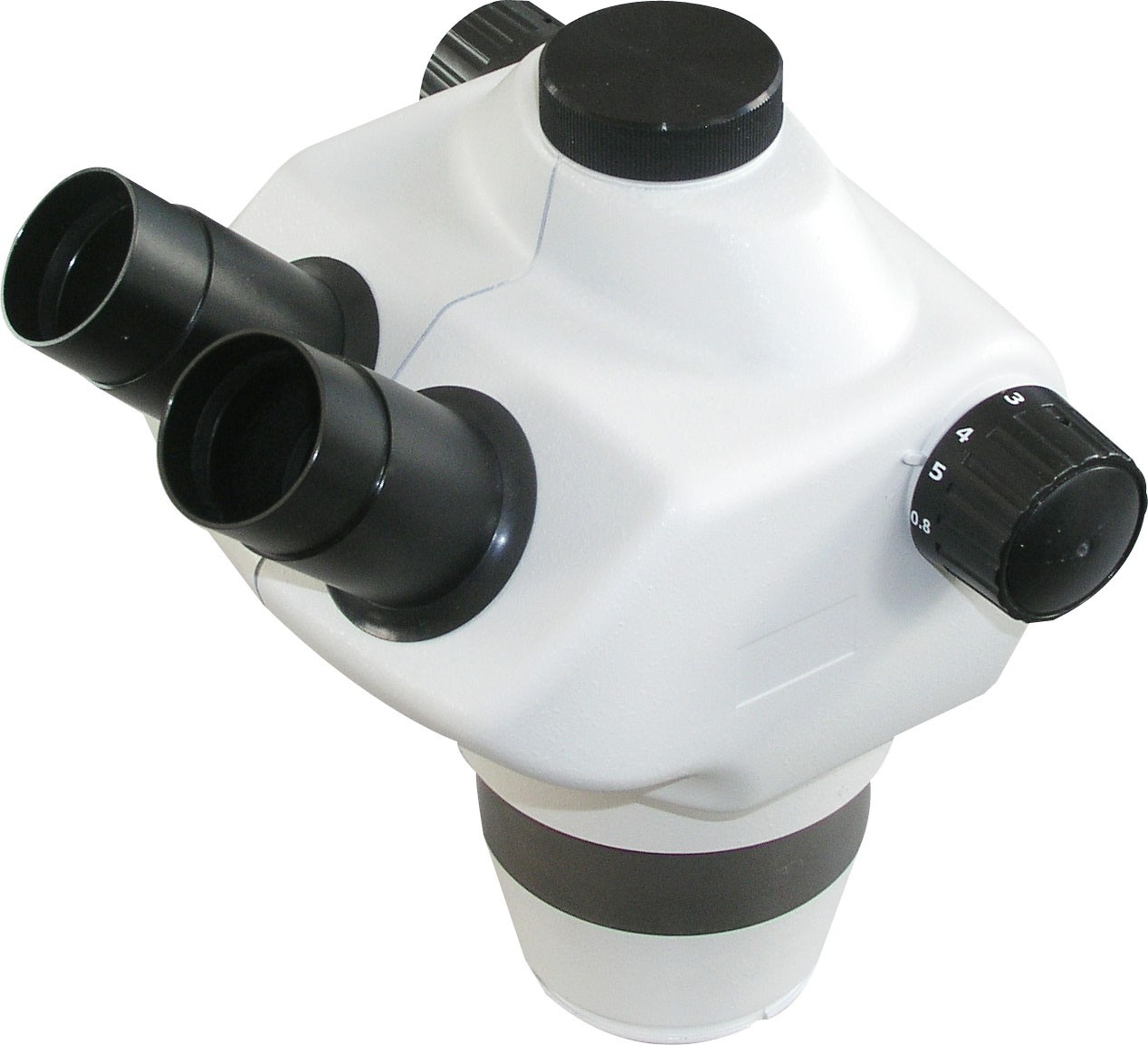

View Solutions HEI-SZII-T2 SZ17011141 Stereo Zoom True Trinocular Microscope Body

List price: $1,024.76
$695.00
You save: $329.76 (32%)
Price in points: 695 points
HEI-SZII-T2
+

View Solutions HEI-SZII-T2 SZ17011141 Stereo Zoom True Trinocular Microscope Body

View Solutions SZ17011141 Stereo Zoom Trinocular Microscope Body Magnification Zoom Range: 0.8-5X. Zoom Ratio: 1:6.3 Objective Range), 10x Eyepieces, Ring Light Adapter and ESD Safe Microscope Cover.

View Solutions SZ17011141 True Trinocular Stereo Zoom Microscope is perfect for your professional inspection needs. The brand new SZ1701141 Stereo Zoom Trinocular Microscope optics design adopted in the SZII Stereo Zoom Microscope facilitates the microscope to deliver excellent flatness, good contrast and high definition images in the wide field, especially on the periphery of Field of View.

View Solutions SZ17011141 True Trinocular Stereo Zoom Microscope

The SZ17011141 Stereo Zoom Trinocular Microscope has a combination of compact design, long working distance and variety of functions enables SZII Stereo Zoom Microscope to be applied in precision of requirements, such as in semi-conductor and other scientific fields. You'll be delighted by the quality and performance of these instruments.

View Solutions SZ17011141 True Trinocular Stereo Zoom Microscope Specifications

  • SZ17011141 Trinocular Microscope stereo image with longer depth of field & higher resolution
  • SZ17011141 Trinocular Microscope Zoom magnification: 8X-50X, zoom ratio 1:6.3
  • SZ17011141 Trinocular Microscope Zooming knob: with click-stops.
  • SZ17011141 Trinocular MicroscopeEyepieces inclination at 45º
  • SZ17011141 Trinocular Microscope Interpupillary distance: 52mm-75mm
  • SZ17011141 Trinocular Microscope Diopter: ±5 Diopter
  • Working distance: 115mm (1x)
  • SZ17011141 Trinocular Microscope Video Image Port: True Trinocular, built in 0.4x video coupler.
  • Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
  • SZ17011141 Trinocular Microscope can be used for teaching, scientific research, electronic testing and more.

View Solutions SZ17011141 Stereo Zoom Trinocular Microscope Specs

Body Optical System Finite
Body Magnification 8-50X
Zoom Range 0.8-5X
Zoom Ratio 1:6.3
Zoom Operating Mode With Two Horizontal Knobs
Observe Method Trinocular
Body Mounting Size for Stand Φ76mm
Magnification Detent 1X per pre-set stop
Body Mount Type for Coupler Thread Screw
Body Mount Size for Coupler Φ26mm
The Nosepiece Adapter Size for Ring Light Φ60mm
Eyetube Adjustment Mode Compensating
Eyetube Angle 45°
Erect/Inverted Image Erect image
Eyetube Rotatable 360° Rotatable
Interpupillary Adjustment 52-75mm
Eyetube Inner Dia. Φ30mm
Eyetube Fixing Mode Elastic Tube locking
Image Port Switch Mode 20/80 True-Trinocular
Eyepiece Type Adjustable Eyepiece
Eyepiece Optical Magnification 10X
Plan Eyepiece Plan Eyepiece
Eyepiece Size for Eyetube Φ30mm
Eyepiece Field of View Φ22mm
Eyepoint Type High Eyepoint Eyepiece
Eyepiece Size for Reticle Φ27mm
Eyepiece Diopter Correction ±5°
Objective Working Distance 115mm
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 1.72kg (3.79lbs)


Purchase a View Solutions SZ17011141 True Trinocular Stereo Zoom Microscope Today!

Vendors :
HEIScope
HEI-AL-A05
$212.30 $125.00
HEI-AL-A05, HEIScope
HeiScope HEI-AL-A05 0.5x auxiliary lens for the HEI-SZII series microscopes SZ403102
+
Price in points: 125 points

HEI-AL-A20
$212.30 $125.00
HEI-AL-A20 SZII 2.0x Auxiliary lens SZ403105
+
Price in points: 125 points
HEI-EP-A10
$194.70 $100.00

HEI-EP-A10 SZ402101 10x Adjustable Wide Focus Eyepiece for the SZII Scopes

Price in points: 100 points

HEI-EP-A15
$224.15 $125.00
HEI-EP-A15 SZ402103 15x Wide Focus eyepiece for the SZII Scopes
Price in points: 125 points

HEI-EP-A20
$230.08 $125.00

HEI-EP-A20 SZ402104 20x Wide Focus eyepiece for the SZII Scopes

Price in points: 125 points

SZII Stereo Zoom Manual (SZ2_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 214 Kb) [Download]
