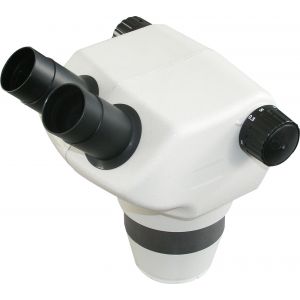

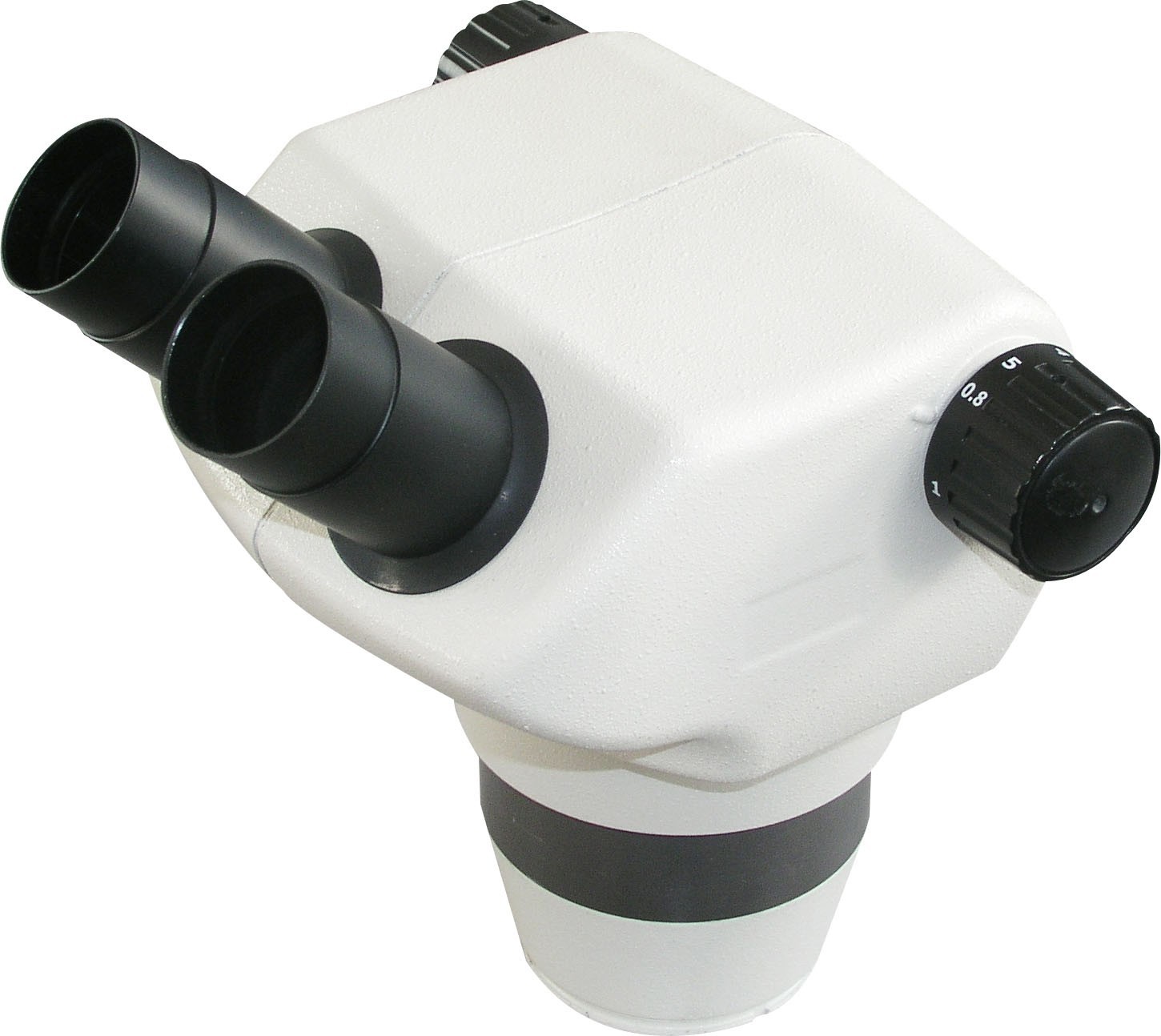

HEI-SZII-B2 SZ17011121 HEI Scope Stereo Binocular Body with longer depth of field & higher resolution and Zoom magnification 8X to 50X

HeiScope features powerful stereo zoom microscopes perfect for your professional inspection needs. HeiScope offers Binocular and Trinocular (True Trinocular) models with vivid images, big depth of focus, wide visual field, distinct stereo vision in a compact structure. You'll be delighted by the quality and performance of these instruments. (5 year Manufacturer's warranty!)

Stereo image with longer depth of field & higher resolution

Zoom magnification: 8X-50X, zoom ratio 1:6.3
Zooming knob: with click-stops.
Eyepieces inclination at 45º
Interpupillary distance: 52mm-75mm
Diopter: ±5 Diopter
Working distance: 115mm (1x)
Video Image Port: True Trinocular, built in 0.4x video coupler.
Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
Can be used for teaching, scientific research, electronic testing and more.

Optical Data: SZII Packages Below

Auxiliary Lens	Working Distance (mm)	Eyepieces
		10X (Φ22mm)		15X (Φ16mm)		20X (Φ12.5mm)		30X (Φ7mm)
		Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)	Mag.	FOV (mm)
1X	115	8~50x	27.5~4.4	12~75x	20~3.2	16~100x	15.6~2.5	24~150x	8.8~1.4
0.5X	211	4~25x	55~8.8	6~37.5x	40~6.4	8~50x	31.2~5	12~75x	17.6~2.8
2X	43.5	16~100x	13.8~2.2	24~150x	10~1.6	32~200x	7.8~1.3	48~300x	4.4~0.7
