HEIScope's MZ CCD Coupler standard C-Mount design is suitable to 1/3" CCD Camera, in which three magnifications, i.e. 1.0X, 1.5X, 2.0X adopting with "far-take" optics structure that greatly shortened the length of the system.

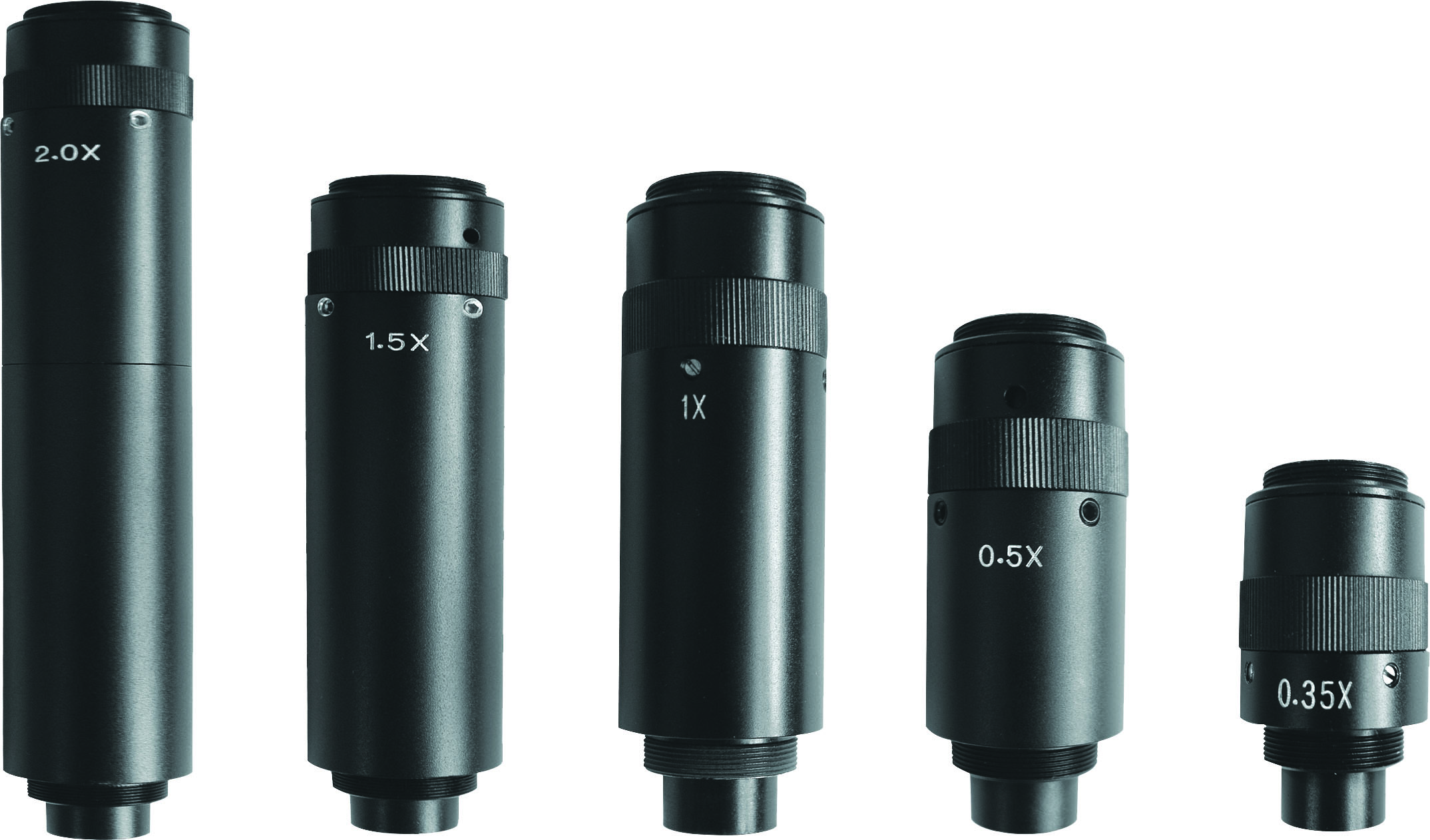

Optional Couplers: HEI-MZC-0.38X, HEI-MZC-0.5X, HEI-MZC-0.75X, HEI-MZC-1.0X, HEI-MZC-1.5X, HEI-MZC-2.0X
| Coupler | 0.38X | 0.5X | 0.75X | 1.0X | 1.5X | 2.0X |
| Focus Distance | 67mm | 90mm | 135mm | 180mm | 270mm | 360mm |
| Optical Length Approx. | 76mm | 97mm | 103mm | 130mm | 189mm | 252mm |
| The FOV angle of the objective | 7.6° | 7.6° | 7.6° | 7.6° | 7.6° | 7.6° |
| The FOV diameter of the image side≥ | 6.1mm | 6.1mm | 6.1mm | 6.1mm | 6.1mm | 6.1mm |
