DEN-ON SC7000ZA 220V British Desoldering Tool

DEN-ON SC7000ZA 220V British Desoldering Tool

List price: $465.00
$415.00
You save: $50.00 (11%)
Price in points: 415 points
SC7000ZA
+

DEN-ON SC7000ZA British Desoldering Tool sold by Howard Electronics

Den-On SC7000Z Desoldering Gun is totally self-contained transportable desoldering gun in the world. Den-On SC7000Z is a Powerful thru-hole Desoldering Gun and a functional Hot-Air-Tool for SMD Rework of QFP's and PLCC's (with the purchase of the SMD Kit.) The SMD Kit is specifically designed for blowing hot air with the SC-7000Z for removal of Surface Mount Devices of all Kinds. With the use of the wire and shim-blade holder, most SMD's can be easily reworked. Kit contains Hot Air Tip for SC7000Z, clean filter for hot air only, wire and shim-blade holder and supplies, and case for containing pieces.

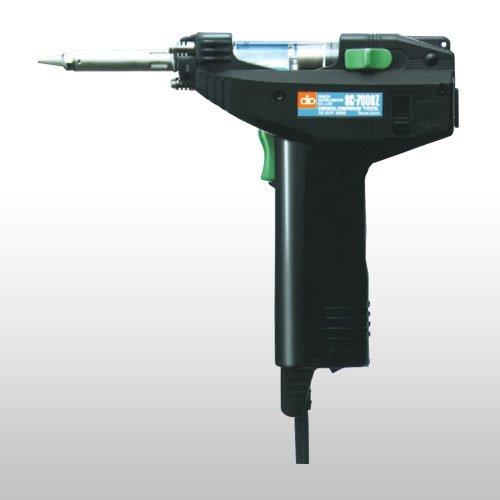

DEN-ON SC7000Z Desoldering Tool with Stand

  • Den-On SC7000Z is Totally Self Contained diaphragm vacuum pump and AC motor for high vacuum suction or reversible hot air blow for SMD removal.
  • Den-On SC7000Z has a 100 Watt Ceramic heater with zero-crossover switching heater control circuit which prevents spikes and leakage currents.
  • Unique patented long lasting filter cartridge design. Solder builds up on easily cleaned baffle, while air flows around the outside of baffle.
  • Den-On SC7000Z is totally ESD Safe. The housing contains carbon and the tip is at ground potential for complete ESD protection.
  • Den-On SC7000Z Maximum vacuum of 650mmHg is attained in 0.1 seconds.
  • Den-On SC7000Z Temperature adjustable from 350 C - 500 C or 572 F - 932 F
  • Den-On SC7000Z Compact, light-weight unit is transportable and ready to use at any location.


SC7000Z Den-On Specifications

  • SC7000Z Voltage - AC100V, 120V, 230V, 50/60HZ
  • SC7000Z Power consumption - 120W
  • SC7000Z Pump - Diaphragm type
  • SC7000Z Motor output - 12W
  • SC7000Z Vacuum attained - 650mmHg
  • SC7000Z Time required to reach maximum vacuum - 0.1 seconds
  • SC7000Z Air flow rate - 15 liter/minute (open)
  • SC7000Z Heater - 100W (Ceramic)
  • SC7000Z Control system - Feed back zero cross over type
  • SC7000Z Temperature range - 350 C - 500 C
  • SC7000Z Insulation Resistance - More than 100M(
  • SC7000Z Max. Temp. of Hot Blow - 400C
  • SC7000Z Net Weight - 420g - Less than one pound
  • 60 Day Money Back Total Satisfaction Guarantee
    One Year Parts / Labor Warranty performed in-house
  • Denon SC7000Z Tips for your tip's that won't leave you PLUGGED

    Purchase DEN-ON SC7000ZA British Desoldering Tool Today.

    Max. Temp. of Hot Blow:
    400°C
    Net Weight:
    420g
    Temperature °C:
    350°C - 500°C
    Vendors :
    Den-On Instruments
    Air flow:
    15 liter/minute (open)
    08-05-00
    $4.02 $3.50

    DEN-ON 08-05-00 NECK JAR

    +
    Price in points: 4 points

    70-03-00
    $32.89 $28.00
    Den-On Instruments, 70-03-00

    DEN-ON 70-03-00 HEATER HOLDER

    +
    Price in points: 28 points

    70-04-00
    $0.38 $0.35

    DEN-ON 70-04-00 PAN SCREW

    +
    Price in points: 1 point

    70-05-00
    $3.44 $3.00
    Den-On Instruments, 70-05-00

    DEN-ON 70-05-00 MICA INSULATOR

    +
    Price in points: 3 points

    70-06-10
    $1.75 $1.50
    Den-On Instruments, 70-06-10

    DEN-ON 70-06-10 PROTECTOR

    +
    Price in points: 2 points

    70-06-50
    $39.00 $35.00

    70-06-50 Den-On Heating element for 230v

    +
    Price in points: 35 points

    70-07-00
    $29.45 $25.00
    Den-On Instruments, 70-07-00

    Den-On 70-07-00 Front Pipe Setter

    +
    Price in points: 25 points

    70-08-00
    $25.00 $20.00

    DEN-ON 70-08-00 FILTER CARTRIDGE FOR SC7000Z 5PC SET

    +
    Price in points: 20 points

    70-10-00
    $12.81 $11.00
    Den-On Instruments, 70-10-00

    DEN-ON 70-10-00 FILTER CHAMBER

    +
    Price in points: 11 points

    70-12-00
    $1.15 $1.00
    Den-On Instruments, 70-12-00

    DEN-ON 70-12-00 SILICONE TUBE

    +
    Price in points: 1 point

    70-13-00
    $1.15 $1.00

    DEN-ON 70-13-00 SPRING (T)

    +
    Price in points: 1 point

    70-15-00
    $2.29 $2.00

    DEN-ON 70-15-00 PLAIN WASHER

    +
    Price in points: 2 points

    70-16-00
    $1.15 $1.00

    DEN-ON 70-16-00 SPRING (T)

    +
    Price in points: 1 point

    70-17-00
    $5.16 $4.50
    Den-On Instruments, 70-17-00

    DEN-ON 70-17-00 VALVE

    +
    Price in points: 5 points

    70-18-00
    $5.16 $4.50

    DEN-ON 70-18-00 LEVER

    +
    Price in points: 5 points

    70-19-00
    $4.02 $3.50
    Den-On Instruments, 70-19-00

    DEN-ON 70-19-00 GASKET

    +
    Price in points: 4 points

    70-20-00
    $0.40

    DEN-ON 70-20-00 FLAT SCREW 3-18

    +
    Price in points: 1 point

    70-21-00
    $5.16 $4.50
    Den-On Instruments, 70-21-00

    DEN-ON 70-21-00 PUMP BASE (B)

    +
    Price in points: 5 points

    70-22-00
    $4.59 $3.90
    Den-On Instruments, 70-22-00

    DEN-ON 70-22-00 SEAT VALVE

    +
    Price in points: 4 points

    70-23-00
    $7.65 $6.50
    Den-On Instruments, 70-23-00

    DEN-ON 70-23-00 PUMP BASE (A)

    +
    Price in points: 7 points

    70-24-00
    $0.57 $0.50

    DEN-ON 70-24-00 FLAT SCREW 3-6

    +
    Price in points: 1 point

    70-25-00
    $4.59 $3.95

    DEN-ON 70-25-00 WASHER

    +
    Price in points: 4 points

    70-26-00
    $7.65 $6.50
    Den-On Instruments, 70-26-00

    DEN-ON 70-26-00 DIAPHRAM

    +
    Price in points: 7 points

    70-27-00
    $4.02 $3.50

    DEN-ON 70-27-00 ARM ROD

    +
    Price in points: 4 points

    70-28-00
    $7.65 $6.50
    Den-On Instruments, 70-28-00

    DEN-ON 70-28-00 FRAME

    +
    Price in points: 7 points

    70-28-51
    $55.00 $51.00

    DEN-ON 70-28-51 PUMP ASSEMBLY

    +
    Price in points: 51 points

    70-29-00
    $2.68 $2.30

    DEN-ON 70-29-00 ANTI VIBRATION PAD

    +
    Price in points: 3 points

    70-31-51
    $10.52 $9.00

    DEN-ON 70-31-51 CRANKSHAFT ASSEMBLY

    +
    Price in points: 9 points

    70-33-00
    $4.02 $3.50

    DEN-ON 70-33-00 Balancer

    +
    Price in points: 4 points

    70-35-00
    $5.16 $4.50

    DEN-ON 70-35-00 Vibration Isolator Pad (M)

    +
    Price in points: 5 points

    70-36-00
    $5.16 $4.50

    DEN-ON 70-36-00 TEMPERATURE KNOB

    +
    Price in points: 5 points

    70-37-32
    $3.50 $2.50
    Den-On Instruments, 70-37-32

    DEN-ON 70-37-32 FUSABLE RESISTOR

    +
    Price in points: 3 points

    70-37-60
    $7.65 $6.50
    Den-On Instruments, 70-37-60

    DEN-ON 70-37-60 MICROSWITCH

    +
    Price in points: 7 points

    70-37-70
    $7.65 $6.50

    DEN-ON 70-37-70 DUST COVER

    +
    Price in points: 7 points

    70-43-00
    $5.74 $5.00

    DEN-ON 70-43-00 TRIGGER

    +
    Price in points: 5 points

    70-44-02
    $25.24 $21.50

    DEN-ON 70-44-02 POWER CORD

    +
    Price in points: 22 points

    70-45-00
    $44.74 $38.00

    DEN-ON 70-45-00 HOUSING

    +
    Price in points: 38 points

    70-46-00
    $0.30

    DEN-ON 70-46-00 PAN SCREW

    +
    Price in points: 1 point

    70-55-00
    $3.44 $3.00

    DEN-ON 70-55-00 Pan Screw 3x35 & Hex Net (5 pcs)

    +
    Price in points: 3 points

    70-49-00
    $1.15 $1.00

    70-49-00 DEN-ON Vibration Isolator Pad

    +
    Price in points: 1 point

    70-50-00
    $0.57 $0.50

    70-50-00 DEN-ON Set Screw 4-4

    +
    Price in points: 1 point

    70-51-00
    $7.07 $6.00
    Den-On Instruments, 70-51-00

    DEN-ON 70-51-00 CLEANING PIN SET

    +
    Price in points: 6 points

    72-11-00
    $12.81 $11.00

    DEN-ON 72-11-00 REAR PIPE SETTER (GREEN)

    +
    Price in points: 11 points

    72-37-50
    Contact us for a price

    72-37-50 Den-On Main PCB 230v


    72-43-00
    $4.02 $3.50
    Den-On Instruments, 72-43-00

    72-43-00 Den-on Trigger green

    +
    Price in points: 4 points
    50-01-15
    $37.00 $33.95
    Den-On Instruments, ID = 1.5mm OD = 3.0mm

    DEN-ON 50-01-15 DESOLDERING TIP 1.5MM

    +
    Price in points: 34 points

    50-01-16
    $37.00 $33.95
    Den-On Instruments, ID = 1.0mm OD = 2.0mm

    DEN-ON 50-01-16 DESOLDERING TIP 1.0MM SLIM

    +
    Price in points: 34 points

    50-01-13
    $37.00 $33.95
    Den-On Instruments, ID = 0.8mm OD = 1.5mm

    DEN-ON 50-01-13 DESOLDERING TIP 0.8MM ULTRA SLIM

    +
    Price in points: 34 points

    50-01-14
    $37.00 $33.95
    Den-On Instruments, ID = 1.0mm OD = 2.5mm

    DEN-ON 50-01-14 DESOLDERING TIP 1.0MM STANDARD

    +
    Price in points: 34 points

    50-01-17
    $37.00 $33.95
    Den-On Instruments, ID = 1.5mm OD = 2.2mm

    DEN-ON 50-01-17 DESOLDERING TIP 1.5MM SLIM

    +
    Price in points: 34 points

    50-01-11
    $37.00 $33.95
    Den-On Instruments, ID = 0.8mm OD = 2.5mm

    DEN-ON 50-01-11 DESOLDERING TIP 0.8MM

    +
    Price in points: 34 points

    SC7000Z Manual (SC7000Manual.pdf, 154 Kb) [Download]

    Tips for your tips that won't leave you PLUGGED. (Tips_for_Tips.pdf, 37 Kb) [Download]

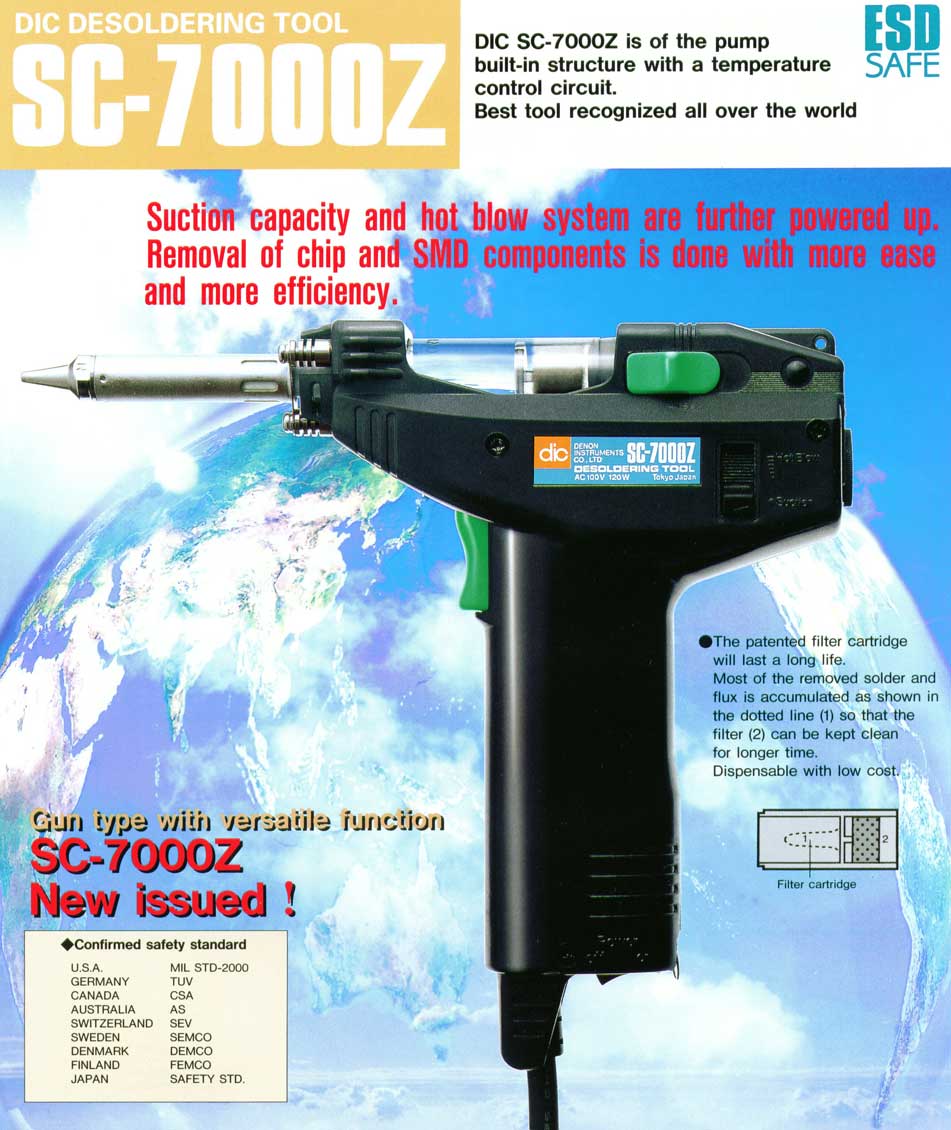

    SC7000Z Brochure (SC7000ZBrochure.jpg, 122 Kb) [Download]
