Virtual Industries HANDI-VAC HV-KIT-II-ESD

HV-KIT-II-ESD Virtual Industries Pick-up Tool

List price: $24.48
$20.80
You save: $3.68 (15%)
Price in points: 21 points
HV-KIT-II-ESD
+

Virtual Industries HV-KIT-II-ESD Pick-up Tool sold by Howard Electronics

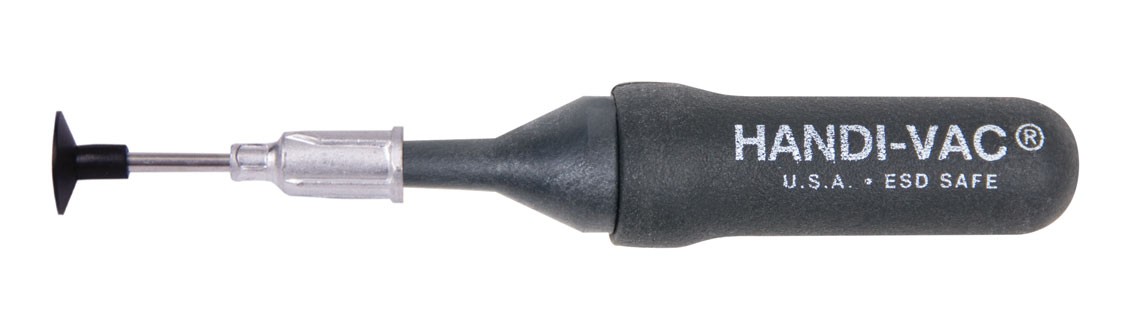

Virtual Industries HANDI-VAC HV-KIT-II-ESD KIT, Static dissipative, with (3) bent probes, (2) straight probes and (5) conductive silicone vacuum cups;1/8", 3/16", 1/4", 3/8" and 1/2".

Virtual Industries HANDI-VAC HV-KIT-II-ESD

Our Virtual Industries HANDI-VAC HV-KIT-II-ESD kits are a low cost pick-and-place tool that can go in everybody's tool box.

How to operate the Virtual Industries HANDI-VAC HV-KIT-II-ESD

1. Select a tip with a rubber vacuum cup on a probe that is slightly smaller than the part you want to pick and place. Put the probe snugly on the tip of the Virtual Industries HANDI-VAC HV-KIT-II-ESD tool. Make sure that there is no dust on the rubber vacuum tip. NOTE: Our larger rubber vacuum cups can be placed directly on the Virtual Industries HANDI-VAC HV-KIT-II-ESD tip without using a probe.

2. Gently squeeze the Virtual Industries HANDI-VAC HV-KIT-II-ESD bulb, place the soft suction cup squarely on the pick-and place part, then relax your squeeze. The part is now firmly gripped.

3. Move the part to where you need it and a second squeeze of the Virtual Industries HANDI-VAC HV-KIT-II-ESD bulb releases the part.

Applications for the Virtual Industries HANDI-VAC HV-KIT-II-ESD Tool

Applications for this Virtual Industries HANDI-VAC HV-KIT-II-ESD tool include SMT parts, metal parts, plastic parts or any item having a smooth-nonporous-surface that the rubber vacuum tweezer tip can seal against. This Virtual Industries HANDI-VAC HV-KIT-II-ESD tool can be used with any of our rubber vacuum cups ranging in size from 3/32" (2.38mm) to 3/4" (19.05mm) in diameter. Use the larger cups to pick up larger and heavier parts. For better precision in part placement see our PEN-VAC or PEN-VAC PRO-Series self contained vacuum pens.

Purchase a Virtual Industries Handi-Vac HV-KIT-II-ESD Pick-up Tool Today.
