Save 15%
Goot - RZ-852AS

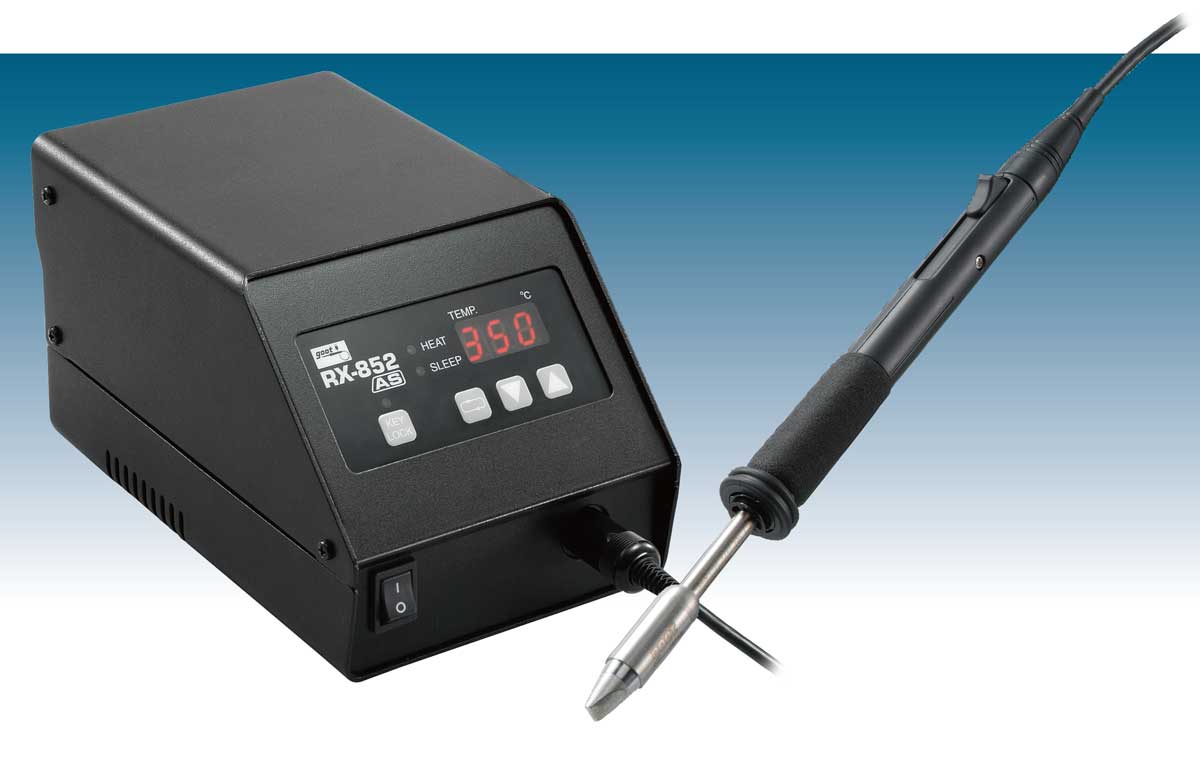

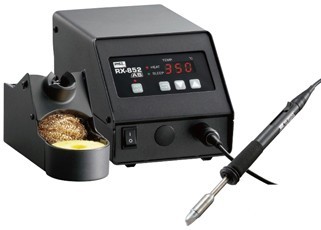

RX-852AS Goot High Power Soldering Station

List price: $879.02
$745.00
You save: $134.02 (15%)
Price in points: 745 points
RX-852AS
+

Goot RX-852AS High Power Soldering Station sold by Howard Electronics

Included

Station Unit, Soldering Iron (RX-85GAS / Tip is not included), Soldering Iron Stands (ST-21) Brass Wool & Sponges included, Inlet Power Cord


  • Compact, high output heater (150W):

Integrated into the tip, controlled by high sensitivity sensor. Even during continuous operation the tip temperature remains stable with minimal heat loss. Perfect for working with high melting point lead-free solders

  • New Ergonomically Designed Handpiece (Patent Pending):

Comfortable usability, easy handling, soft (burn resistant) power cord.

  • Easy Change Tip (Pat. P)

Slide lever to change tip. No tools or heat resistant pads are needed.

  • RX-80HRT Tips can also be used.

35 different shapes of tips are available, including the 27 optional tips for the RX-802AS. See Tips

  • Excellent heat recovery:

Compact, high output heater (150W) combined with a high sensitivity sensor means there is almost no temperature loss during heavy load continuous operation.

  • Low Heat Handpiece (Patent Pending)

Completely new design thermal insulation handpiece construction reduces heat transfer to the grip. Lowest possible handpiece heat in its class. (Based on goot® measurement methods)

  • Keypad lock function (Patent Pending)

Tamper-proof keypad lock using a password, no tools or cards are needed.

  • Alarm function (Pat. P)

When the soldering iron is left in contact with the component being soldered past the time set, this alarm sounds. This function prevents inexperienced operators from overheating the component, helping quality control.(1) RX-852AS starts the soldering-time count down, when the tip temperature exceeds the set parameter.

(2) The alarm sounds after the soldering-time preset is reached. The display will also flash twice at this point.

(3) Lift the tip from the component being soldered when the alarm sounds.



  • Calibration function (Patent Pending)

Differences between tip thermometer temperature and displayed temperature are easily corrected by inputting the offset value.

  • Sleep Function

Automatic switch-off when inactive for a preset period of time, preventing overheating.

  • Sleep Release Function
    (Pat. P) The sleep function is exited by thermal fluctuation of the tip, for example, when the tip comes into contact with the cleaner or sponge.

  • Shutdown Function
    Automatically switches off when inactive for a preset period of time. The shutdown function assures that the station is turned off even if you forget to turn off the power switch. This function can be used in conjunction with the sleep function.
  • Reliable Traceability:

We can provide periodic calibration of the unit if required and issue certification necessary for various purposes (Fees apply).

The goot RX-852AS is a compact and lightweight lead-free soldering station with excellent heat recovery. It combines sophistication and high efficiency in a compact design, promising excellence in soldering work for the lead-free generation..


Excellent Heat Recovery (PAT.)

Excellent heat recovery has been achieved by combining a 150W compact high-output heater with a high-sensitivity sensor.

Fastest in Its Class

Reaches 350°C in only 14 seconds. (Only 6 seconds when using RX-80HRT tips.)

Light and Compact Handpiece

Same size as the RX-80GAS.

Tip Replacement without Tools (PAT.)

Slide-change tip. Easy to replace a hot tip without any other tools.

Thick Tip Coating for Lead-free Soldering

All tips have extra-thick iron plating, to resist erosion by lead-free solder.

RX-80HRT Tips also Available

More than 40 tips are available, including the RX-80HRT tips.

How to Change Tips

Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.

Functions

Tip-temperature Recovery Features


Purchase a Goot RX-852AS High Power Soldering Station Today.

Vendors :
Goot
Available Voltage:
Output:
160W per tool
Maximum Temperature:
50 – 450°C
Weight:
4.8kg (10.5Lbs)
Power Cord:
1.5m (3 core cable) ground plug
Temperature Range:
50 – 450°C
Tip to ground resistance:
<2 ohms
