Save 13%

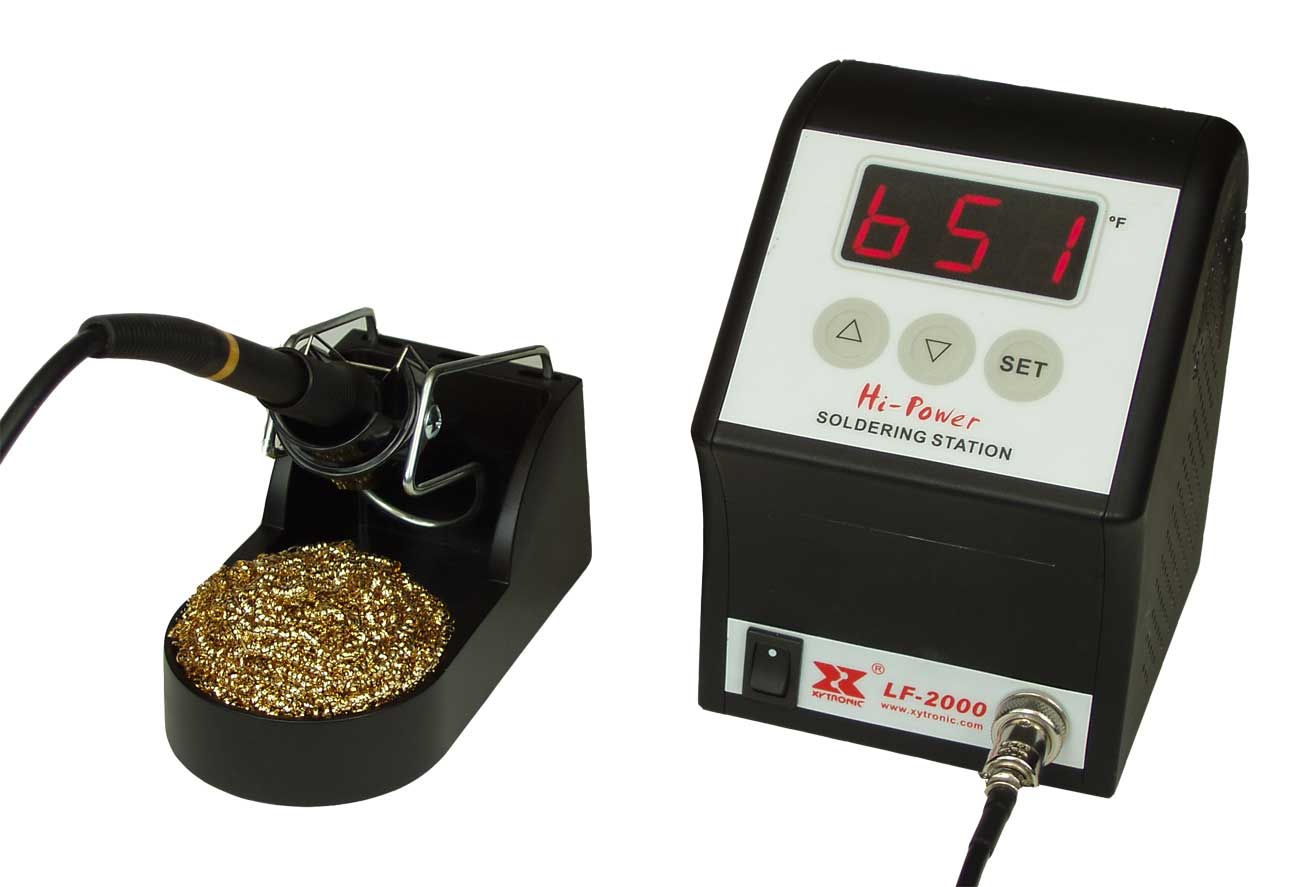

Xytronic LF-2000 Lead-Free Soldering Station

Xytronic LF-2000 Intelligent Temperature Controlled Soldering Station

List price: $159.00
$139.00
You save: $20.00 (13%)
Price in points: 139 points
LF-2000
+

The Xytronic LF-2000 Lead-Free Soldering Station is designed to handle your most challenging rework & repair jobs and is the best solution for all your soldering/desoldering equipment needs especially for the lead free applications!

Xytronic LF-2000 Lead-Free Soldering Station

The Xytronic LF-2000 Lead-Free Soldering Station high-quality soldering station has been manufactured to perform numerous tasks, while its careful design allows a number of excellent detailed features, for instance, the interface allows the control panel's angle can conform to humanism, while the huge NUMs and buttons are easy to read and set. On top of that, there is the multiplex fitting combination: provides many kinds of for the customer selects the disposition, enable the customer to obtain a more reasonable enhancement in the economic efficiency.

LF-2000 Xytronic Lead-Free Soldering Station

Engineered to meet the demanding needs of the hobbyist, service & repair technician as well as production people alike, the Xytronic LF-2000 Lead-Free Soldering Station is not only a leader in its field, but represents outstanding value in the market.

Xytronic LF-2000 Lead-Free Soldering Station Features

  • Password lock: Convenient for control
  • Auto sleep: Save power and the life of tip
  • Auto close: The station will shut down after 40 min without using
  • Minitype station: Less desktop occupation
  • Alloy aluminum shell: Block electromagnetic interfere high strength configuration and less heat cumulation
  • Real-temp modification: Real temperature can modify
  • Hi-power heater: Temperature climbs fast, favored by lead free soldering
  • Build-up grounding: Can link up ESD wrist strap
  • Xytronic type LF-2000 (station) 307K (iron) 44-510601 (Standard Tip)
Input 120 AC,
Output 32V AC, 90W
Temperature range 200 to 450°C (392 to 842°F)
Dimensions (PSU) 110 x 160 x 137mm
Weight (PSU) 2.5kg

Purchase a Xytronic LF-2000 Soldering Station sold by Howard Electronics Today!

Vendors :
Xytronic
Supplied Tip:
44-510601
Single or Dual Station:
Single
Available Voltage:
Analog or Digital:
Digital
Power Consumption:
90 Watts
Time to reach 400ºC w/cold tip:
24 sec
Thermal Load Test :
2 min 2 sec
Temperature setting range ºC:
200ºC - 450ºC
Temperature setting range ºF:
392ºF - 842ºF
Idle Temp, Stability:
±3ºC
Dimensions handpiece:
6.5" x 0.75"
Dimensions control unit:
111x158x137mm
Weight handpiece:
40 gr
Weight control unit:
5.5lbs
Tip to ground resistance:
< 0.2Ω
Tip to ground voltage:
< 0.4mv
Handpiece cord length:
53 in
Power cord length:
6' Computer Plug
Handpiece voltage:
Total peak power:
100 Watts
Nominal soldering iron power:
90 Watts
ESD Safe:
Yes
Temperature in ºC or ºF:
Yes
Temperature Adjustable:
Yes
Heater fail notification:
Yes
Zero Voltage Switching:
Yes
Sleep function:
Yes
Shutdown function:
Yes
Plug-In Handpiece:
Yes
Password Lock function:
Yes
Calibration function:
Yes
Temp. Correction Range :
+99ºC ~ -99ºC
Burn resistant cord:
Yes
Replace tip while hot:
No
Ceramic Heater insulation:
> 100Mohms
UL, CE or CSE certified:
Yes

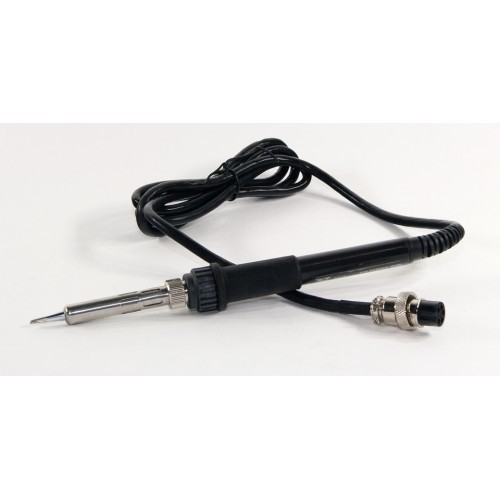

307K
$50.00

307K Xytronic Replacement Soldering Handpiece

+
Price in points: 50 points

79-310012M
$25.81 $21.95
79-310012M Xytronic Heating Element for 307K Handpiece 32 volt 100 watt
+
Price in points: 22 points
44-510601
$8.80 $7.50

Xytronic 44-510601 (.8mm 1/32") Standard Conical Soldering Tip

+
Price in points: 8 points

44-510602
$8.80 $7.50

Xytronic 44-510602 (.8mm 1/32") Chisel Soldering Tip

+
Price in points: 8 points

44-510603
$8.80 $7.50

Xytronic 44-510603 (.4mm 1/64") Extended Length Conical Soldering Tip.

+
Price in points: 8 points

44-510604
$8.80 $7.50

Xytronic 44-510604 (1.6mm 1/16") Chisel Soldering Tip

+
Price in points: 8 points

44-510605
$8.80 $7.50

Xytronic 44-510605 (3.2mm 1/8") Chisel Soldering Tip

+
Price in points: 8 points

44-510606
$8.80 $7.50

Xytronic 44-510606 Soldering Tip for 136, 136ESD, 137ESD, 456DLX, 988, LF-1600 and 107ESD, 137ESD, 456DLX and 988

+
Price in points: 8 points

44-510607
$18.55 $15.75

Xytronic 44-510607 New Mini-Wave Tip for SMD Soldering

+
Price in points: 16 points

44-510610
$8.80 $7.50

Xytronic 44-510610 (4.8mm 3/16") Chisel Soldering Tip

+
Price in points: 8 points

44-510611
$8.80 $7.50

Xytronic 44-510611 (3mm) Angled Soldering Tip

+
Price in points: 8 points

44-510623
$8.80 $7.50

44Xytronic 44-510623 (0.4mm 1/64") Conical Soldering Tip

+
Price in points: 8 points

44-510630
$17.59 $15.00

Xytronic 44-510630 Flat Pack Soldering Tip for 136, 136ESD, 137ESD, 456DLX, 988, LF-1600 and 107ESD

+
Price in points: 15 points

44-510633
$8.80 $7.50

Xytronic 44-510633 (1/16") Hoof Soldering Tip

+
Price in points: 8 points

44-510637
$16.06 $13.75

44-510637 Xytronic New Mini-Wave Soldering Tip for Drag Soldering IC's

+
Price in points: 14 points

TIPSETSOLDERING
$88.36 $75.00
TIPSETSOLDERING Xytronic Package of ten soldering tips
+
Price in points: 75 points

LF-2000 Brochure (LF-2000_brochure.pdf, 132 Kb) [Download]
