Save 15%
Goot - RX-802AS

RX-802AS GOOT New Model, Lead Free Temperature Controlled Soldering Station

List price: $407.00
$345.00
You save: $62.00 (15%)
Price in points: 345 points
RX-802AS
+

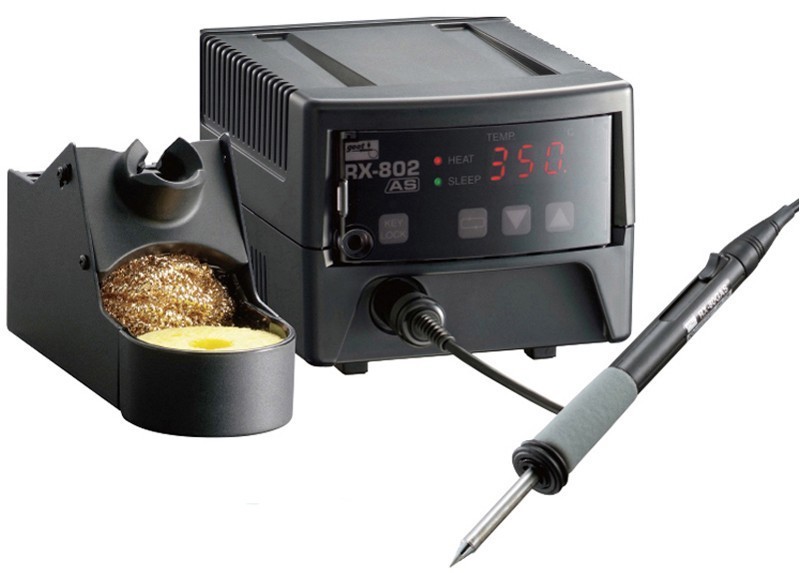

Goot RX-802AS Temperature Controlled Soldering Station sold by Howard Electronics

  • Temprature-Controlled Lead-Free Soldering Station

6 seconds to set temperature. The ultimate solution for lead-free soldering.

Integrated into the tip, controlled by high sensitivity sensor. Even during continuous operation the tip temperature remains stable with minimal heat loss. Perfect for working with high melting point lead-free solders

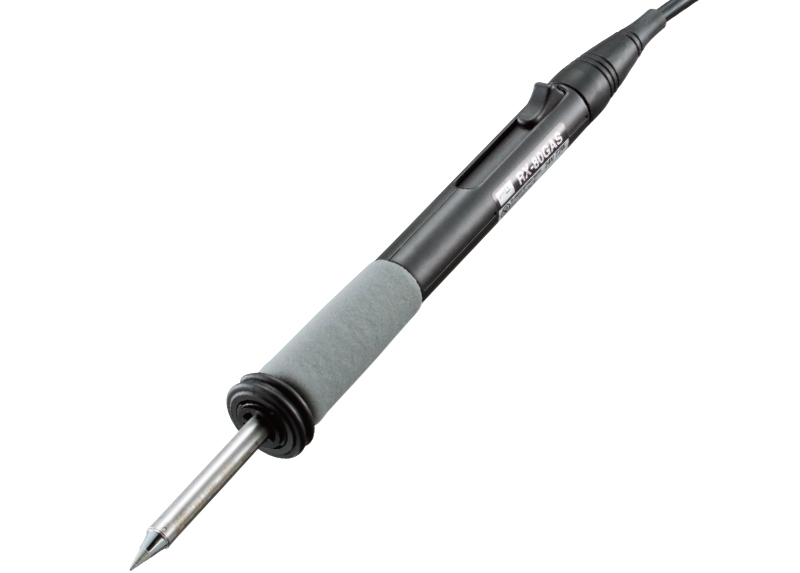

  • New Ergonomically Designed Handpiece (Patent Pending):

Comfortable usability, easy handling, soft (burn resistant) power cord. Shorter distance from grip to tip. Perfect for micro soldering.

All tips have extra-thick iron plating, to resist erosion by lead-free solder.

Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.



  • Compact, high output heater (72W):


  • Fastest in its class (Patent Pending):

Reaches set temperature in 6 seconds from cold start-up.

  • Low Heat Handpiece (Patent Pending)

Completely new design thermal insulation handpiece construction reduces heat transfer to the grip. Lowest possible handpiece heat in its class. (Based on goot® measurement methods)

  • Keypad lock function (Patent Pending)

Tamper-proof keypad lock. No need for tools to secure the keypad cover as on previous models.

  • Anti-oxidation tip (Patent Pending)

New addition. Fine solder coated grooves protect the tip from atmospheric oxidation.

Specifications

Model RX-802AS
Voltage 110V,120V,130V,220V,230V,240V AC 50/60Hz
Power Consumption 80W
Power Cord Length 1.2m
Temperature Setting Range 50–450°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance Over 100MΩ (500V DC)
Accessories Soldering Iron Stand (ST-21)

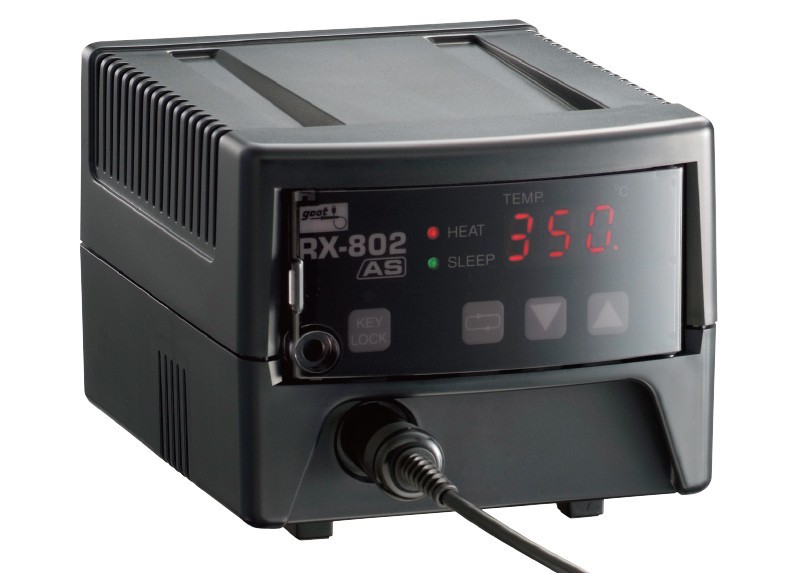

Control Unit

Output Voltage 24V AC
Dimensions 115(W) × 98(H) × 146(D)mm
Weight 1.8kg

Soldering Unit

Voltage/Consumption 24V AC / 72W
Ground Resistance Less than 2Ω
Leak Voltage Less than 2mV
Heater Nichrome heater
Cord Length 1.2m
Length 158mm (with RX-80HRT-MB)
Weight 28g (with RX-80HRT-MB)

INCLUDED IN PACKAGE:

RX-802AS Station Unit, Soldering Iron (RX-80GAS / Tip is not included), Soldering Iron Stands (ST-21) Brass Wool & Sponges included

Purchase a Goot RX-802AS (Fastest in Class) Temperature Controlled Soldering Station Today.

Vendors :
Goot
Available Voltage:
Output:
80W
Weight:
1.8 kg (4.0 lb)
