JBC JTSE-1A Hot Air Station

JTSE-1A JBC Tools High Power Hot Air Station

List price: $2,140.00
$1,754.00
You save: $386.00 (18%)
Price in points: 1754 points
JTSE-1A
+

The JBC Tools JTSE-1A is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs. The JBC Tools JTSE-1A Hot Air Station features two work modes -manual or profile- to manage efficiently the temperature and the hot air flow. Using the menu in the JBC Tools JTSE-1A Hot Air Station, you can personalize over 20 parameters to help manage the soldering process.

JBC Tools JTSE-1A Hot Air Station

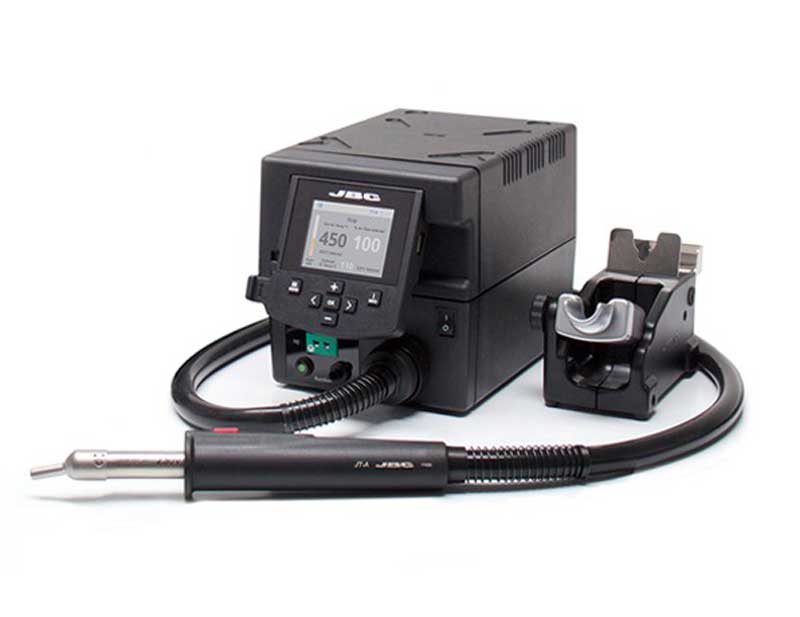

The JBC Tools JTSE-1A Hot Air Station works with the JT-TA heater and incorporates a USB connector (type B).

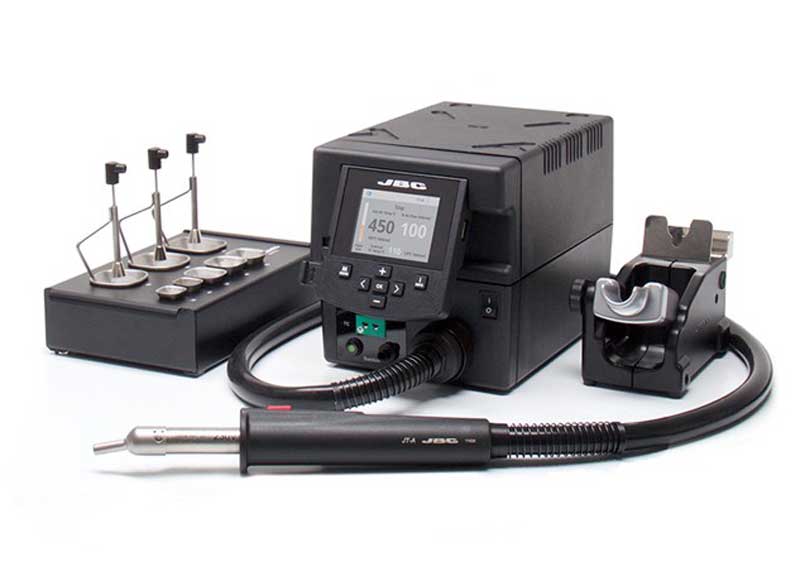

The JBC Tools JTSE-1A comes with the complete extractor desk and the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.

JBC Tools JTSE-1A High Power Hot Air Station Specification

Weight 5,7 kg (12,6 lb)
Size See individual modules
Voltage(AC) 120V
Input Fuse 8A
Nominal Power 700W
Temperature selection Room Temperature / 150-450 ºC (300-840 ºF)
Ambient operating temp. 10-40 ºC (50-104 ºF)
ESD Safe
Air Flow Range 6 - 45 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Rated Current 6A
Package weight 6.7 kg (14.9 lb)
Package dimensions 475x370x200 mm


JBC Tool JTSE-1A Hot Air Station Accessories Included.

Control Unit: Hot Air
Tools: JT-T1A 100V/120V - Heater hose set
Stands: JT-SD
Accessories: PH218 Thermocouple Type K, T2050 Tripod ø39 mm, T2250 Tripod ø85 mm, JN2020 Nozzle for JT heater, JN2015 Nozzle for JT heater, JN2012 Nozzle for JT heater, E2052 Extractor 20 x 20 mm, E2064 Extractor 20 x 26 mm, E2184 Extractor 24 x 24 mm, P2220 Protector 10 x 10 mm, P2235 Protector 12 x 17 mm, P4000 Protector 12,4 x 12,5 mm, P2230 Protector 15 x 15 mm, P4010 Protector 17 x 17 mm, 0008752 Extractor Desk

Click links for Extra Tripods, Nozzles, Extractors, and Protectors and Heating Elements

Process to desolder using JBC Tools JTSE-1A hot air station and extractors

Tech Note: This is the only process that I know of that almost eliminates all of the solder on the leads during extraction, plus all leads are as formed as they were on the board. This allows the I.C. to be reinstalled again in case it was prematurely removed.
