Save 23%
ST02031204 HEIScope 85mm HF Dual Illuminated Track Stand

ST02031204 HEIScope 85mm HF Dual Illuminated Track Stand

In Stock!

We Guarantee Lowest Prices!
Low Price Guarantee
Find a Better price
We'll Beat It.
List price: $350.97
$269.00
You save: $81.97 (23%)
Price in points: 269 points
ST02031204
+

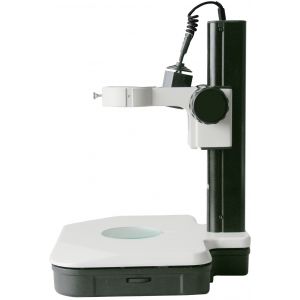

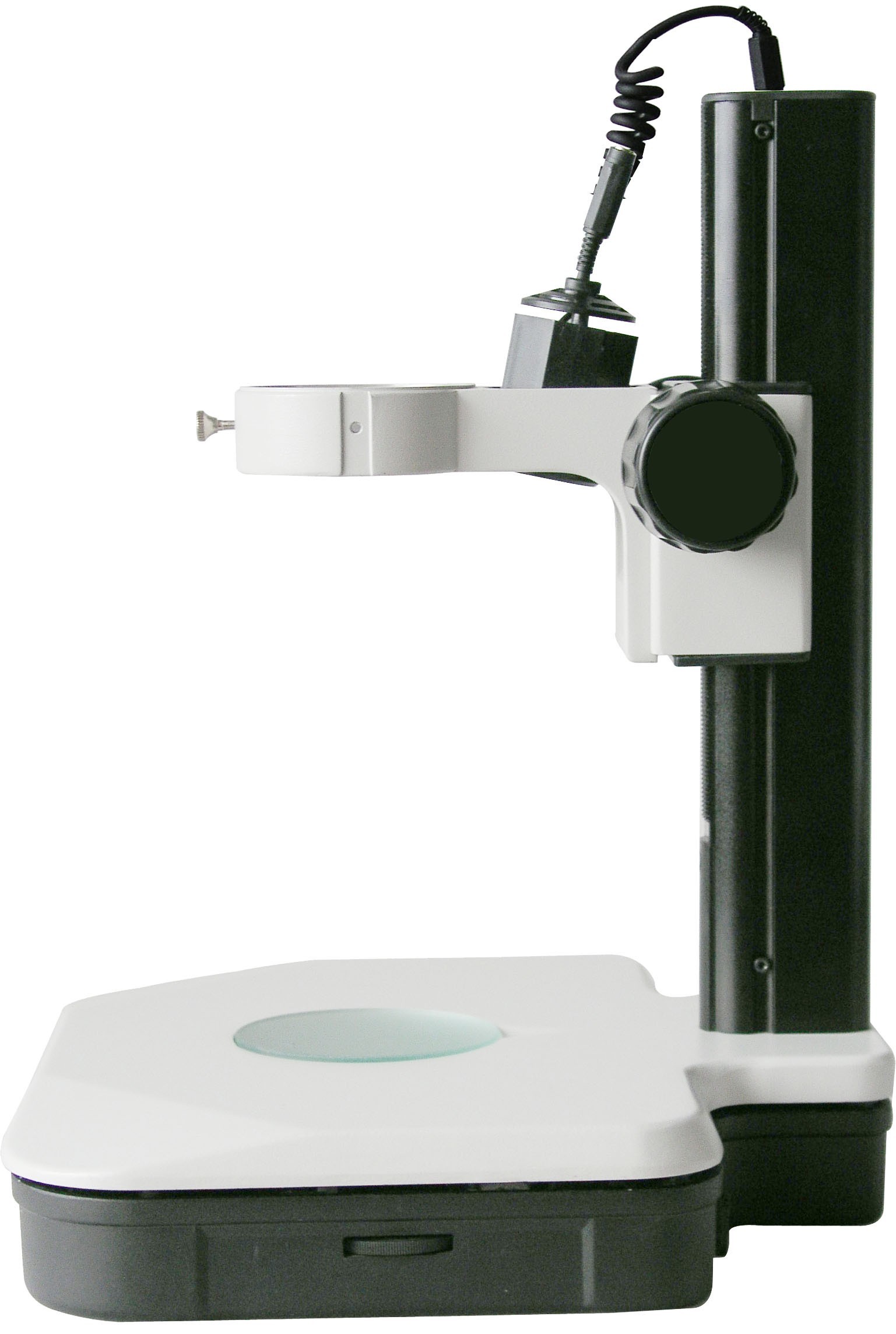

HEIScope ST02031204 85mm HF Dual Illuminated Track Stand. The HEIScope ST02031204 has a Top Halogen Spot Light and Bottom Fluorescent with 7.5" of Vertical Travel.

ST02031204 HEIScope 85mm Dual Illuminated Track Stand

ST02031204 HEIScope 85mm Track Stand scope holder, 12v 15w halogen bulb for top lighting, 9w 2u fluorescent lamp for bottom lighting. Ac 85-265v 5060hz. Travel distance 250mm, vertical length 325mm. The base size is 320×305×60mm, with a 95×6mm glass plate, applicable to sz and fs series microscope.

Warranty: 1 Year

ST02031204 HeiScope 85mm Dual Illuminated Track Stand Specifications

Track Stand Stand Type Track Stand
Holder Adapter Type 85mm Scope Holder
Track Length 325mm
Base Type Illumination Base
Base Shape Rectangle
Stand Throat Depth 121mm
Base Dimensions 320x305x60mm
Focus Mode Manual
Focus Distance 200mm
Coarse Focus Distance per Rotation 23mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Illumination Type HF Dual Illuminated Light
Top Illumination Oblique Top Spot Light
Top Illumination Type Halogen Light
Bottom Illumination Type Fluorescent Light
Input Voltage AC 90~265V 50/60Hz
Output Voltage DC 12V
Output Power 24W
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 5.37kg (11.84lbs)
Dimensions 320x305x385mm (12.598x12.008x15.157″)
Microscope Plate Black White Plate Plate Type Black White Plate
Plate Material Plastic
Plate Size Φ95x5mm
Color Black,White
Net Weight 0.04kg (0.09lbs)
Matte Finish Glass Plate Plate Type Matte Finish Glass Plate
Plate Material Matte Finish Glass
Plate Size 95x5mm
Net Weight 0.09kg (0.20lbs)
Aperture Diaphragm Transmitted Illumination Iris Aperture Diaphragm Mounting Position Vertical Illuminator
Aperture Diaphragm Outer Dia. Φ91mm
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 0.03kg (0.07lbs)
Applied To SA0216 Series Illumination Bas

Purchase a HEIScope ST02031203 83mm Dual Illuminated Track Stand sold by Howard Electronics Today!

Part No.:
ST02031204
Vendors :
HEIScope

Track Stand Instruction Manual (Track_Stand_Instruction_Manual.pdf, 213 Kb) [Download]
