Save 24%
View Solutions ST02011204 85mm HF Dual Illuminated Post Stand

View Solutions ST02011204 85mm HF Dual Illuminated Post Stand

List price: $388.77
$295.00
You save: $93.77 (24%)
Price in points: 295 points
ST02011204
+

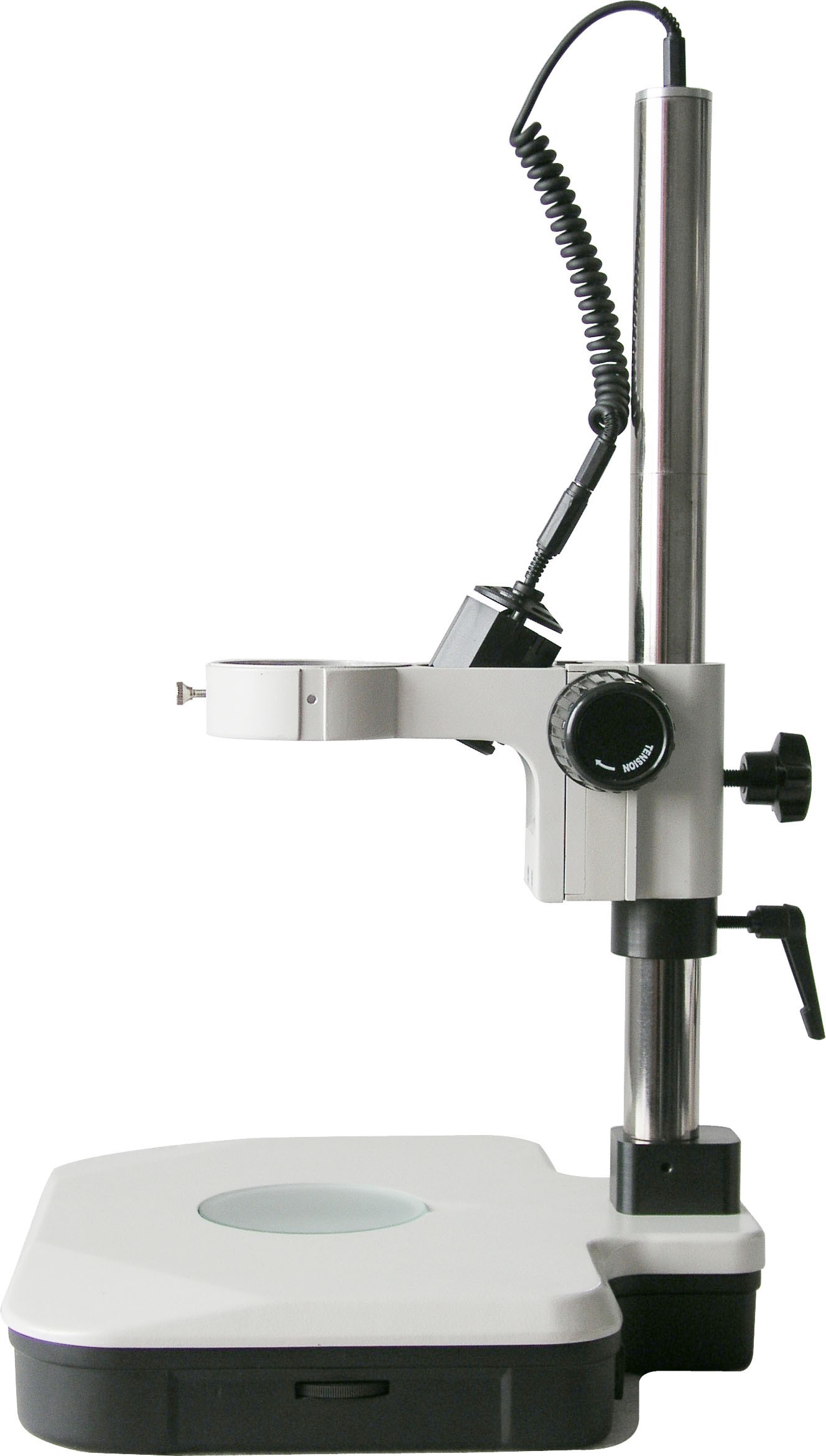

View Solutions ST02011204 Series HF Dual Illuminated Post Stand with 85mm Microscope Opening.

View Solutions ST02011204 85mm HF Dual Illuminated Post Stand

The View Solutions ST02011204 85mm Top Halogen Spot Light and Bottom Fluorescent Light Stand. The View Solutions ST02011204 has a 85mm Scope Holder. The View Solutions ST02011204 Vertical Post Height: 305mm. The View Solutions ST02011204 Base Dimensions: 320x305x60mm. The View Solutions ST02011204 HF Dual Illuminated Light. Top Illumination: Oblique Top Spot Light.

Warranty: 1 Year

View Solutions ST02011104 85mm Post Stand Specifications

Post Stand Stand Type Post Stand
Holder Adapter Type 85mm Scope Holder
Vertical Post Height 305mm
Maximum Vertical Post Extended Length 150mm
Vertical Post Dia. Φ32mm
Base Type Illumination Base
Base Shape Rectangle
Base Mounting Size M29x1.5-6h
Base Dimensions 320x305x60mm
Focus Mode Manual
Focus Distance 50mm
Coarse Focus Distance per Rotation 21mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Center Distance from the Hole to the Scope Holder 150mm
Illumination Type HF Dual Illuminated Light
Top Illumination Oblique Top Spot Light
Top Illumination Type Halogen Light
Bottom Illumination Type Fluorescent Light
Input Voltage AC 90~265V 50/60Hz
Output Voltage DC 12V
Output Power 24W
Power Cord Connector Type USA 3 Pins
Power Cable Length 1.8m
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 5.36kg (11.82lbs)
Dimensions 320x305x518mm (12.598x12.008x20.394″)
Microscope Plate Black White Plate Plate Type Black White Plate
Plate Material Plastic
Plate Size Φ95x5mm
Color Black,White
Net Weight 0.04kg (0.09lbs)
Matte Finish Glass Plate Plate Type Matte Finish Glass Plate
Plate Material Matte Finish Glass
Plate Size Φ95x5mm
Net Weight 0.09kg (0.20lbs)
Aperture Diaphragm Transmitted Illumination Iris Aperture Diaphragm Mounting Position Vertical Illuminator
Aperture Diaphragm Outer Dia. 91mm
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 0.03kg (0.07lbs)
Applied To SA0216 Series Illumination Base

Purchase a View Solutions ST02011204 85mm Dual Illuminated Post Stand sold by Howard Electronics Today!

Part No.:
ST02011204
Vendors :
View Solutions

76mm Post Stand Instruction Manual (HEI-PS-OS_76mm_Post_Stand_Instruction_Manual.pdf, 31 Kb) [Download]
