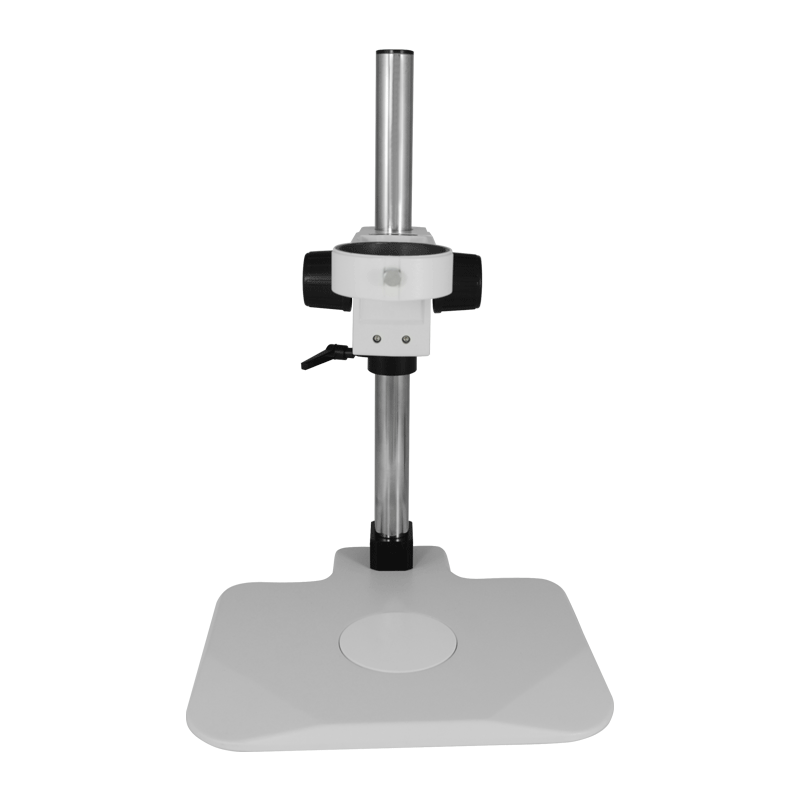

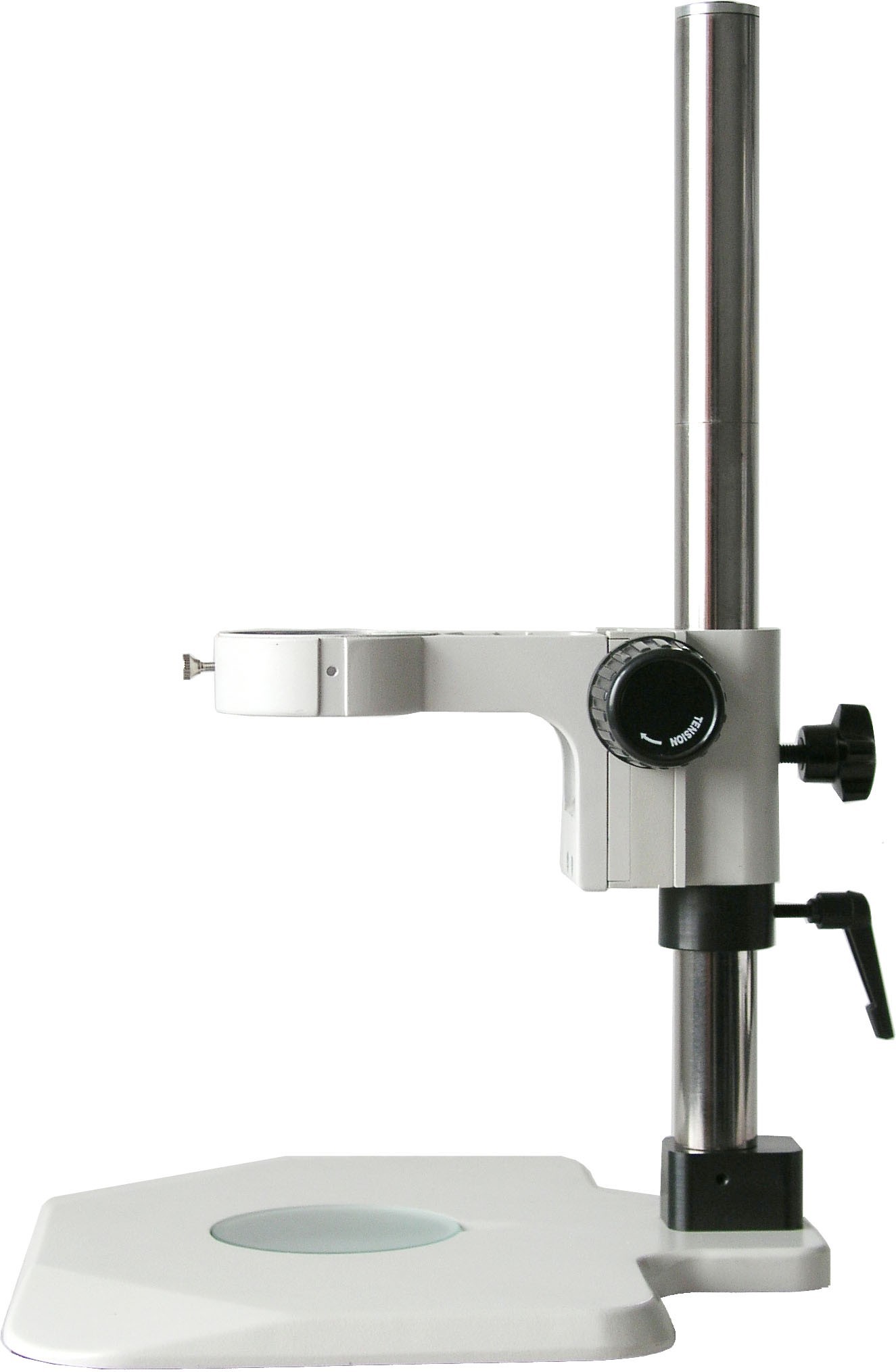

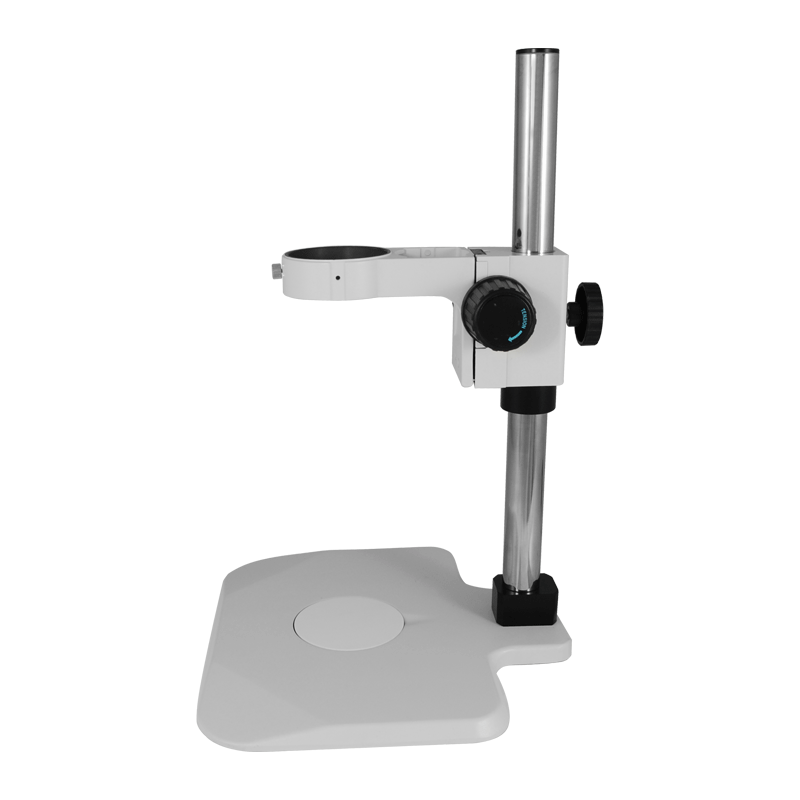

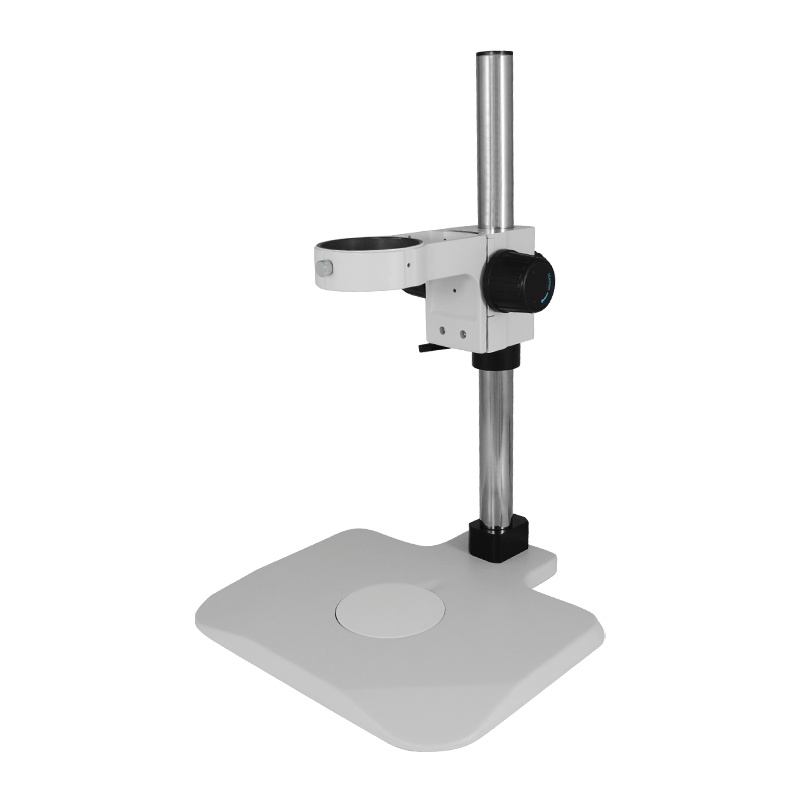

View Solutions ST02011104 85mm Post Stand

List price: $236.01
$215.00
You save: $21.01 (9%)
ST02011104
+

View Solutions ST02011104 85mm Post Stand has vertical height of 305mm and base dimension of 320x305x16mm. The View Solutions ST02011104 85mm Post Stand is perfect for any microscopes.

View Solutions ST02011104 85mm Post Stand

ST02011104 85mm Scope Holder. Vertical Post Height: 305mm. Vertical Post Dia.: 32mm. Base Dimensions: 320x305x16mm. Focus Distance: 50mm. Black White Plate. Plate Material: Plastic. Plate Size: 95x5mm.
Warranty: 1 Year

View Solutions ST02011104 85mm Post Stand Specifications

Post Stand Stand Type Post Stand
Holder Adapter Type Φ85mm Scope Holder
Vertical Post Height 305mm
Maximum Vertical Post Extended Length 150mm
Vertical Post Dia. Φ32mm
Base Type Table Base (No Light)
Base Shape Rectangle
Base Mounting Size M29x1.5-6h
Base Dimensions 320x305x16mm
Focus Mode Manual
Focus Distance 50mm
Coarse Focus Distance per Rotation 21mm
Focusing Knob Tightness Adjustable Tightness Adjustable
Center Distance from the Hole to the Scope Holder 150mm
Surface Treatment Spray Paint
Material Metal
Color White
Net Weight 3.25kg (7.17lbs)
Dimensions 320x305x474mm (12.598x12.008x18.661″)
Microscope Plate Black White Plate Plate Type Black White Plate
Plate Material Plastic
Plate Size Φ95x5mm
Color Black,White
Net Weight 0.04kg (0.09lbs)

Purchase a View Solutions ST02011104 85mm Post Stand sold by Howard Electronics Today!

Part No.:
ST02011104
Vendors :
View Solutions

Post Stand Instruction Manual (Post_Stand_Instruction_Manual.pdf, 167 Kb) [Download]
