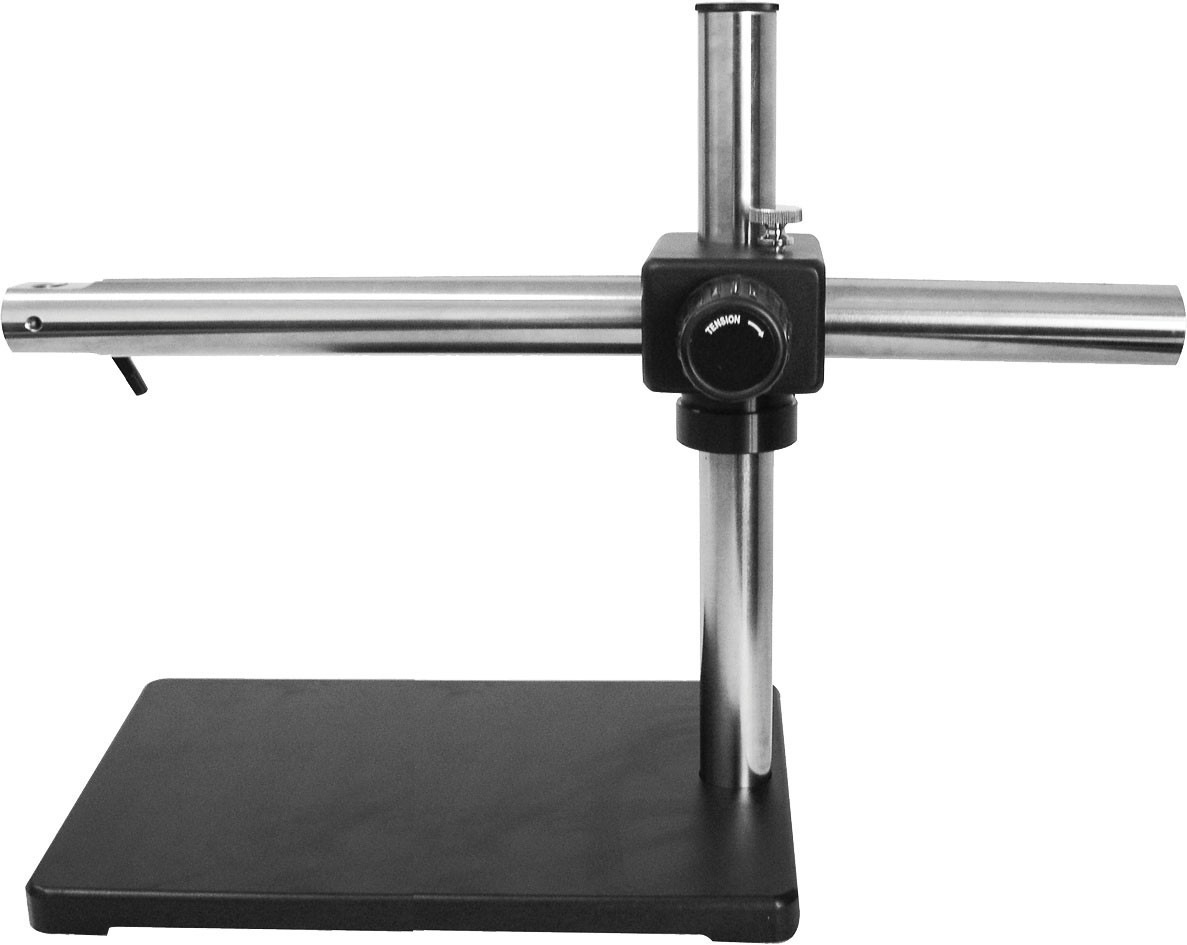

View Solutions HEI-BS-BB ST02051301 Boom Stand with Big Base
View Solutions ST02051301 Boom Stand with Big Base have solid metal vertical and horizontal post with a locking ring on the vertical post for stopping. The diameter of the mounting hole on the front or the horizontal bar is 37.2mm.
View Solutions ST02051301 Boom Stand with Big Base Specification
| Stand Type | Boom Stand |
| Vertical Post Height | 408mm |
| Maximum Vertical Post Extended Length | 254mm |
| Vertical Post Dia. | Φ37.2mm |
| Cross Adapter Type | Cross Hole Adapter |
| Horizontal Arm Type | Horizontal Post |
| Horizontal Arm Length | 544mm |
| Horizontal Dia. | Φ37.2mm |
| Mounting Hole on the End of Horizontal Arm | 16mm |
| Horizontal Rotation Angle | 360° Rotatable |
| Horizontal Arm Travel Distance on Z-Axis | 266mm |
| Horizontal Arm Stretch Range | 487mm (19.173″) |
| Horizontal Arm Maximum Load | 9.50kg (20.94lbs) |
| Horizontal Arm Travel Mode on Horizontal Direction | Manual |
| Horizontal Arm Travel Mode on Z Direction | Manual |
| Base Type | Heavy Duty Base |
| Base Shape | Rectangle |
| Base Dimensions | 394x380x12mm |
| Surface Treatment | Electroplating Black |
| Material | Metal |
| Color | Black |
| Net Weight | 23.46kg (51.72lbs) |
| Dimensions | 544x395x395mm (21.417x15.551x15.551″) |
Purchase a View Solutions ST02051301 Boom Stand with Big Base sold by Howard Electronics Today!
Net Weight:
38.25 lbs.
Part No.:
ST02051301
