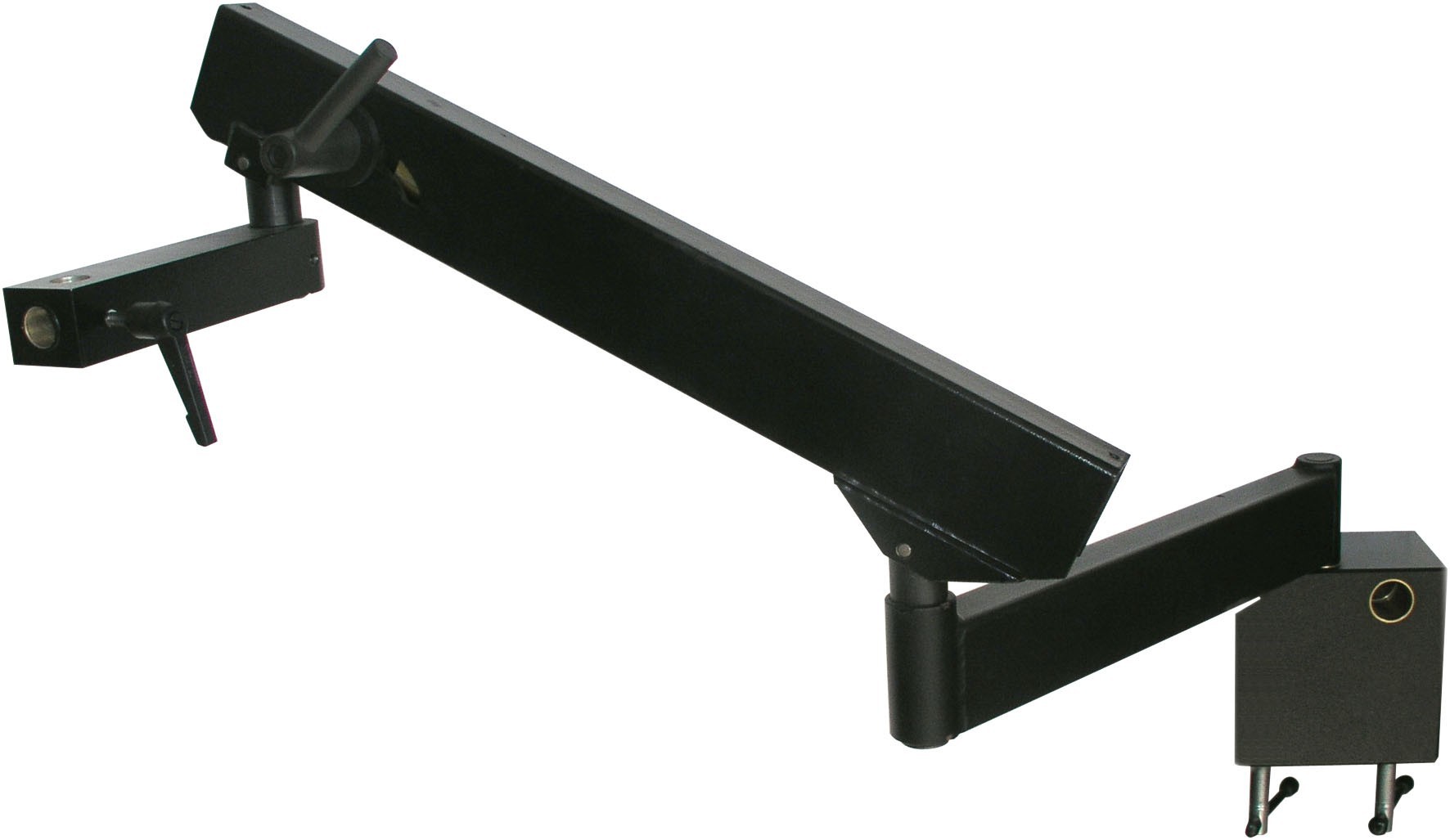

HEI-AA-TC Articulating Arm

HEI-AA-TC ST02071201 HEI Scope Articulating Arm

List price: $306.78
$185.00
You save: $121.78 (40%)
Price in points: 185 points
HEI-AA-TC
+

HEI-AA-TC HEI Scope Articulating Arm. ST02071201

◇ Weight: 12.78lbs (5.8kg)
◇ Size of Stand Clamp: 3.94×2.95×4.53" (100×75×115mm)
◇ Maximal Opening of Clamp: 1.575" (40mm)
◇ Length of Horizontal Arm: 13" (330mm)
◇ Length of Front Arm: 6.7" (170mm)
◇ Revolution Degree: 360°free revolution in horizontal direction
◇ Maximal Radius: 31.89" (810mm); Minimal Radius: 13" (330 mm)
◇ Raising and Lowering range in vertical direction: 19.685" (500mm)
◇ Maximal Opening Angle in vertical direction: 19.7" (500mm)
◇ Diameter of Mounting hole in the front of horizontal bar: 5/8" (15.875mm)
◇ Diameter of the mounting hole at the end of the base: 0.87" (22.2mm)
◇ Maximal bearing load on the front of horizontal bar: 21lbs (9.526kg)
◇ With a table clamp
◇ Must purchase E-Arm for Microscopes

Part No.:
HEI-AA-TC
Vendors :
HEIScope

Articulating Arm Instruction Manual (Flexible_Arm_Instruction_Manual.pdf, 232 Kb) [Download]
