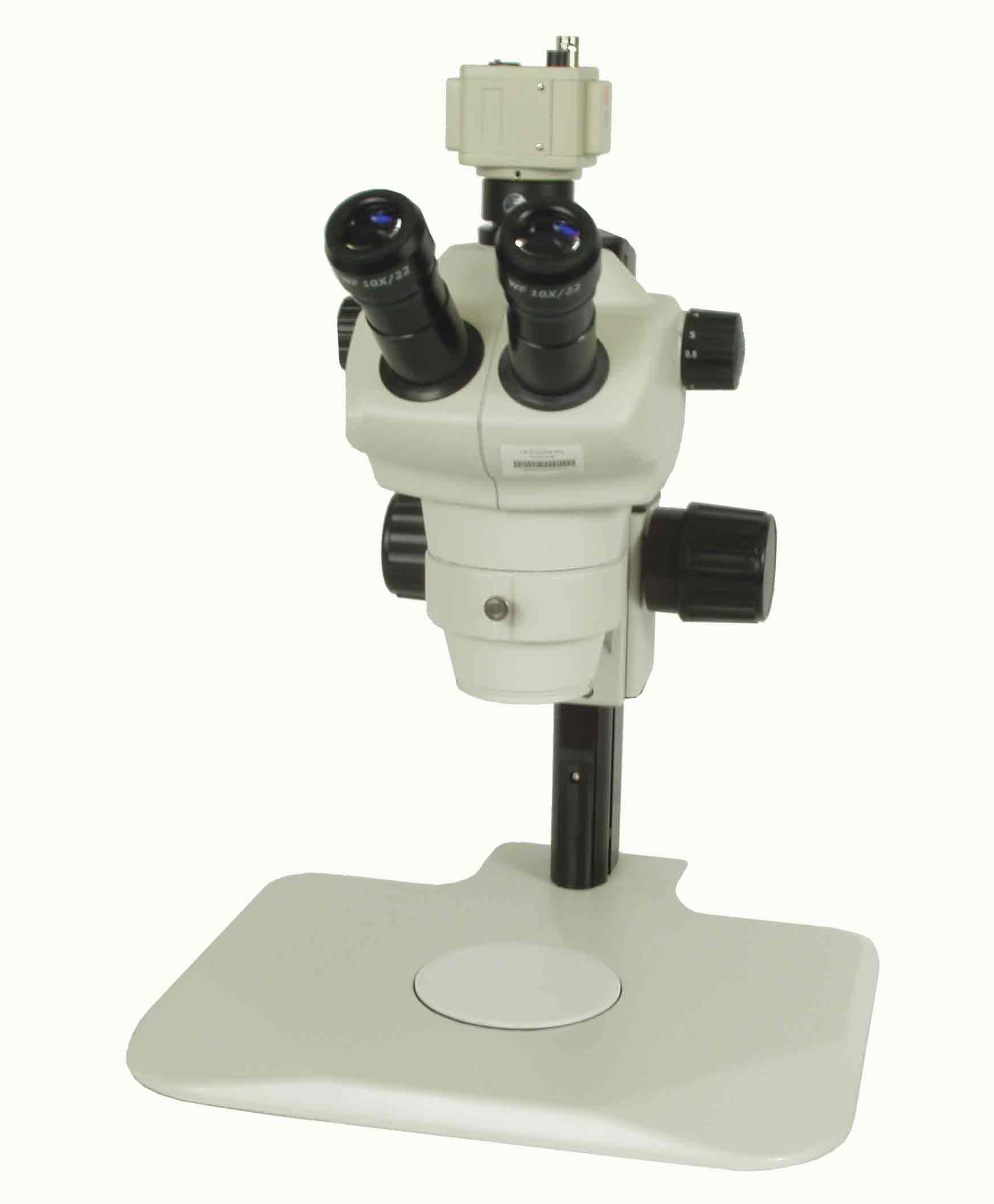

HEI-SZII-CCD-TS SZII Stereo Zoom "True" Trinocular Microscope & 1/3 CCD Color Camera

List price: $1,789.60
$1,129.00
You save: $660.60 (37%)
HEI-SZII-CCD-TS
+

HEIScope's HEI-SZII-CCD True Trinocular System includes: HEI-CCD-13 Color CCD 1/3 Camera with Digital Signal Processing with 480 TV lines of Resolution, BNC Video Cable and 12v Power Supply on a Track Stand with no light, and a Built in 0.4x Video Coupler.

Stereo image with longer depth of field & higher resolution
Zoom magnification: 8X-50X, zoom ratio 1:6.3
Zooming knob: with click-stops.
Eyepieces inclination at 45º
Interpupillary distance: 52mm-75mm
Diopter: ±5 Diopter
Working distance: 115mm (1x)
Video Image Port: True Trinocular, built in 0.4x video coupler.
Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
Can be used for teaching, scientific research, electronic testing and more.

Optical Data:

Auxiliary LensWorking Distance (mm)

Eyepieces

10X (Φ22mm)15X (Φ16mm)20X (Φ12.5mm)30X (Φ7mm)
Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)
1X1158~50x27.5~4.412~75x20~3.216~100x15.6~2.524~150x8.8~1.4
0.5X2114~25x55~8.86~37.5x40~6.48~50x31.2~512~75x17.6~2.8
2X43.516~100x13.8~2.224~150x10~1.632~200x7.8~1.348~300x4.4~0.7
Vendors :
HEIScope
HEI-AL-A05
$212.30 $125.00
HEI-AL-A05, HEIScope
HeiScope HEI-AL-A05 0.5x auxiliary lens for the HEI-SZII series microscopes SZ403102
+

HEI-AL-A20
$212.30 $125.00
HEI-AL-A20 SZII 2.0x Auxiliary lens SZ403105
+
HEI-EP-A10
$194.70 $100.00

HEI-EP-A10 SZ402101 10x Adjustable Wide Focus Eyepiece for the SZII Scopes


HEI-EP-A15
$224.15 $125.00
HEI-EP-A15 SZ402103 15x Wide Focus eyepiece for the SZII Scopes

HEI-EP-A20
$230.08 $150.00

HEI-EP-A20 SZ402104 20x Wide Focus eyepiece for the SZII Scopes

SZII Instruction Manual (SZ2_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 214 Kb) [Download]

Track Stand Manual (Track_Stand_Instruction_Manual.pdf, 213 Kb) [Download]

CCD 1/3" Color Camera Manual (HEI-CCD-13Manual__CCD_Color_Camera.pdf, 95 Kb) [Download]
