HeiScope - HEI-SZII-USB-BS-AR

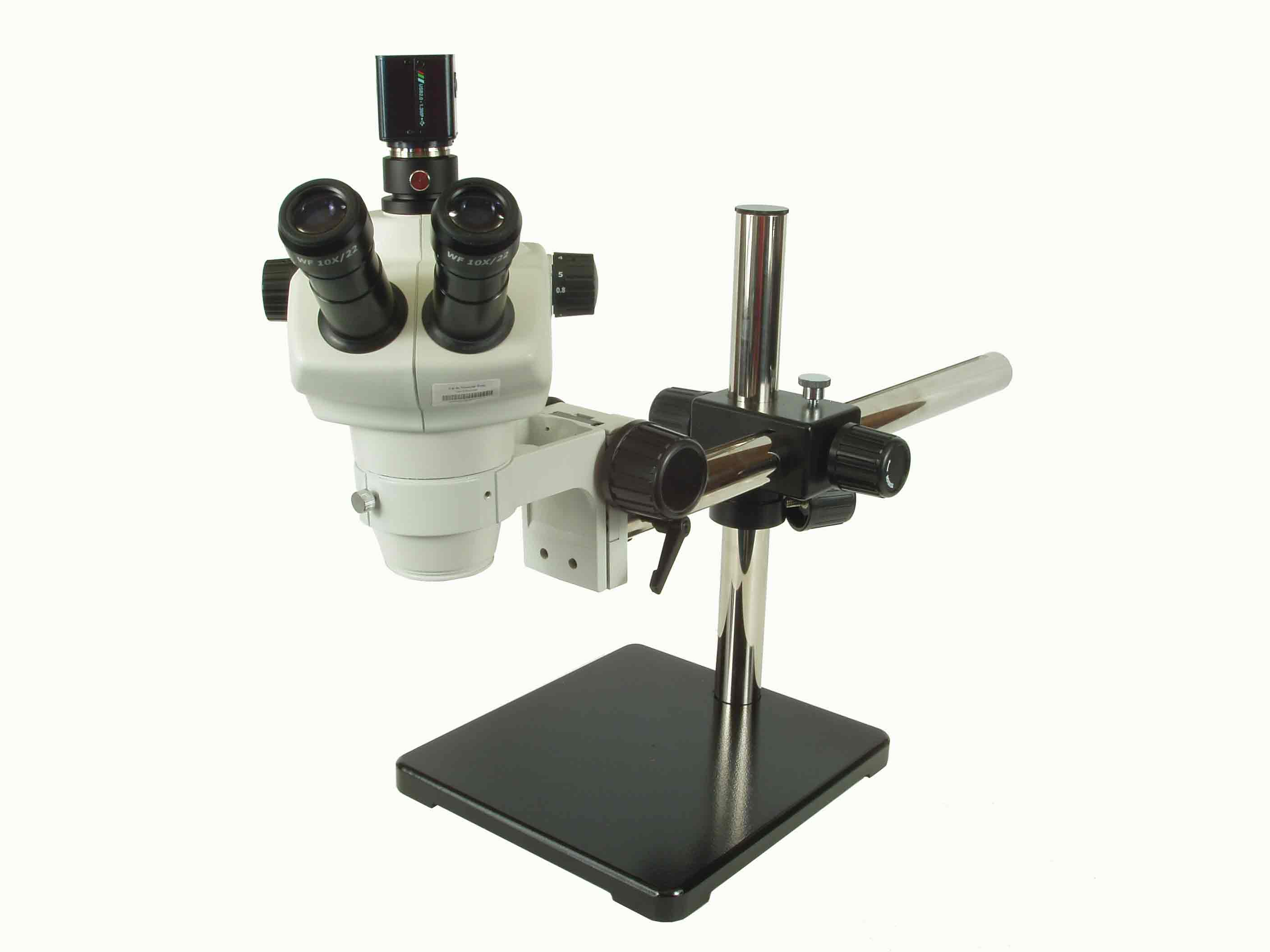

HEI-SZII-USB-BS-AR SZII Stereo Zoom "True" Trinocular Microscope with USB Color Camera

List price: $2,857.59
$1,940.00
You save: $917.59 (32%)
Price in points: 1940 points
HEI-SZII-USB-BS-AR
+

HEIScope's HEI-SZII-USB True Trinocular System includes: HEI-UCM-1300 2.0 Mega Pixel Color CMOS USB2.0 High Resolution (1280x1024) Camera with Digital Imaging and Measurement Software on a Boom Stand with fiber optic illuminator and annular ring light, and a Built in 0.4x Video Coupler.

  • Stereo image with longer depth of field & higher resolution
  • Zoom magnification: 8X-50X, zoom ratio 1:6.3
  • Zooming knob: with click-stops.
  • Eyepieces inclination at 45º
  • Interpupillary distance: 52mm-75mm
  • Diopter: ±5 Diopter
  • Working distance: 115mm (1x)
  • Video Image Port: True Trinocular, built in 0.4x video coupler.
  • Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
  • Can be used for teaching, scientific research, electronic testing and more.

Optical Data:

Auxiliary LensWorking Distance (mm)

Eyepieces

10X (Φ22mm)15X (Φ16mm)20X (Φ12.5mm)30X (Φ7mm)
Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)Mag.FOV (mm)
1X1158~50x27.5~4.412~75x20~3.216~100x15.6~2.524~150x8.8~1.4
0.5X2114~25x55~8.86~37.5x40~6.48~50x31.2~512~75x17.6~2.8
2X43.516~100x13.8~2.224~150x10~1.632~200x7.8~1.348~300x4.4~0.7


Vendors :
HEIScope
Auxiliary Lens :
1.0x ring adaptor
Camera :
2.0 Mega Pixel Color CMOS USB2.0 with Measurement Software
Video Coupler :
Built In 0.4x Video Coupler
Stand :
Boom Stand
Illumination :
Fiber Optic Illuminator with Annular Ring Light
Diopter Adjustment :
± 5 diopter
Microscope Cover :
Yes (ESD Safe)
Interpupillary Adjustment :
52mm-75mm
Package Eyepieces :
10x
Zoom Range of the Microscope Body:
8X-50X, zoom ratio 1:6.3
Zoom Rate:
zoom ratio 1:6.3
Optional Eyepieces:
15x / 20x
Field of View:
31mm ~ 4.9mm
Working Distance:
4.5" or 115mm
Binocular Angle of View:
45°
HEI-AL-A05
$212.30 $125.00
HEIScope, HEI-AL-A05
HeiScope HEI-AL-A05 0.5x auxiliary lens for the HEI-SZII series microscopes SZ403102
+
Price in points: 125 points

HEI-AL-A20
$212.30 $125.00
HEI-AL-A20 SZII 2.0x Auxiliary lens SZ403105
+
Price in points: 125 points
HEI-EP-A10
$194.70 $100.00

HEI-EP-A10 SZ402101 10x Adjustable Wide Focus Eyepiece for the SZII Scopes

Price in points: 100 points

HEI-EP-A15
$224.15 $125.00
HEI-EP-A15 SZ402103 15x Wide Focus eyepiece for the SZII Scopes
Price in points: 125 points

HEI-EP-A20
$230.08 $125.00

HEI-EP-A20 SZ402104 20x Wide Focus eyepiece for the SZII Scopes

Price in points: 125 points

SZII Instruction Manual (SZ2_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 214 Kb) [Download]

Boom Stand Instruction Manual (Boom_Stand_Instruction_Manual.pdf, 181 Kb) [Download]

Fiber Optic Illuminator with Annular Ring Light Instruction Manual (MA312101-MA312102_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 186 Kb) [Download]

Camera and Imaging Software Manual (UCM1300Manual.pdf, 1,436 Kb) [Download]
