HeiScope - HEI-MP7-FR

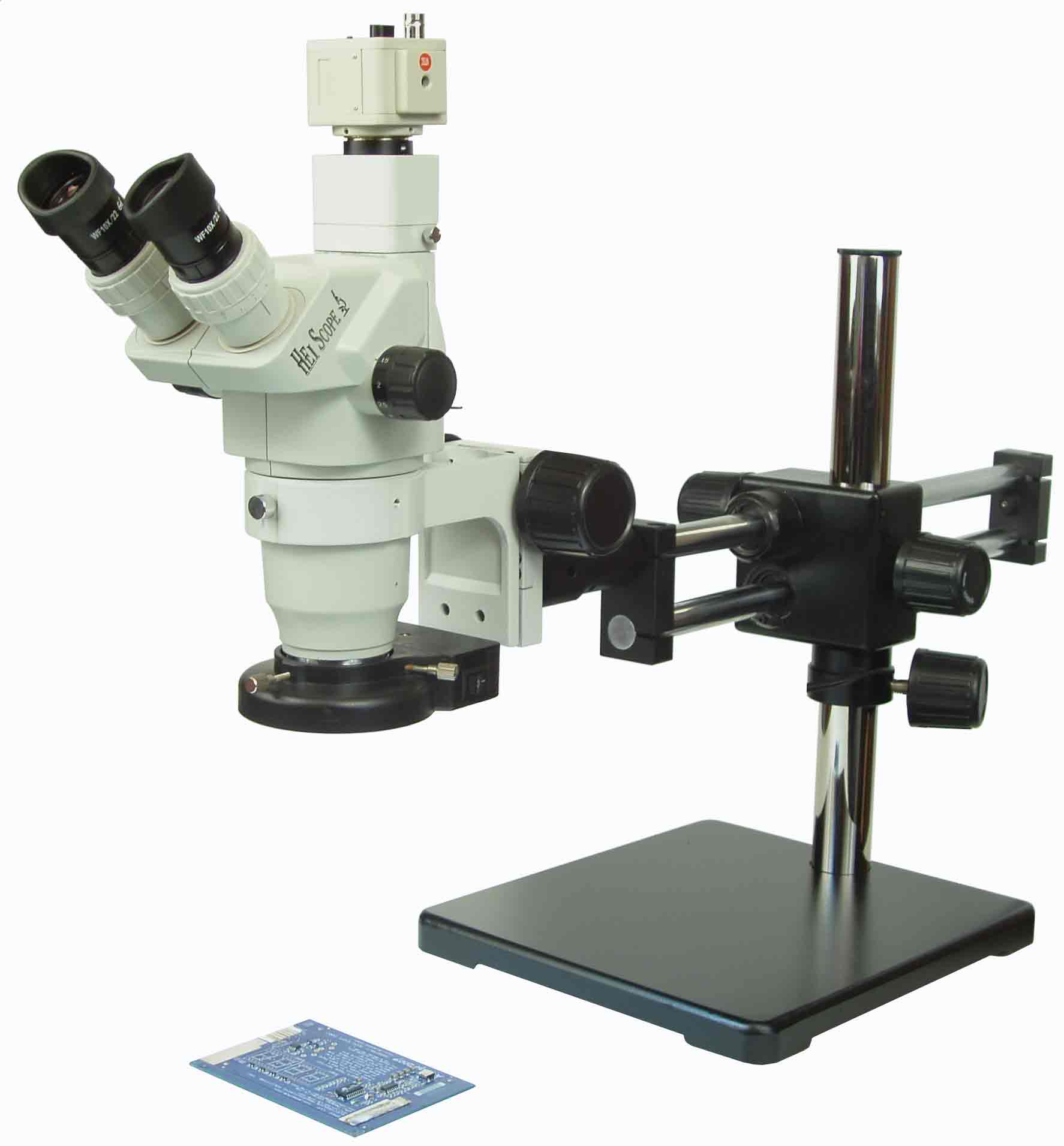

HEI-MP7-FR HEIScope Trinocular Microscope Package

List price: $2,862.18
$2,425.50
You save: $436.68 (15%)
Price in points: 2426 points
HEI-MP7-FR
+

HEI-MP7-FR includes a Stereo Zoom trinocular head, 10x eyepieces, eye guards, dual arm boom stand with 76mm e-arm, ring adapter, 0.5x auxiliary lens, 0.5x video coupler, 1/3" CCD color camera, video frame grabber, fluorescent ring light and ESD safe microscope cover. 10x - 68x with WD of 7".

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 1/3" CCD Color Camera with B&C Cable (480 TV Lines)
  • Pneumatic Arm with Table Clamp
  • 12 watt fluorescent ring lamp
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • 0.5x video coupler, 1/3" CCD color camera
  • Color Monitor Not Included
  • 5 year warranty!
  • Total magnification = auxiliary lens x objective x eyepieces

    Specs

    OpticalVideo
    Magnification
    Ring Adapter6.7x - 45x20x - 135x
    0.5x lens3.4x - 22.5x10x - 68x
    Field of View
    Ring Adapter32.8mm - 4.9mm18mm - 2.6mm
    0.5x lens65.7mm - 9.8mm36mm - 5.2mm
    Working Distance
    ring adapter100mm100mm
    0.5x lens177mm177mm

    Optical Specifications:

    Objective0.3X0.4X

    0.5X

    0.75X1X1.5X2.0X
    Working Distance (mm)287mm

    217mm

    177mm

    117mm

    100mm

    47mm

    26mm

    10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

    13.4x-90.0x

    FOV 109.5-16.382.1-12.265.7-9.8

    43.8-6.5

    32.8-4.9

    21.9-3.3

    16.4-2.4

    15X Mag.

    3.0x-20.3x

    4.0x-27.0x

    5.0x-33.8x

    7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
    FOV 79.6-11.9

    59.7-8.9

    47.8-7.1

    31.8-4.7

    23.9-3.6

    15.9-2.4

    11.9-1.8

    20X Mag.

    4.0x-27.0x

    5.4x-36.0x

    6.7x-45.0x

    10.1x-67.5x

    13.4x-90.0x

    20.1x-135.0x

    26.8x-180x

    FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
    25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
    FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
    30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
    FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5


    Vendors :
    HEIScope
    Auxiliary Lens :
    0.5x
    Camera :
    1/3" CCD Color Camera
    Video Coupler :
    0.5x
    Stand :
    Dual Arm Boom Stand
    Illumination :
    Flourescent Ring Light
    Diopter Adjustment :
    ± 5 diopter
    Microscope Cover :
    Yes (ESD Safe)
    Interpupillary Adjustment :
    52mm-75mm
    Package Eyepieces :
    10x
    Zoom Range of the Microscope Body:
    0.67x ~ 4.5x
    Zoom Rate:
    1 : 6.5
    Optional Eyepieces:
    10x \ 15x \ 20x \ 25x \ 30x
    Objective Lens:
    0.3x \ 0.5x \ 0.75x \ 1.5x \ 2x
    Field of View:
    31mm ~ 4.9mm
    Working Distance:
    3.9" or 100mm
    Binocular Angle of View:
    45°
