Save 15%
HeiScope - HEI-MZ-USB-LED

HEI-MZ-USB-LED HEI Micro Zoom Video Inspection System with LED light, 5.17 MegaPixel Color Camera

List price: $2,059.27
$1,745.10
You save: $314.17 (15%)
Price in points: 1746 points
HEI-MZ-USB-LED
+

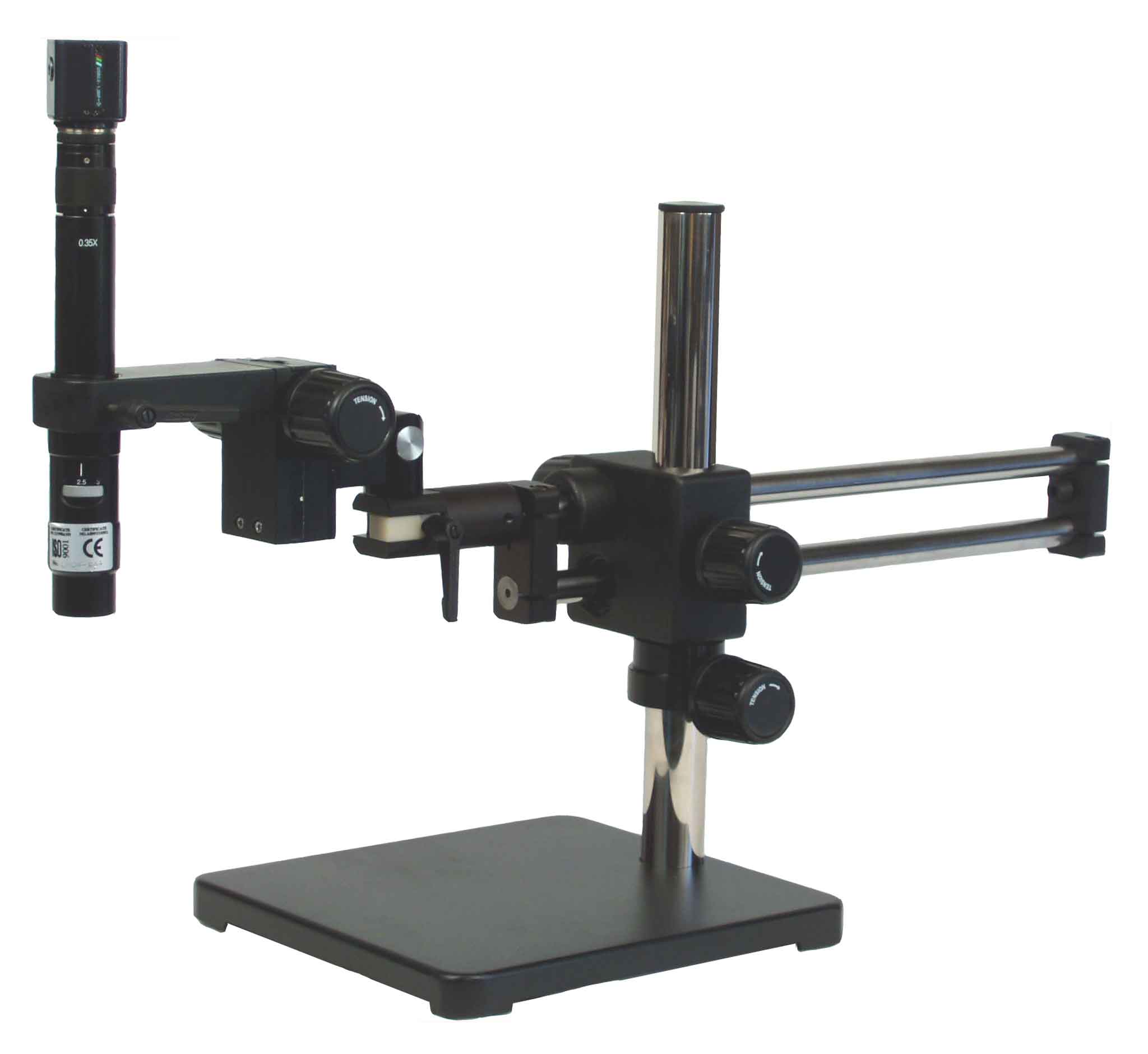

HeiScope Micro Zoom Video Inspection System

HEI-MZ-USB includes a Micro Zoom Lens and 0.5x Coupler; providing you with 15x to 101x magnification using a 14 inch monitor using a 0.75 objective lens. USB v2.0, 5.17 MegaPixel Color CMOS high-resolution digital camera connects to a PC's USB v2.0 port providing you with clear and distortion free image. Dual Arm Boom Stand is ideal as a work platform. E-Arm mounts directly onto the end of the Boom Stand via a 5/8" mounting dowel (industry standard). With LED Ring light Guide. 5 year warranty on optics.

  • HEI Micro Zoom Video Inspection System (15x to 101x magnification on a 14" monitor) using a 0.75 objective lens (included)
  • USB Camera v2.0 5.17 MegaPixel Color CMOS Camera w/VIS-Plus Imaging Software
  • True 5.17 Mega Pixels 11fps at 2592 x 1944 Res. live video
  • USB Camera Specifications
  • Vis v2.0 Pro Imaging Software
  • Dual Arm Boom Stand with 39mm E-Arm
  • Micro Zoom Lens and 0.5x Coupler with 0.75 objective lens
  • Can be used for teaching, scientific research, electronic inspection and more.
  • 5 year warranty!

Specifications:

Zoom Range of the Microscope Body 0.68x ~ 4.5x
Zoom Rate 6.6
Objective Lens 0.3x \ 0.5x \ 0.75x \ 1.5x \ 2x

CCD Couplers:

Coupler 0.38X 0.5X 0.75X 1.0X 1.5X 2.0X
Focus Distance 67mm 90mm 135mm 180mm 270mm 360mm
Optical Length Approx. 76mm 97mm 103mm 130mm 189mm 252mm
The FOV angle of the objective 7.6 7.6 7.6 7.6 7.6

7.6

The FOV diameter of the image side 6.1 mm 6.1 mm 6.1 mm 6.1 mm 6.1 mm 6.1 mm

Optical Specifications:

Based on 14" Monitor & 1/3 CCD Camera

Coupler 0.38x 0.5x 0.75x 1.0x 1.5x 2.0x

Working Distance mm

Auxiliary

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

Mag.

FOV mm

0.3X 4.65x-31x 77-12 6x-41x 59-9 9x-61x 39-6 12x-81x 29-4 18x-121x 19.6-3 24x-162x 14.7-2 331
0.5X 7.8x-51x 46-7 10x-68x 35-5 15x-101x 23.5-4 20x-135x 17.6-3 31x-203x 11.8-2 41x-270x 8.8-1.3 198
0.75X 11.6x-77x 31-4.7 15x-101x 23.5-3.6 23x-152x 15.7-2.4 30.6x-202x 12-1.8 46x-304x 7.8-1.2 61x-405x 6-0.9 131
1.0X 15.5x-102x 23-3 20x-135x 17.6-2.7 30.6x-202x 12-1.8 41x-270x 9-1 61x-405x

6-0.9

81.6x-540x 4-0.7 96
1.5X 23x-154x 15-2.3 31x-203x 11.8-1.8 46x-304x 7.8-1.2 61x-405x 6-0.9 92x-607x 4-0.6 122x-810x 3-0.4 63
2.0X 31x-205x 11.6-1.7 41x-270x 8.8-1.3 61x-405x 6-0.9 81.6x-540x 4-0.7 122x-810x 3-0.4 163x-1080x 2-0.3 46


Vendors :
HEIScope

MZ Micro Zoom Instruction Manual (MZ_Series_Video_Zoom_Microscope_Instruction_Manual.pdf, 253 Kb) [Download]

Dual Arm Boon Stand Manual (Dual_Arm_Stand_Instruction_Manual.pdf, 230 Kb) [Download]

LED Manual (HEI-RL-LED-60_LED_Ring_Light_Instruction_Manual.pdf, 54 Kb) [Download]
