HeiScope - HEI-VM-TS

HEI-VM-TS HEIScope LCD 8" Zoom Inspection System on Track Stand

List price: $2,122.96
$1,799.00
You save: $323.96 (15%)
Price in points: 1799 points
HEI-VM-TS
+

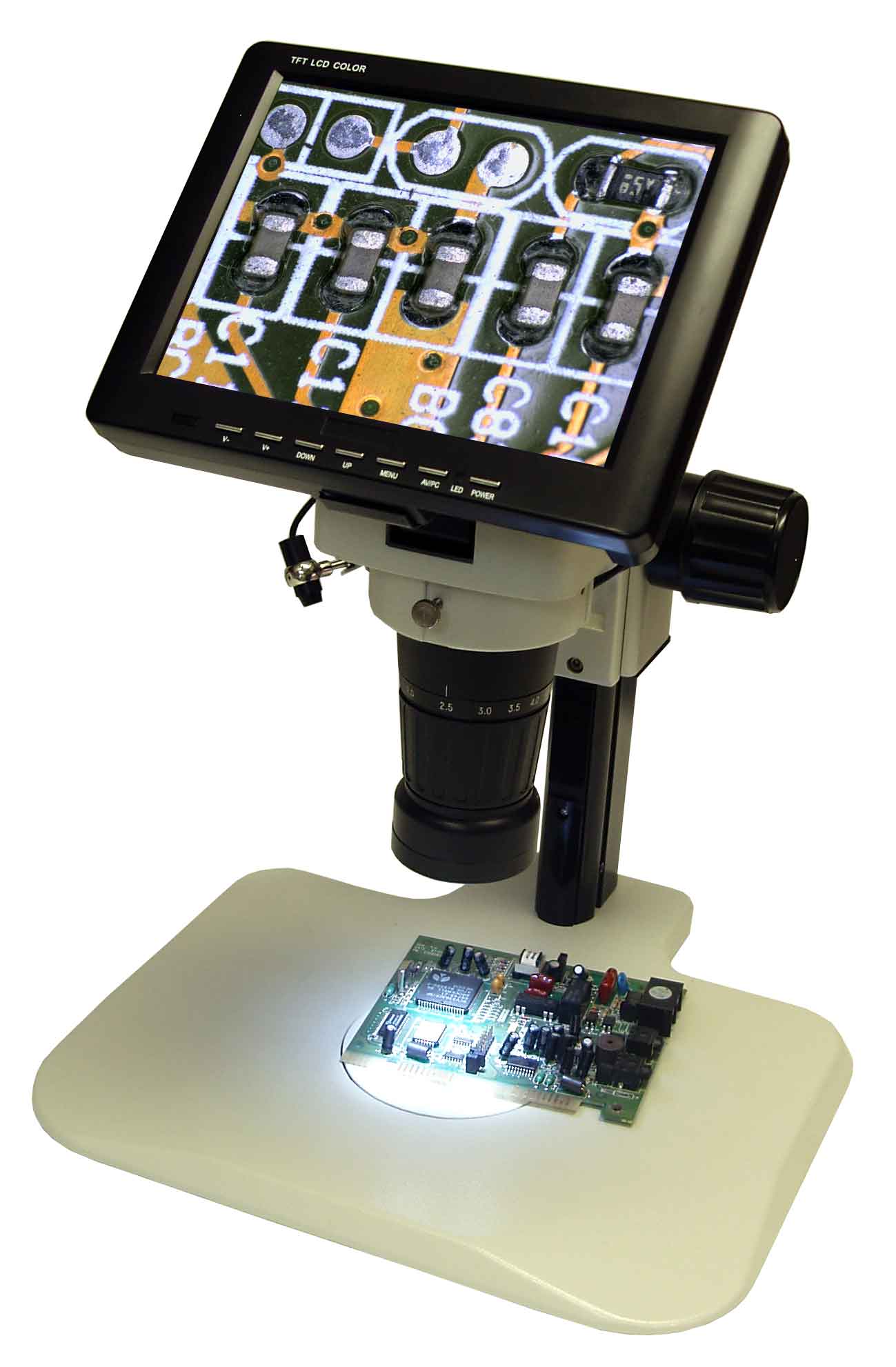

HEIScope HEI-VM-TS High Resolution LCD Zoom Inspection System Microscope includes a Video Zoom microscope with a 8" viewable monitor on a HEI-TS-NL Track Stand.

HEIScope HEI-VM-TS 8" LCD Zoom Inspection Microscope

HEIScope HEI-VM-TS High Resolution LCD Zoom Inspection Microscope System includes a Video Zoom microscope with a 8" viewable monitor (Native resolution: 800 × 600). Dot pitch: 0.297mm, Contrast: 300:1, Viewing Angle: about 150°, Response Time: ≤25ms, Brightness: 250cd/m2, Video Output: BNC (PAL / NTSC). Total magnification. ( 8" = 3.3x - 147x). The HEIScope HEI-VM-TS has a zoom body of 0.7-4.5x with detents with a zoom ratio of 1:6.5. Optional objective lens are available. Built in LED ring light with adjustable brightness and laser pointer for accurate inspection of small parts.

  • HEIScope HEI-VM-TS LCD Video Microscope (Total magnification: (8" LCD 3.3x - 147x)
  • 8" Viewable LCD Monitor (16MS high definition color)
  • Purchase in Packages with selected stand.
  • LED ring light: DC 12V, 0.5mA with adjustable brightness
  • Viewing Angle: about 150° (Adjustable)
  • Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X
  • Video Output: BNC (PAL / NTSC)
  • Laser pointer: DC 5V
  • Used for teaching, scientific research, electronic testing and more.
  • One year optics warranty - One year on Monitor.
  • Power Supply: AC 85-265V, 50/60Hz

HEIScope HEI-VM-TS 8" LCD Monitor Specifications

Viewable: 8" Viewing Angle: about 150°
800 x 600 8" inch monitor Response Time:≤25ms
Dot pitch: 0.297mm Brightness: 300cd/m 2 for 10 inch monitor
Contrast: 350:1 for 8 inch monitor Video Output: BNC (PAL / NTSC)

HEIScope HEI-VM-TS 8" LCD Microscope Optic Specifications

Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

HEIScope HEI-VM-TS 8" LCD Microscope Accessories

Optional illuminator is available
Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

HEIScope HEI-VM-TS 8" LCD Microscope Auxiliary Lens Magnification

HEIScope HEI-VM-TS Zoom Range Magnification with 8 inch Monitor W.D.(mm)
0.7 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
0.3x 4.6x 6.3x 9.5x 12.7x 15.8x 19.0x 22.2x 25.3x 29.7x 331
0.5x 7.7x 10.6x 15.9x 21.1x 26.4x 31.7x 37.0x 42.2x 49.5x 198
0.75x 11.6x 15.8x 23.8x 31.7x 39.6 47.5x 55.4x 63.3x 74.3x 131
1.0x Standard 15.4x 21.1x 31.7x 42.2x 52.8x 63.3x 73.9x 84.4x 99.1x 96
1.5x 23.1x 31.7x 47.6x 63.3x 79.2x 95.0x 110.9x 126.6x 148.6x 63
2.0x 30.8x 42.2x 63.4x 84.4x 105.6x 126.6x 147.8x 168.8x 198.1x 46

HEIScope HEI-VM-TS 8" LCD Microscope Optical Data

Coupler

0.5x

Auxiliary Lens Magnification FOV mm Working Distance
0.3x 3.3x~22x 58.8~8.9 331mm (13")
0.5x 6x~37x 35.2~5.3 198mm (7.8")
0.75x 8x~55x 23.5~3.6 131mm (5.15")
1.0x 11x~74x 17.6~2.7 96mm (3.8")
1.5x 17x~110x 11.8~1.8 63mm (2.5")
2.0x 22x~147x 8.8~1.3 46mm (1.8")

Purchase a HEIScope HEI-VM-TS 8" LCD Microscope with Track Stand sold by Howard Electronics Today!

ESD Safe:
Yes
Vendors :
HEIScope
Video Coupler :
0.5x
Focus Distance:
100mm
The FOV angle of the objective:
19.5°
Stand :
Track Stand
Illumination :
LED ring light: DC 12V, 0.5mA with adjustable brightness
Microscope Cover :
Yes (ESD Safe)
Optional Objective Lens:
0.3x, 0.5x, 0.75x, 1x, 1.5x, 2.0x
Zoom Range of the Microscope Body:
0.7x ~ 4.5x
Zoom Rate:
1 : 6.5
Objective Lens:
1.0x
Field of View:
23.5mm ~ 3.6mm
Working Distance:
96mm (3.8")
Binocular Angle of View:
about 150° (Adjustable)
HEI-MZO-07
$165.06 $75.00
HEI-MZO-07 HEI Scope 0.75X objective lens for Micro Zoom MZ103103
Price in points: 75 points

HEI-MZO-10
$165.06 $110.00
HEI-MZO-10 HEI Scope 1.0X objective lens for Micro Zoom MZ103104
Price in points: 110 points

HEI-MZO-15
$224.15 $95.00
HEI-MZO-15 HEI Scope 1.5X objective lens for Micro Zoom MZ103105
Price in points: 95 points

HEI-MZO-20
$224.15 $125.00
HEI-MZO-20 HEI Scope 2.0X objective lens for Micro Zoom MZ103106
Price in points: 125 points

HEI-MZO-05
$165.06 $75.00
HEI-MZO-05 HEI Scope 0.5X objective lens for Micro Zoom MZ103102
Price in points: 75 points

HEI-MZO-03
$165.06 $75.00
HEI-MZO-03 HEI Scope 0.3X objective lens for Micro Zoom MZ103101
Price in points: 75 points

HEI-VM-LCD-SVIDEO
$29.26 $24.95
HEI-VM-LCD-SVIDEO 1.5m BNC cable, providing a S-Video Output to connect with the other monitor or Frame Graber and Computer
Price in points: 25 points

HEI-VM-35
$318.44 $270.00

HEI-VM-35 35 degree angle attachment for LCD Scope MV191101

Price in points: 270 points

HEI-361104
$316.15 $268.00
HEI-361104 HeiScope Polarizer for LCD Microscope
Price in points: 268 points

HEI-VM-LCD-BNC
Contact us for a price
HEI-VM-LCD-BNC HeiScope 1.5m BNC cable, providing a Video Output to connect with the other Monitor or Video Frame Grabber

LCD Manual (vm-lcd-manual.pdf, 415 Kb) [Download]

Track Stand Instruction Manual (Track_Stand_Instruction_Manual.pdf, 213 Kb) [Download]
