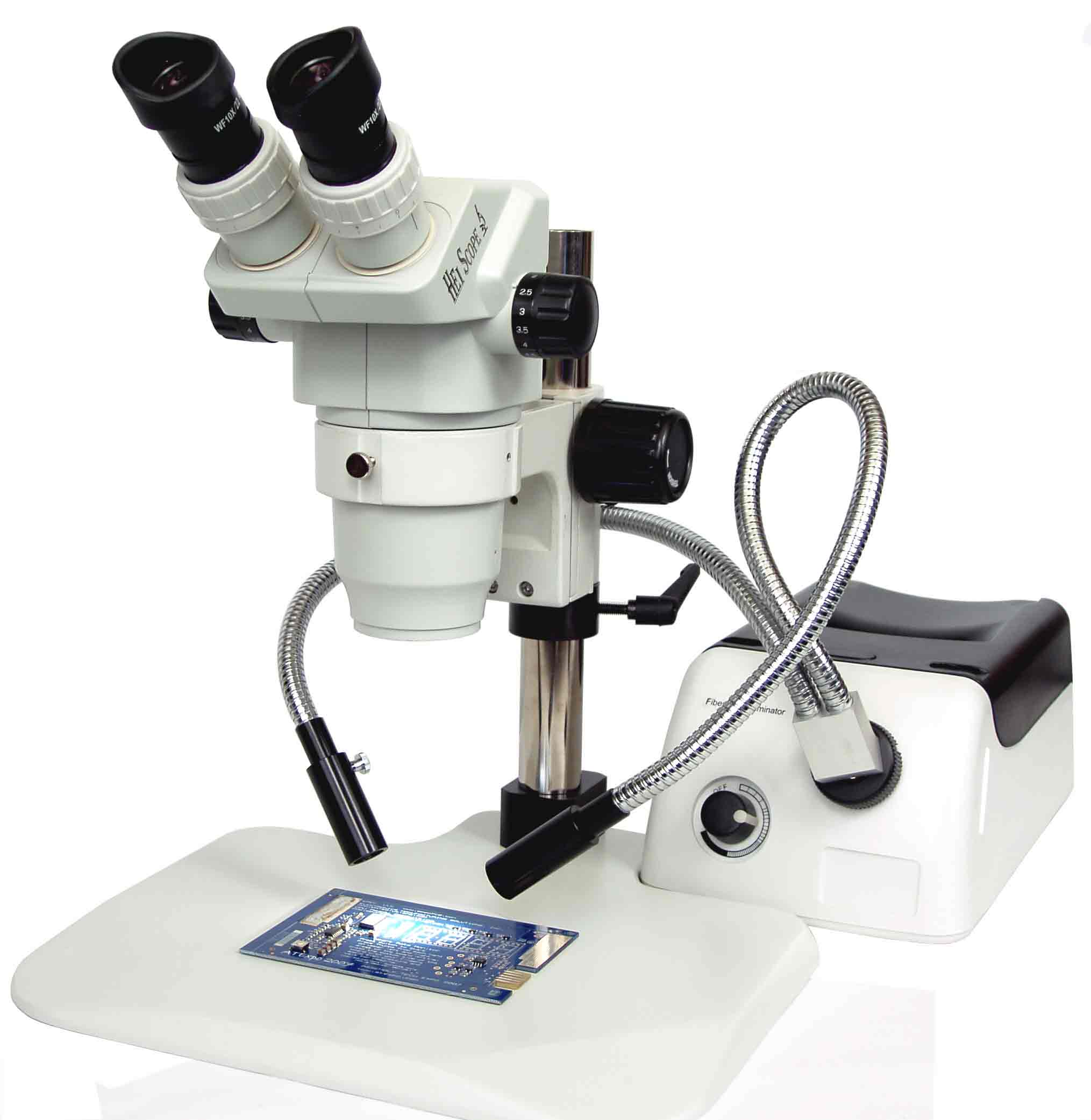

HEI-MP1-DP HEIScope Stereo Zoom Binocular Microscope Package

List price: $1,476.13
$1,186.00
You save: $290.13 (20%)
HEI-MP1-DP
+

HEI-MP1-DP includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, post stand with 76mm focus rack, 0.5x auxiliary lens, ring adapter, fiber optic illuminator, dual pipe light guide and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • Post Stand with 76mm e-arm ( 6.6lbs)
  • 150 Watt Fiber Optic Illuminator with Dual Pipe Light
  • Dual diopter adjustments
  • Focusable eyepieces
  • Can be used for teaching, scientific research, electronic testing and more.
  • 5 year warranty!
In this Package:
SZ05011121 Stereo Zoom Binocular Microscope Body
ST02011102 76mm Post Stand
ML02311111 Fiber Optic Illuminator
ML25921101 Dual Pipe Light Guide
SZ19024211 0.5 Auxilliary Lens

Optical Specifications:

Objective 0.3X 0.4X

0.5X

0.75X 1X 1.5X 2.0X
Working Distance (mm) 287mm

217mm

177mm

117mm

100mm

47mm

26mm

10X Mag. 2.0x-13.5x 2.7x-18.0x 3.4x-22.5x 5.0x-33.8x 6.7x-45.0x 10.1x-67.5x

13.4x-90.0x

FOV 109.5-16.3 82.1-12.2 65.7-9.8

43.8-6.5

32.8-4.9

21.9-3.3

16.4-2.4

15X Mag.

3.0x-20.3x

4.0x-27.0x

5.0x-33.8x

7.5x-50.6x 10.1x-67.5x 15.1x-101.3x 20.1x-135x
FOV 79.6-11.9

59.7-8.9

47.8-7.1

31.8-4.7

23.9-3.6

15.9-2.4

11.9-1.8

20X Mag.

4.0x-27.0x

5.4x-36.0x

6.7x-45.0x

10.1x-67.5x

13.4x-90.0x

20.1x-135.0x

26.8x-180x

FOV 59.7-8.9 44.8-6.7 35.8-5.3 23.9-3.6 17.9-2.7 11.9-1.8 9-1.3
25X Mag. 5.0x-33.8x 6.7x-45.0x 8.4x-56.3x 12.6x-84.4x 16.8-112.5x 25.1x-168.8x 33.5x-225x
FOV 44.8-6.7 33.6-5.0 26.9-4.0 17.9-2.7 13.4-2.0 9.0-1.3 6.7-1.0
30X Mag. 6x-40.5x 8x-54x 10x-67.5x 15x-101x 20x-135x 30x-202x 40x-270x
FOV 34.8-5.1 26.1-3.87 20.9-3.1 13.9-2.1 10.4-1.55 6.9-1 5.2-7.5

The best emoji picker will help you add small colored character images to your text.

Vendors :
HEIScope
SZ05013911
$7.08 $6.00
SZ05013911, View Solutions

HEI-EP-EG HEI Scope Eye Guards (Pair).

+

HEI-EP-W10
$141.53 $70.00

HEI-EP-W10 SZ302101 HEI Scope Series Wide Field 10x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm diameter}.

+

HEI-EP-W15
$153.39 $80.00
HEI-EP-W15 SZ302103 HEI Scope Wide Field 15x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W20
$153.39 $92.50
HEI-EP-W20 SZ302104 HEI Scope Wide Field 20x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W25
$200.44 $105.00
HEI-EP-W25 SZ302105 HEI Scope Wide Field 25x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+

HEI-EP-W30
$224.15 $150.00
HEI-EP-W30 SZ302106 HEI Scope Wide Field 30x Eyepieces (Pair) with Eyecups {Eyepieces Housing of 30mm Diameter}.
+
HEI-AL-03
$129.67 $100.00

HEI-AL-03 HEI Scope Series .3x Auxiliary Lens.

+

SZ19024211
$129.67 $100.00
SZ19024211, View Solutions

HEI-AL-05 HEI Scope Series .5x Auxiliary Lens

+

HEI-AL-07
$129.67 $100.00

HEI-AL-07 HEI Scope Series .75x Auxiliary Lens.

+

HEI-AL-10
$16.00 $12.00

HEI-AL-10 HEI Scope Series Ring Light Adaptor.

+

HEI-AL-15
$165.06 $100.00
HEI-AL-15 HEI Scope Series 1.5x Auxiliary Lens. SZ303104
+

HEI-AL-20
$165.06 $110.00

HEI-AL-20 HEI Scope Series 2x Auxiliary Lens.

+

SZ Stereo Zoom Instruction Manual (SZ_Series_Stereo_Zoom_Microscope_Instruction_Manual.pdf, 224 Kb) [Download]

Fiber Optic Illuminator (HEI-FOI-150_Fiber_Optic_Illuminator_Instruction_Manual.pdf, 185 Kb) [Download]
