HEI-MZC-1.5X HEI Scope 1.5x Zoom Coupler for Micro Zoom inspection station MZ02016161

List price: $224.15
$125.00
You save: $99.15 (44%)
Price in points: 125 points
HEI-MZC-1.5X
+

HEIScope's MZ CCD Coupler standard C-Mount design is suitable to 1/3" CCD Camera, in which three magnifications, i.e. 1.0X, 1.5X, 2.0X adopting with "far-take" optics structure that greatly shortened the length of the system.

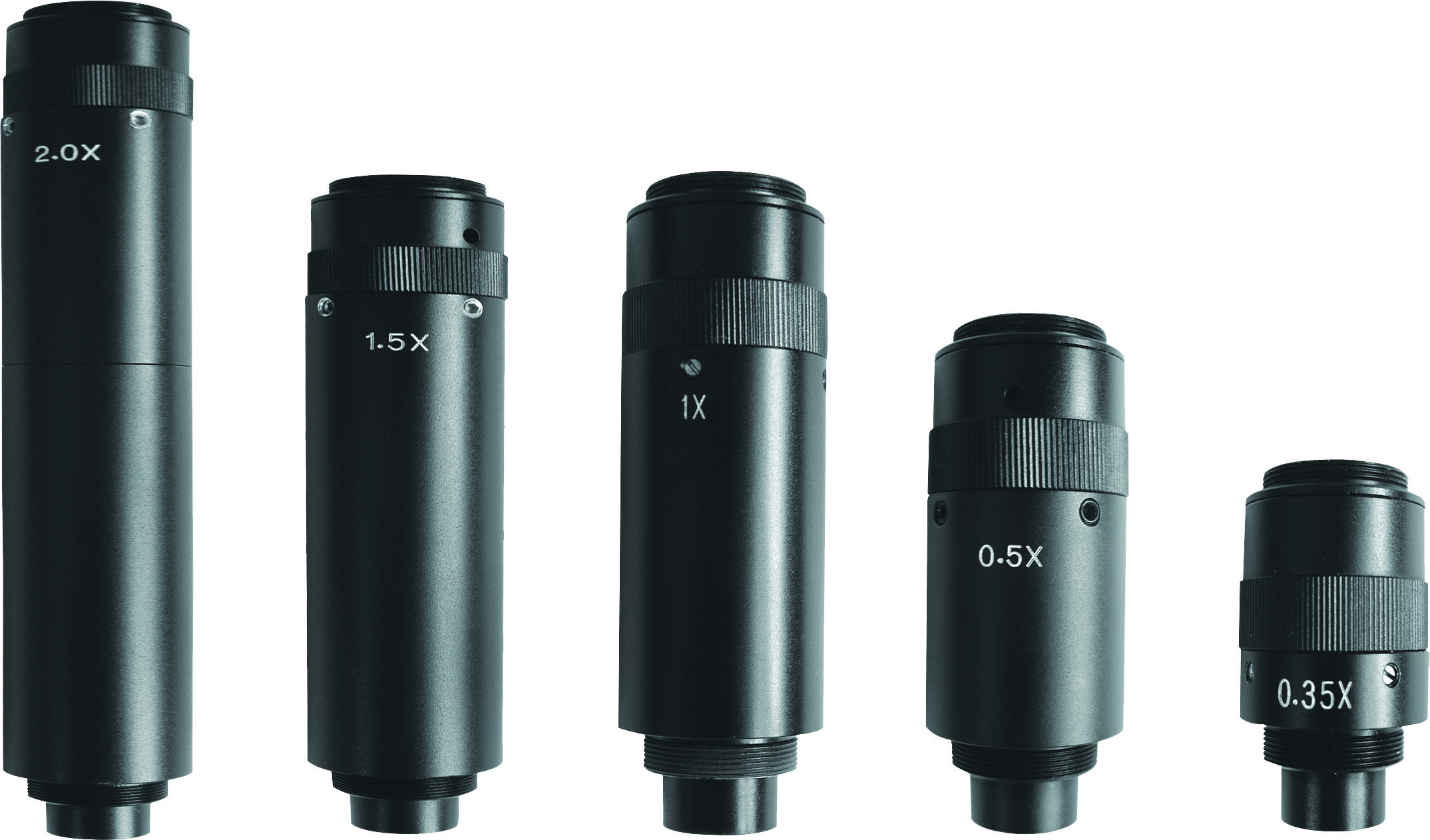

Optional Couplers: HEI-MZC-0.38X, HEI-MZC-0.5X, HEI-MZC-0.75X, HEI-MZC-1.0X, HEI-MZC-1.5X, HEI-MZC-2.0X

Coupler0.38X0.5X0.75X1.0X1.5X2.0X
Focus Distance67mm90mm135mm180mm270mm360mm
Optical Length Approx.76mm97mm103mm130mm189mm252mm
The FOV angle of the objective7.6°7.6°7.6°7.6°7.6°

7.6°

The FOV diameter of the image side≥6.1mm6.1mm6.1mm6.1mm6.1mm6.1mm


Vendors :
HEIScope
Video Coupler :
1.5x
Focus Distance:
270mm
Optical Length Approx.:
189mm
The FOV angle of the objective:
7.6°
The FOV diameter of the image side:
6.1mm
