Save 47%

HEI-MZC-0.38X HEI Scope 0.38X Zoom Coupler for Micro Zoom inspection station MZ02016111

List price: $141.53
$75.00
You save: $66.53 (47%)
Price in points: 75 points
HEI-MZC-0.38X
+

HEIScope's MZ CCD Coupler standard C-Mount design is suitable to 1/3" CCD Camera, in which three magnifications, i.e. 1.0X, 1.5X, 2.0X adopting with "far-take" optics structure that greatly shortened the length of the system.

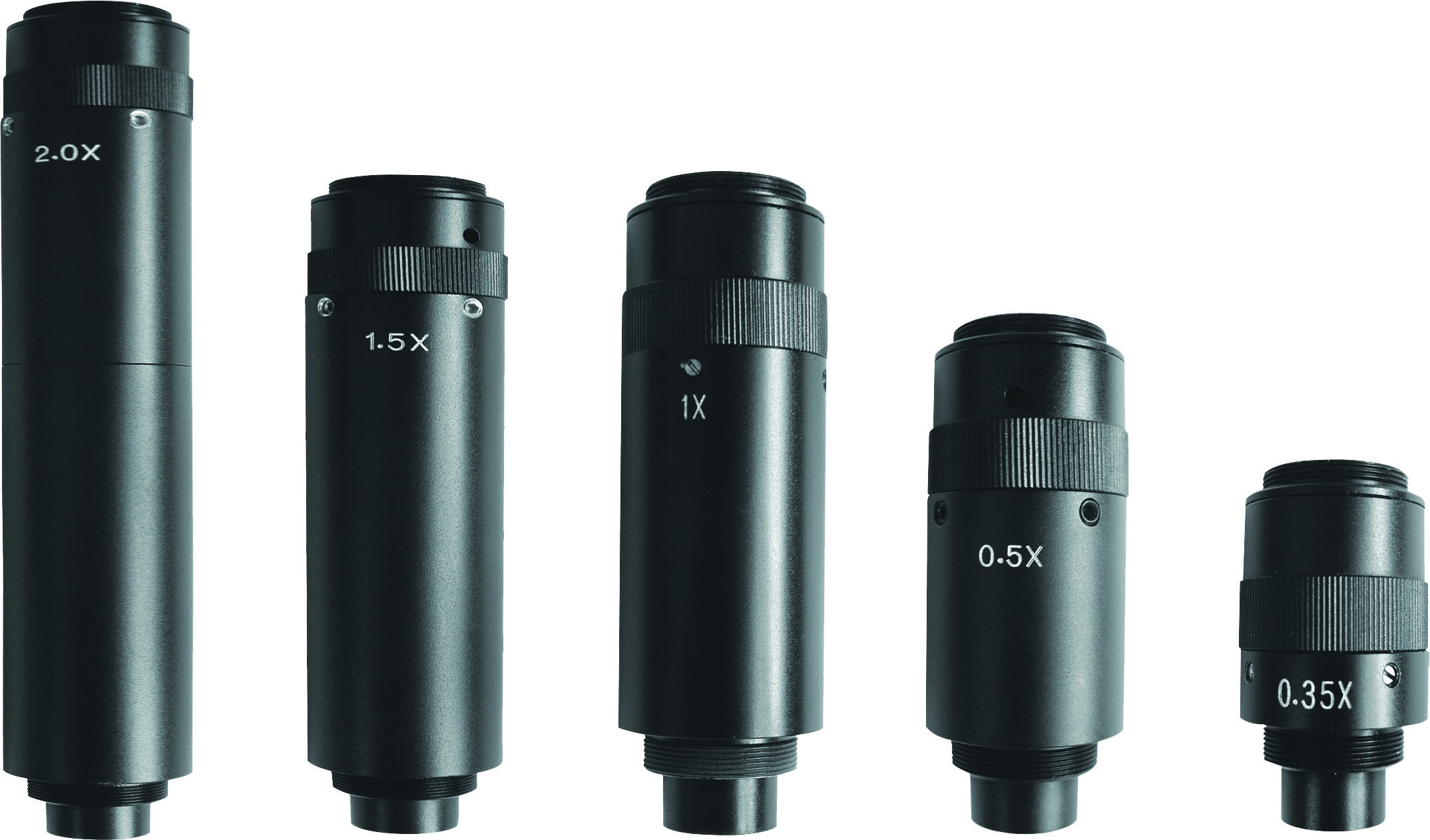

Optional Couplers: HEI-MZC-0.38X, HEI-MZC-0.5X, HEI-MZC-0.75X, HEI-MZC-1.0X, HEI-MZC-1.5X, HEI-MZC-2.0X

Coupler0.38X0.5X0.75X1.0X1.5X2.0X
Focus Distance67mm90mm135mm180mm270mm360mm
Optical Length Approx.76mm97mm103mm130mm189mm252mm
The FOV angle of the objective7.6°7.6°7.6°7.6°7.6°

7.6°

The FOV diameter of the image side≥6.1mm6.1mm6.1mm6.1mm6.1mm6.1mm
Vendors :
HEIScope
Video Coupler :
0.38X
Focus Distance:
67mm
Optical Length Approx.:
76mm
The FOV angle of the objective:
7.6°
The FOV diameter of the image side:
6.1mm
