Save 21%

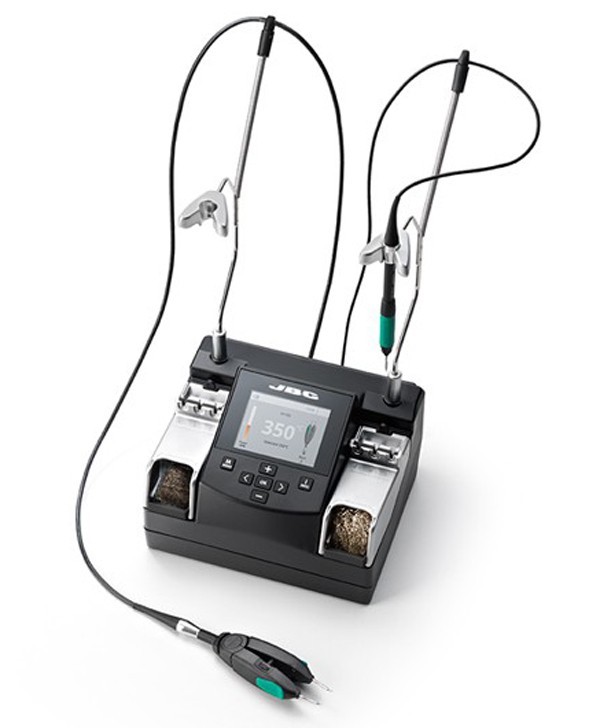

JBC Tools NASE-1C Nano Rework Station

NASE-1C JBC Tools Nano Rework Soldering and Tweezer Station

List price: $1,600.00
$1,272.00
You save: $328.00 (21%)
Price in points: 1272 points
NASE-1C
+

JBC Tools NASE-1C Nano Rework Station is the best solution to repair very small-sized components at high precision such as chips 0402, 0201, 01005, etc. Can be Purchased in 120 or 230 volts.

JBC Tools NASE-1C Nano Rework Station

The NASE-1C JBC Tools Nano Rework Station works simultaneously with the NT115-A Nano Handpiece and the NP115 Steady Nano Tweezers.

NASE-1C JBC Tools Nano Rework Station

The NASE-1C Nano Rework Station TFT Screen (Thin Film Transistor) and Capacitive Keyboard Control unit featuring digital read-out that allows precise temperature and tool control. The JBC Tools NASE-1C incorporates the JBC Tools Exclusive Heating System and the intelligent Seep and Hibernation features. Using the JBC Tools NASE-1C menu you can personalize over 20 parameters to help manage the soldering process. It works simultaneously with NT115-A Nano Soldering Iron and NP115-A Nano Tweezers. The short distance between the tip and the handle offers maximum control even using a microscope.

JBC Tools NASE-1C Nano Rework Station Includes

Control Unit: NAE-1C with tip cleaning system
Tools: NT115-A Nano Soldering Handpiece and NP115-B Steady Nano Tweezers
Cartridges Included: C115101 x1 - C115103 x1 - C115105 x2 - C115107 x1 - C115112 x1 - C115113 x2.
Accessories: 0016079 Sleeves for NP115, A1205 Extension Lead for Nano Stations, P-005 Pedal

JBC Tools NASE-1C Nano Rework Station Specifications

Weight 1.8 kg (9.0 lb)
Dimensions 170 x 90 x 135 mm
Voltage 120V / 230V / 100V
Input Fuse 0.5A / 0.2A / 0.5A
Output Peak Power 14W per tool
Temperature selection 90-450 ºC (190-840 ºF)
Idle temp. stability (still air) ±3 ºC (±5.5 ºF)
Tip to ground resistance <2 ohms
Ambient operating temp. 10-40 ºC (50-104 ºF)
Communication connectors USB-A / USB-B / Pedal
Robot connector RJ12 for RS-232 protocol
ESD safe
Package weight 2.25 kg (4.96 lb)
Package dimensions 276 x 276 x136 mm

Purchase a JBC Tools NASE-1C Nano Rework Station sold by Howard Electronics Today!

ESD Safe:
Yes
Package weight:
10
Vendors :
JBC Tools
Weight:
1.8 kg (4.0 lb)
Input Fuse:
0.5A / 0.2A / 0.5A
Output Peak Power:
14W per tool
Temperature Selection:
90-450 ºC (190-840 ºF)
Idle temp. stability (still air):
±3 ºC (±5.5 ºF)
Ambient operating temp.:
10-40 ºC (50-104 ºF)
Communication connectors:
USB-A / USB-B / Pedal
Tip to ground resistance:
<2 ohms
