Save 15%
CS-1E JBC Tools Micro Desoldering Station

CS-1E JBC Tools Micro Desoldering Station with Electric Pump

List price: $1,390.00
$1,181.00
You save: $209.00 (15%)
Price in points: 1181 points
CS-1E
+

JBC Tools CS-1E is a Micro Desoldering Station with an electric pump and JBC Advanced system for precision electronic applications.

JBC Tools CS-1E Series Micro Desoldering Station with Electric Pump

JBC Tools CS-1E Micro Desoldering Station works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. JBC Tools CS-1E incorporates a USB connector (type B) to update station software and create graphs.

JBC Tools CS-1E Micro Desoldering Station

The CS-1E JBC Tools Micro Desoldering Station with Electric Pump has a complete cleaning system with an antisplash membrane to keep the work area clean. The JBC Tools CS-1E uses the integrated wiper to remove excess solder from the tip. JBC Tools CS-1E Micro Desoldering Station is equipped with the MS-A Electric Pump and works with the comfortable DS360 Micro Desoldering Iron and C360 Cartridge.

CS-1E JBC Tools Micro Desoldering Station Includes

Control Unit: CS with Tip Cleaning System, and MS-A Electric Desoldering Pump
Tools:
DS360-A Micro Desoldering Iron
Cartridges: C360-004
Consumable: S0354, CL6210

JBC Tools CS-1E Micro Desoldering Station Specifications

Weight 2.8 kg (6.2 lb) (station)
Size 150 x 175 x 145 mm (station)
Voltage (AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 40W / 23.5V
Temperature selection 180-450 ºC / 356-840 ºF
Ambient operating temp. 10-40 ºC / 50-104 ºF
Tip to ground resistance <2 ohms
Vacuum 75% / 570 mmHg / 22.4 inHg
Flow rate 9 SLPM
USB connector station-PC
ESD Safe
Package weight 5.1 kg (11.3 lb)
Package dimensions 330 x 260 x 305 mm

Purchase a JBC Tools CS-1E Micro Desoldering Station with Electric Pump sold by Howard Electronics Today!

ESD Safe:
Yes
Package dimensions:
330x260x305 mm
Package weight:
5.1 kg (11.3 lb)
Part No.:
CS-1D
Vacuum (MSE-A):
75% / 570mmHg / 22.4inHg
Vendors :
JBC Tools
Weight:
2.8 kg (6.2 lb) (station)
Input Fuse:
2A
Output Peak Power:
40W / 23.5V
Ambient operating temp.:
10-40 ºC / 50-104 ºF

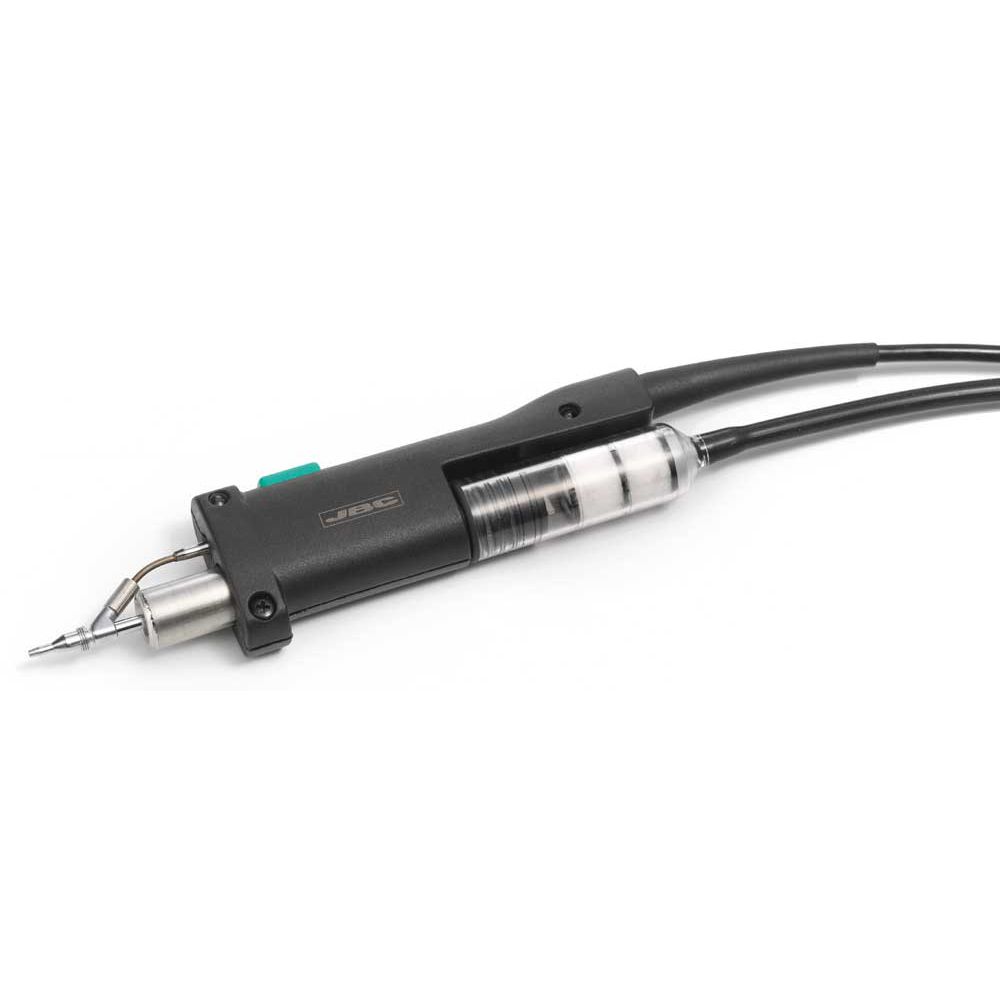

DS360-A
$525.00 $510.00

DS360-A JBC Micro Desoldering Wand for MS-A and MV-A

+
Price in points: 510 points
C360-001
$10.50 $9.10

JBC C360-001 Micro Desoldering Tip 0.6mm ID

+
Price in points: 10 points

C360-002
$10.50 $9.10

JBC C360-002 Micro Desoldering Tip 0.8mm ID

+
Price in points: 10 points

C360-003
$10.50 $9.10

JBC C360-003 Micro Desoldering Tip 1.0mm ID

+
Price in points: 10 points

C360-004
$10.50 $9.10

JBC C360-004 Micro Desoldering Tip 1.2mm ID

+
Price in points: 10 points

C360-006
$10.50 $9.10

JBC C360-006 Micro Desoldering Tip 1.5mm ID

+
Price in points: 10 points

C360-007
$10.50 $9.10

JBC Tools C360-007 Micro Desoldering Tip

+
Price in points: 10 points

C360-011
$14.50 $13.50

JBC Tools C360-011 Micro Desoldering Tip

+
Price in points: 14 points

C360-012
$14.50 $13.50

JBC C360-012 Micro Desoldering Tip

+
Price in points: 14 points

C360-013
$14.50 $13.50

JBC C360-013 Micro Desoldering Tip

+
Price in points: 14 points

C360-014
$14.50 $13.50

JBC C360-014 Micro Desoldering Tip

+
Price in points: 14 points

CS-D Manual (CS-D_MANUAL.pdf, 4,416 Kb) [Download]
