Goot TP-100AS Desoldering Tool

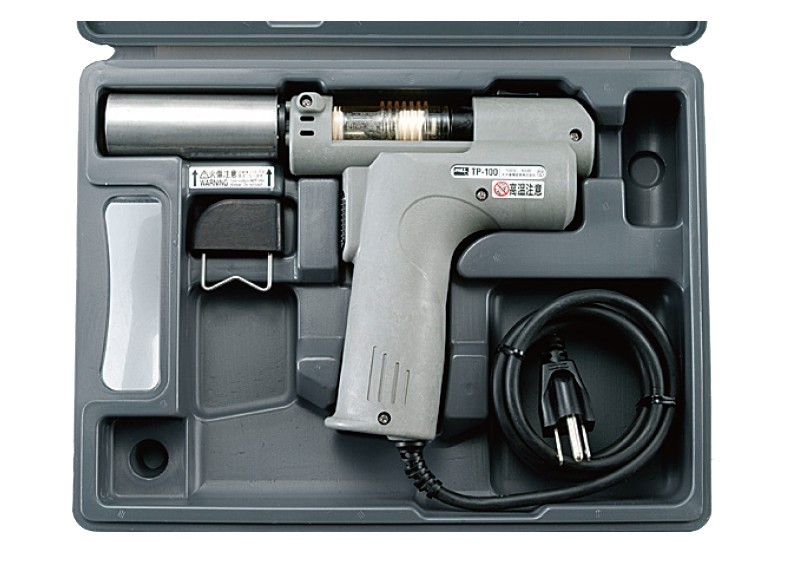

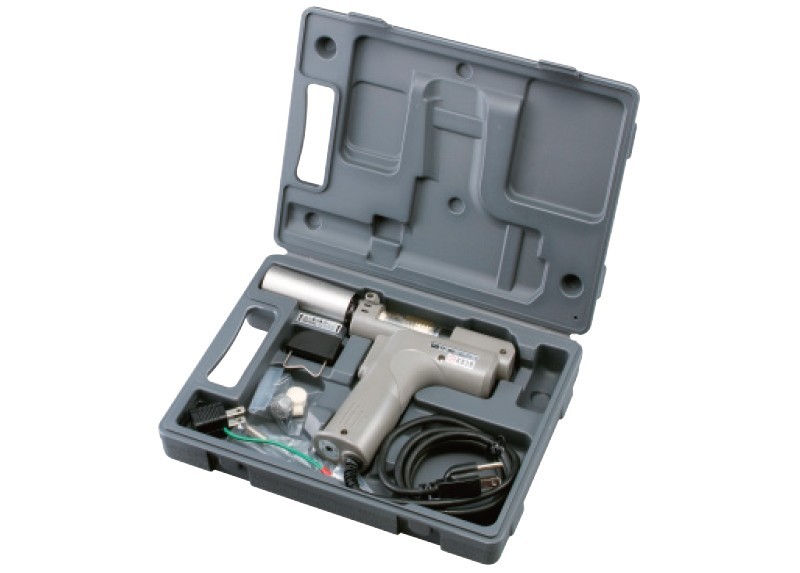

TP-100AS Goot Portable Desoldering Gun with Case

List price: $420.00
$225.00
You save: $195.00 (46%)
Price in points: 225 points
TP-100AS
+

Goot TP-100AS Portable Desoldering Gun sold by Howard Electronics

Goot TP-100AS ESD-Safe Desoldering Gun with in built vacuum pump and temperature control. The Goot TP-100AS desoldering gun is equipped with 80 watt ceramic heater. Goot TP-100AS desoldering tool allows to control temperature in the range of 250-450 Degree Celsius. High mass nozzle and powerful vacuum system melts and sucks solder quickly and efficiently.

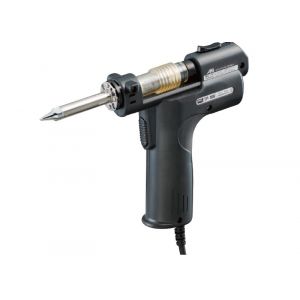

Goot TP-100AS Desoldering Gun Tool with Stand

Compact design with an internal motor, pump, and temperature-control circuit built into the grip. Portable and efficient.

Goot TP-100AS Desoldering Tool Specifications

1. Powerful Vacuum: Maximum vacuum of –0.08Mpa (-600mmHg). Removes through-hole solder easily.
2. Variable Temperature Setting: Sensor feedback system allows temperature setting from 250-450°C.
3. Replaceable Cartridge Filter: Makes changing the filter easy
4. Powerful Vacuum: Everything from through-hole to multi-layered PCB
5. Ceramic Heater with Internal Sensor: A wide range for terminals, connectors and flat ICs.
6. Zero Volt Switch Circuit: Reduces noise during heater ON/OFF

Goot TP-100AS Desoldering Tool Features

MODEL TP-100 TP-100AS
Voltage 110–130V, 220–240V AC 50/60Hz
Power Consumption 80W (110-130V), 70–75W (220-240V)
Power Cord Length 1.5m
Temperature Setting Range 250–450˚C
Insulation Resistance Over 100MΩ(500V DC)
Vacuum Pump System Diaphragm system
Vacuum - 0.08MPa (-600mmHg)
Heater Ceramic Heater
Standard Nozzle TP-100N-10
Accessories Cleaning pin TP-100CP-07/ Filter TP-100F
Carry case
Heat resistant pipe /Stand
Dimensions 225×170 mm
Weight 470g (w/o cord)


Purchase a Goot TP-100AS Portable Desoldering Gun Today.

Part No.:
TP100AS
Vendors :
Goot
Weight:
470g (w/o cord)
Temperature Selection:
250–450˚C
Power Cord:
1.5m

Desoldering

Vacuum :
- 0.08MPa (-600mmHg)
Vacuum Pump System:
Diaphragm system
A4500AZ00
$35.37 $30.00

A4500AZ00 Goot TP-100AS Housing Set

+
Price in points: 30 points

B4502AH00
$41.11 $35.00

B4502AH00 Goot TP-100H Heater 110V

+
Price in points: 35 points

TP-100HP
$25.81 $22.00

A4500DM00 Goot TP-100HP Heater Pipe Assembly

+
Price in points: 22 points

A4500BD00
$10.00 $7.00

A4500BD00 Goot TP100 Stand

+
Price in points: 7 points

A4500CR00
$11.66 $10.00

A4500CR00 Goot TP-100SK Slide Knob & holder assembly

+
Price in points: 10 points

W0002SM00
$11.67 $10.00

W0002SM00 Goot TP-100 Trigger Switch W/Lead UL

+
Price in points: 10 points

W0415EP03
$17.60 $15.00

W0415EP03 Goot TP-100 Power Cord UL

+
Price in points: 15 points

A4500CG00
$8.80 $7.50

A4500CG00 Goot TP-100 Trigger Black

+
Price in points: 8 points

A4500CJ00
$7.07 $6.00

A4500CJ00 Goot TP-100 Front holder

+
Price in points: 6 points

A4500CM00
$7.07 $6.00

A4500CM00 Goot TP-100 valve holder

+
Price in points: 6 points

A4500CP00
$4.59 $4.00

A4500CP00 Goot TP-100 valve

+
Price in points: 4 points

TP-100F
$5.74 $5.00

B4502AW00 Goot TP100F Felt Filter Set

+
Price in points: 5 points

B4502BR00
$5.74 $5.00

B4502BR00 Goot TP100K Cartridge

+
Price in points: 5 points

TP-100S
$5.74 $5.00

TP-100S Goot Spacer for TP100AS

+
Price in points: 5 points

A4500CX00
$4.59 $4.00

A4500CX00 Goot TP-100 SILICONE TUBE

+
Price in points: 4 points

T0001CC00
$0.57 $0.50

T0001CC00 Goot TP-100 Trigger Spring

+
Price in points: 1 point

T0013C00
$4.59 $4.00

T0013C00 Goot Inner support coil spring

+
Price in points: 4 points

T0206SJ00
$0.24

T0206SJ00 GOOT TP100AS Screw for Flange M3X6

+
Price in points: 1 point

T0325SJ00
$0.38 $0.35

T0325SJ00 Goot Screw M3x25

+
Price in points: 1 point

T0335SJ00
$0.38 $0.35

T0335SJ00 Goot Screw M3x35

+
Price in points: 1 point

T0030NB00
$0.15

T0030NB00 Goot Screw Nut M3

+
Price in points: 1 point

T0306SJ00
$0.24

T0306SJ00 Goot Screw M3x6

+
Price in points: 1 point
TP-100N-08
$29.45 $25.00

TP-100N-08 Goot 0.8mm DesolderingTip Standard

+
Price in points: 25 points

TP-100N-10
$29.45 $25.00

TP-100N-10 Goot 1.0mm Desoldering Tip Standard

+
Price in points: 25 points

TP-100N-25
$29.45 $25.00

TP-100N-25 Goot 2.5mm Desoldering Tip

+
Price in points: 25 points

TP-100N-S1
$29.45 $25.00

TP-100N-S1 Goot 1.0mm Slim Desoldering Tip

+
Price in points: 25 points

TP-100N-S5
$29.45 $25.00

TP-100N-S5 Goot 1.5mm Slim Desoldering Tip

+
Price in points: 25 points

TP-100N-S8
$29.45 $25.00

TP-100N-S8 Goot 0.8mm Slim Desoldering Tip

+
Price in points: 25 points

B4532BL00
$4.59 $4.00

B4532BL00 Goot Cleaning Pin d=0.7mm

+
Price in points: 4 points

B4532BN00
$4.59 $4.00

B4532BN00 TP-100CP-13 Cleaning Pin d = 1.3mm

+
Price in points: 4 points

TP-100AS Manual (TP-100AS_Manual.pdf, 5,018 Kb) [Download]
